Commuter System

05-07 FORD F250/350 4X4 DIESEL 4.5" LIFT COMMUTER SYSTEM

Brand: Carli Suspension

Part No: CS-F45-COM-CS-05

F-250 & F-350 Lift Height = 4.5″
The Super Duty Commuter 2.0 system is designed for people seeking the best on-road ride quality that don’t plan to off-road their vehicle beyond low-speed trail driving. Utilizing Carli SPEC 2.0″ Diameter, Internal Reservoir shocks, we’ve developed a tune that delivers all-around comfort and ride quality designed for on-road, in town, highway, and towing/hauling.

Ford 4.5" Commuter 2.0 System, 2005-07, Carli SPEC

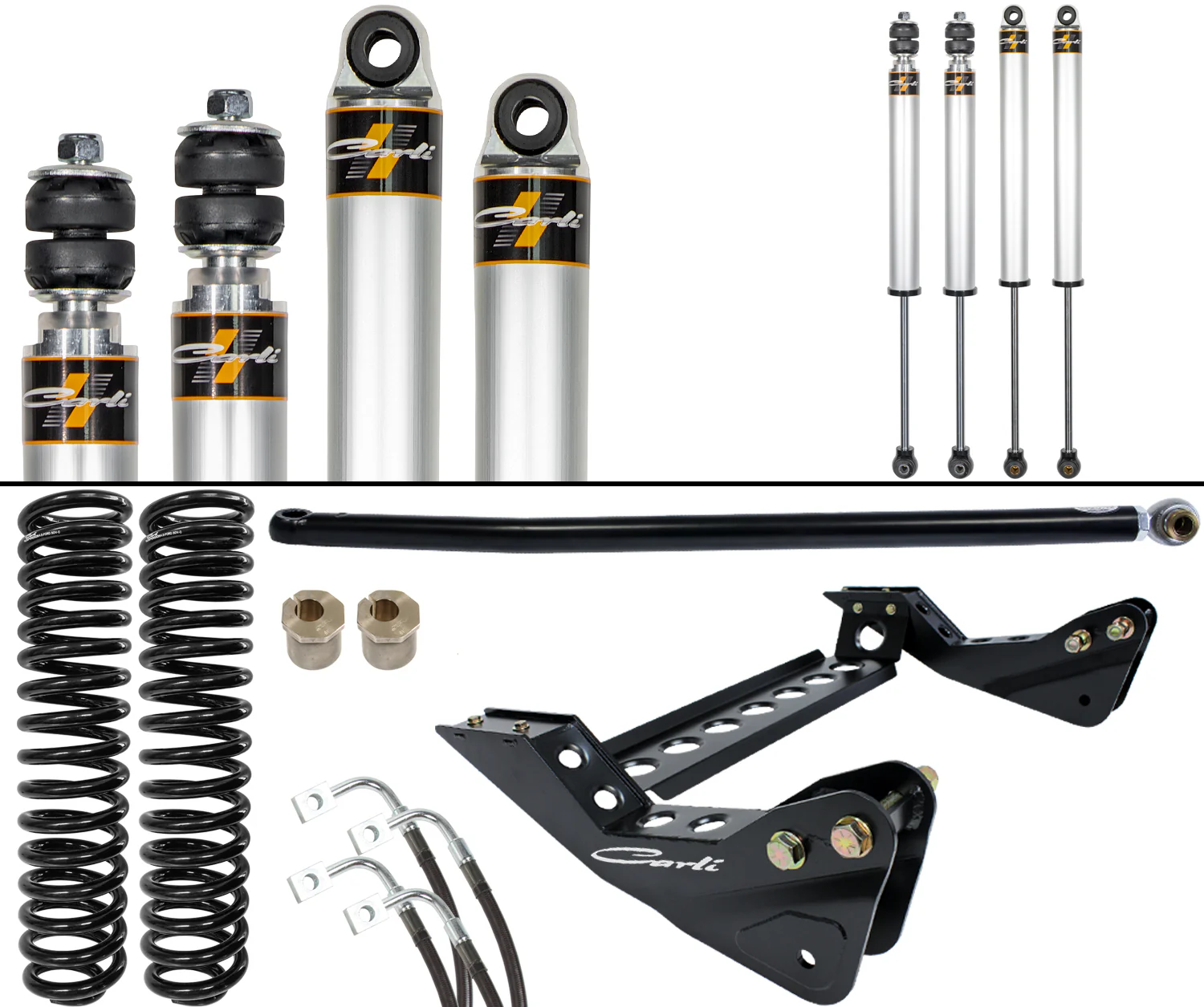

Base Kit Includes:

• CS-FMRC-05 Multi-Rate Coils
• AS-F45SPKG-CS20IFP-A Carli SPEC 2.0" IFP Shocks, Front and Rear
• CS-FBLT-05 Brake Line Tabs
• CS-FORDBBL-05 Brake Lines
• CS-FRAD-05 Radius Arm Drops
• CS-FBDF-05-4.5 Bump Stop Drops
• CS-FCASTERSHIM-4.5 1° Caster Shims
• CS-FPRB-05 Track Bar

Sway Bar End Links Option

• 05-07 FORD F250/350 4X4 EXTENDED SWAY BAR END LINK - 4.5" LIFT

Rear Spring Option

• 05-07 FORD F250/350 4X4 PROGRESSIVE ADD-A-PACK
• 05-07 FORD F250/350 4X4 FULL PROGRESSIVE LEAF SPRING KIT - 3" LIFT

Carrier Bearing Drop Option

• 05-23 FORD F250/350 4X4 CARRIER BEARING DROP

Long Travel Airbags Option

• 05-07 FORD F250/350 4X4 LONG TRAVEL AIR BAG SYSTEM - 4.5" LIFT

Low Mount Steering Stabilizer Option

• 05-22 FORD F250/350 4X4 LOW MOUNT STEERING STABILIZER KIT - WITH DIFFERENTIAL GUARD

Fabricated Radius Arms Option

• 05-22 FORD F250/350 4X4 FABRICATED RADIUS ARMS - 4.5"/5.5" LIFT

Description

The Super Duty Commuter 2.0 system is designed for people seeking the best on-road ride quality that don’t plan to off-road their vehicle beyond low-speed trail driving. Utilizing Carli SPEC 2.0″ Diameter, Internal Reservoir shocks, we’ve developed a tune that delivers all-around comfort and ride quality designed for on-road, in town, highway, and towing/hauling.

The mono-tube, internal reservoir, Carli SPEC 2.0 boasts 6063 Aluminum construction, anodized body for corrosion resistance, 5/8″ hardened steel chrome plated shaft, full serviceability & buildability and are built with 1-peice bushings in the 6061 billet rod-ends. These shocks are spec’d with a premium 5WT oil to balance lubricity, consistent damping and the widest available range in temperature variation. We back these with a 1-year warranty, serviced by Carli. More details on these shocks can be found HERE.

The truck will sit 4.5” higher in the front and have more wheel travel thanks to the taller, Progressive Rate Coil Springs. Radius Arm Drop Brackets reset the pivot point and keep the travel linear for the best ride while Sway Bar Links or Drop Brackets reset the sway bar engagement point. Bump Stop Drops protect the shocks from over-compressing, the Adjustable Track Bar centers the front axle and Stainless Brake Lines firm up braking and ensure there is enough line for the newfound travel. To round off the front end, we include Caster Shims to tighten the steering.
