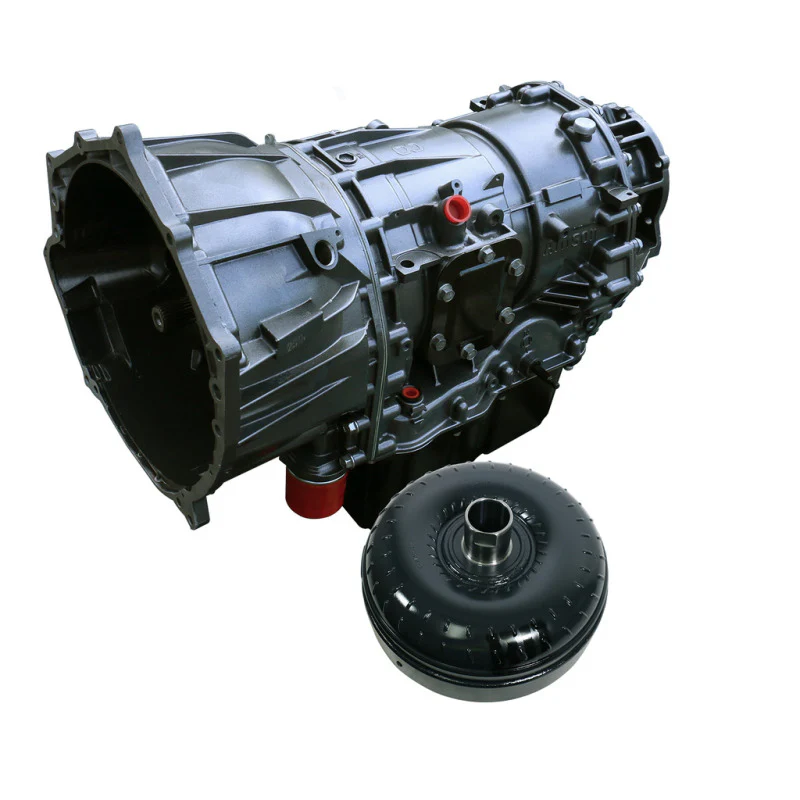

Transmission

This upgraded transmission is engineered to significantly increase the durability and reliability of your drivetrain. It features a BD aluminum heavy-duty deep transmission pan, which increases oil capacity by 3.5 quarts to improve cooling and fluid stability under load.

Internal upgrades include high-energy clutch material, revised oil circuits, and a new torque converter lock-up valve designed to increase lock-up pressure. Updated A and B trim valves deliver full line pressure to the clutches, improving holding power and consistency. Clutch capacity is substantially increased across the transmission with the following configurations: C1 – 8 clutches (14% increase over stock), C2 – 7 clutches (17% increase), C3 – 6 clutches (50% increase), C4 – 7 clutches (17% increase), and C5 – 7 clutches (17% increase).

Every transmission is dyno tested to verify proper operation and performance before delivery.

Torque Converter

The torque converter features an enhanced stall speed optimized for street and towing applications. Torque-multiplying cast aluminum stators provide improved low-RPM response compared to the stock converter, resulting in more efficient operation, reduced heat, and improved fuel economy.

A stamp-forged steel front cover increases strength and durability, while furnace-brazed fins reduce internal leakage and improve fluid coupling efficiency. The converter includes up to three times the amount of lock-up clutch material compared to stock for increased holding power and long-term reliability.

Warranty

This transmission and torque converter package is backed by a 36-month or 150,000-mile parts warranty, along with 12 months or 24,000 miles of labor coverage.

This Part Fits:



Year	Make	Model	Submodel
2007-2010	Chevrolet	Silverado 2500 HD	LT
2007-2010	Chevrolet	Silverado 2500 HD	LTZ
2007-2010	Chevrolet	Silverado 2500 HD	WT
2007	Chevrolet	Silverado 3500 Classic	LS
2007	Chevrolet	Silverado 3500 Classic	LT
2007	Chevrolet	Silverado 3500 Classic	WT
2007-2010	Chevrolet	Silverado 3500 HD	LT
2007-2010	Chevrolet	Silverado 3500 HD	LTZ
2007-2010	Chevrolet	Silverado 3500 HD	WT
2007-2010	GMC	Sierra 2500 HD	SLE
2007-2010	GMC	Sierra 2500 HD	SLT
2007-2010	GMC	Sierra 2500 HD	WT
2007-2010	GMC	Sierra 3500 HD	SLE
2007-2010	GMC	Sierra 3500 HD	SLT
2007-2010	GMC	Sierra 3500 HD	WT
