BD Diesel

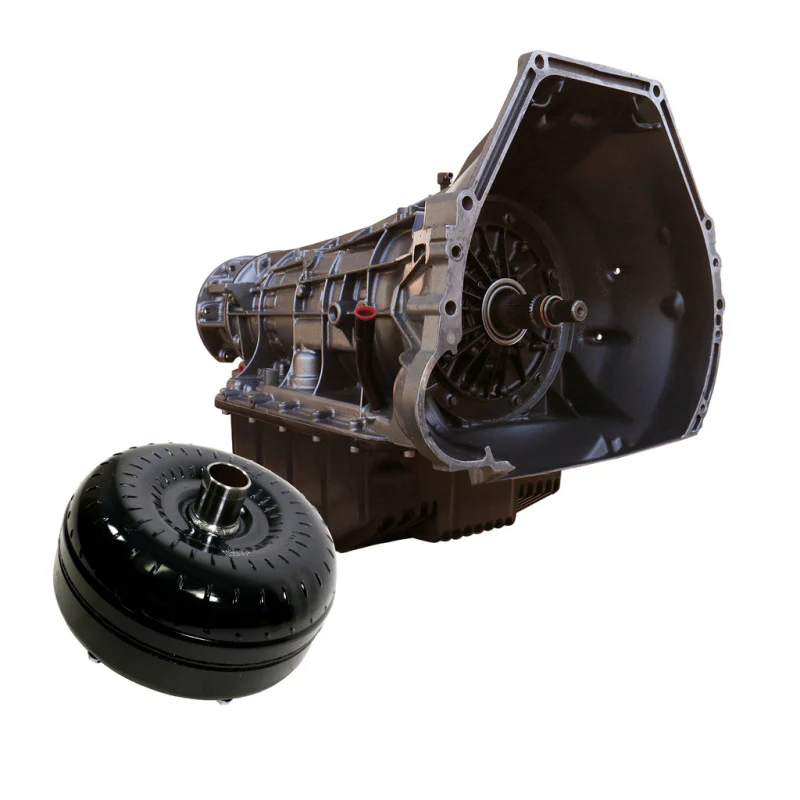

Transmission Features

• Built to increase the durability of your drivetrain

• BD aluminum HD deep transmission pan

  • Adds 6 quarts of additional fluid capacity

  • Improves cooling and overall transmission longevity

• Recalibrated accumulator body for quicker, firmer shifts

• Full shift kit with line mod valve to increase line pressure

• Increased pressure to the torque converter for improved clutch apply

• Added lube circuits to the overdrive planetary

• Added lubrication and support to output and intermediate shafts

• Drilled and tapped direct and intermediate feeds to prevent case leaks

• Upgraded overdrive snap ring for added strength

• Machined center support

• Reworked front pump for improved efficiency

• Fully rollerized geartrain

• Every transmission is dyno tested before shipping

Clutch Counts

• Coast Clutch: 2

• Forward: 5

• Low Reverse: 7

• Intermediate: 4

• Overdrive: 4

Torque Converter Features

• Enhanced stall design for street and towing applications

• Torque multiplying cast aluminum stators

• Lower RPM response compared to stock

• More efficient operation with reduced heat and improved fuel economy

• Stamp forged one piece steel front cover

• Furnace brazed fins

• Up to three times the lock up clutch material compared to stock

Warranty

• Parts: 36 months or 150,000 miles

• Labor: 12 months or 24,000 miles

Core Charge Option 1: Customer to send in core to receive product

Core Charge Option 2: Additional payment is sent in, new products are delivered, additional payment is returned when core is received.

SEE CORE RETURN POLICY
