BD Diesel Ford F250 08-10 6.4L 4WD 5R110 Transmission And Converter Package

This transmission is designed to handle the output of the stock engine but with increased durability from the upgraded snap ring, pressure regulator valve, and aluminum plugs. The common issues, including the run-away reverse pressure, gear slips, and case lug blow out are solved with these upgrades. The deep sump pan allows for more fluid capacity and better cooling. Great for those with stock trucks looking to replace their transmission.

Key Features:

TRANSMISSION

• Upgraded hardened steel Pressure Regulator Valve prevents run-away reverse pressure, case lug blow out, and gear slipping
• Upgraded larger late model sump filter installed for better filtration
• Machined front pump to prevent cross leaks
• Upgraded converter clutch regulator spring increases Torque Converter Clutch apply pressure
• Aluminum pressure plugs in Valve Body replace stock plastic pressure plugs preventing blow out
• BD aluminum Deep Sump Oil Pan allows for an additional 6qt of fluid capacity and better cooling
• Heavy duty low/reverse snap ring

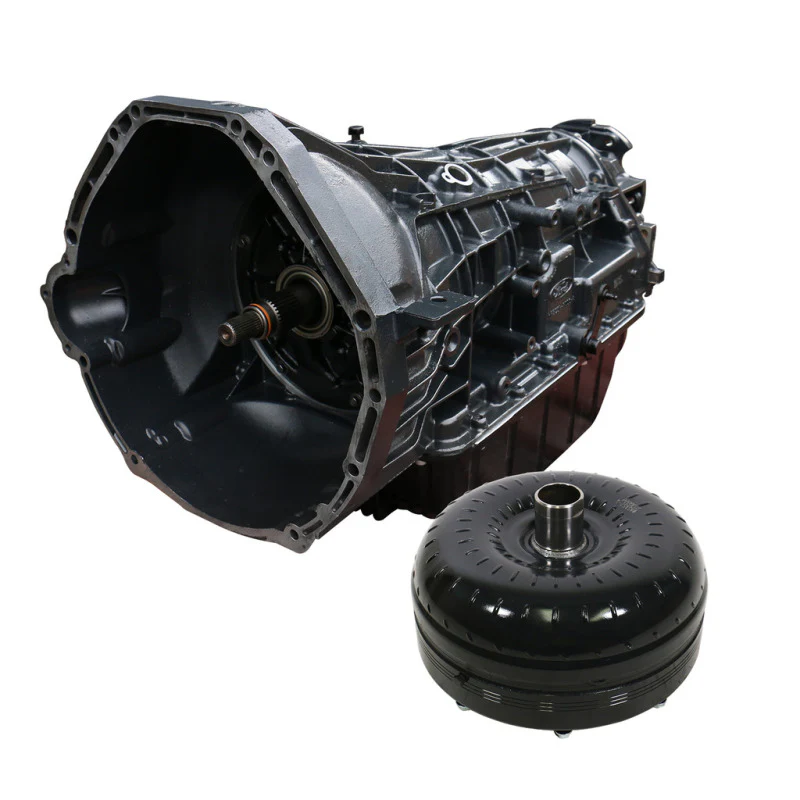

• Package Includes ProForce Torque Converter

BD PROFORCE TORQUE CONVERTER

• Billet Steel Cover
• Enhanced Stall Stator
• Furnace Brazed Turbine for increased strength and lower RPM response

Core Charge Option 1: Customer to send in core to receive product

Core Charge Option 2: Additional payment is sent in, new products are delivered, additional payment is returned when core is received.

SEE CORE RETURN POLICY
