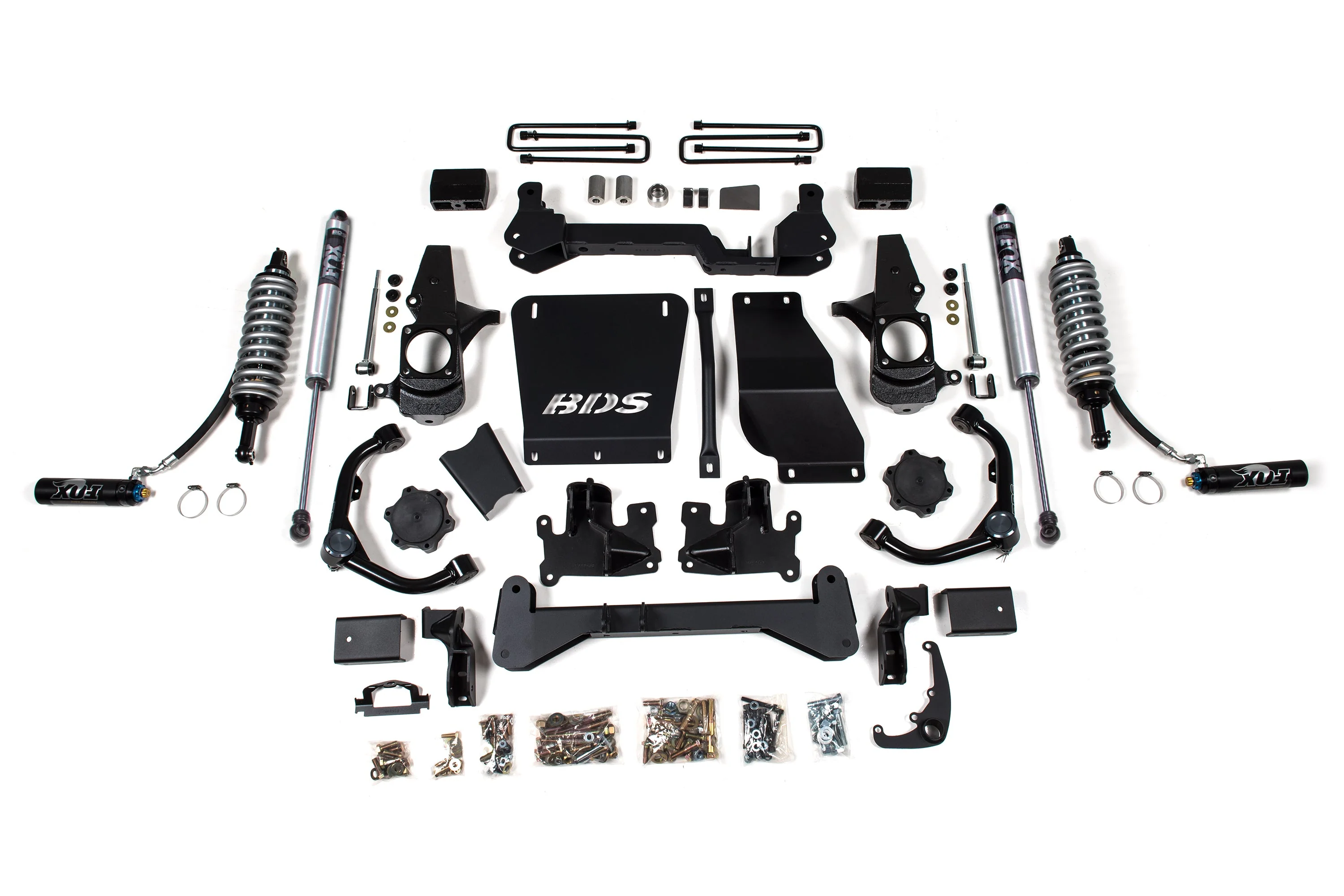

Empower your 2001-2010 Chevy Silverado or GMC Sierra 2500 HD truck with BDS's 4.5-inch lift kit and FOX 2.5 Coil-Over conversion. Enjoy improved stance, performance, and capability with this all-inclusive kit, complete with everything needed to give your truck clearance for up to 33" tires.

Utilizing FOX 2.5 coil-over shocks designed specifically for maximum travel and comfort both on and off the road, this kit also features high-arched 1/4-inch steel crossmembers, heavy-duty tubular upper control arms, and heavy-duty skid plates for added off-road protection. Steering geometry is corrected with CNC-machined ductile iron steering knuckles and additional components such as sway bar drops, bump stop extensions, and brake line brackets are included for a comprehensive front suspension lift. In the rear, choose between a replacement lift block or full Glide-Ride leaf spring option, both of which retain ride quality



FOX 2.5 Coil-Overs

FOX 2.5 coil-overs offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter coil-overs are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain.

HD Upper Control Arms (UCAs)

Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
