4-Inch Lift Kit w/ 4-Link for 2005-2007 Ford F-250/F-350 Super Duty 4WD Diesel

4-Inch Lift Kit w/ 4-Link for 2005-2007 Ford F-250/F-350 Super Duty 4WD Diesel

Enhance your 2005-2007 Ford F250 and F350 Super Duty diesel truck with this 4-inch lift kit and 4-Link upgrade from BDS Suspension. Elevate your truck's stance, performance, and capabilities with this all-inclusive kit that provides ample clearance for up to 35" tires.Ā

The front of the kit features diesel-specific Pro-Ride coil springs, 4-link control arms with conversion brackets, a forged drop pitman arm and track bar bracket for improved steering, relocated sway bar, brake line brackets, and precision-tuned nitrogen charged shocks.

In the rear, the base kit includes a durable lift block, longer u-bolts, and a matching set of NX2 Nitro or FOX Performance shocks.

Ā

4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Ā

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Ā

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy-duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Ā

Rear Lift Option

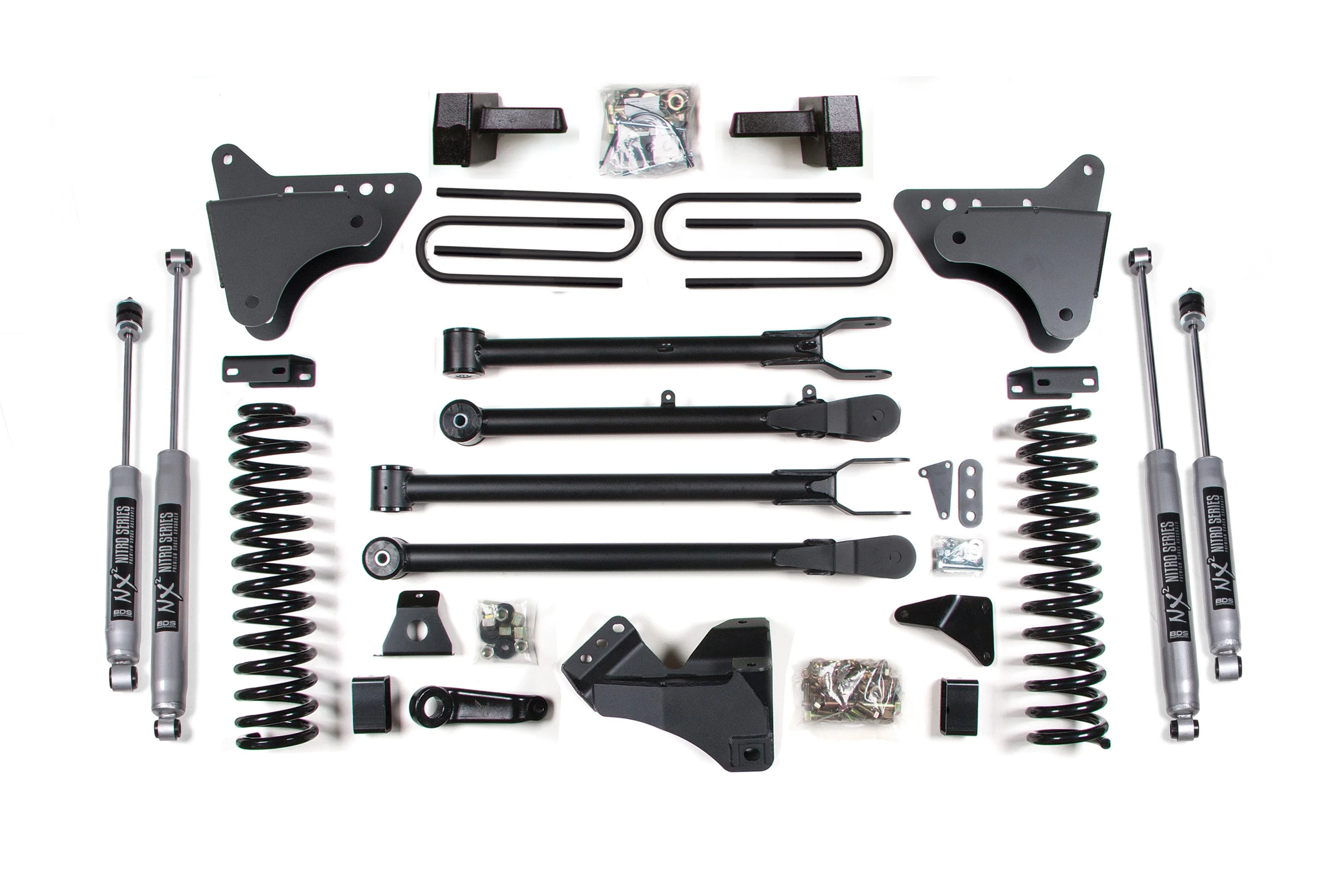

Block Kit
  • Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs.Ā
  • Blocks made of steel for high strength.
  • Designed to provide correct pinion angles.

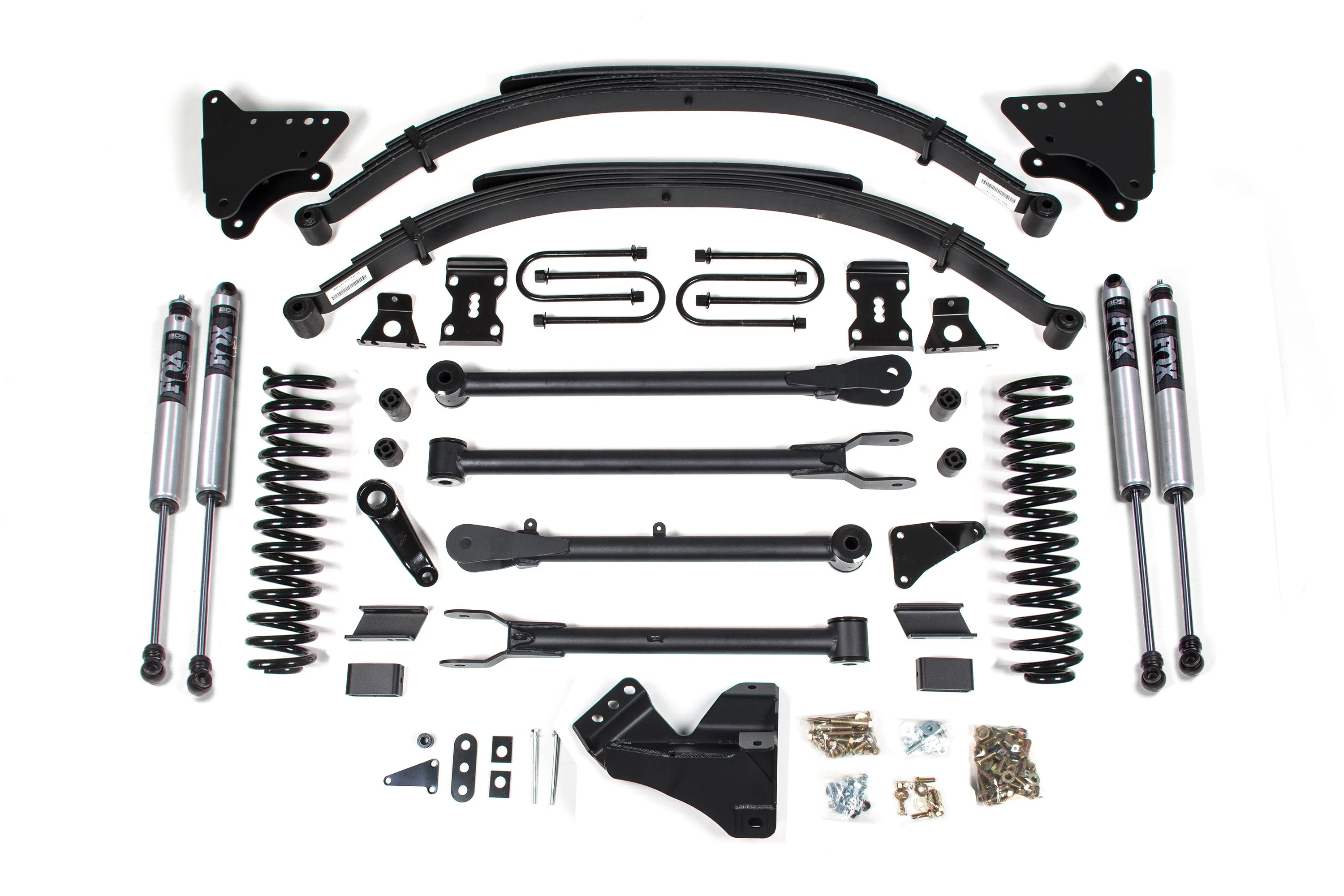

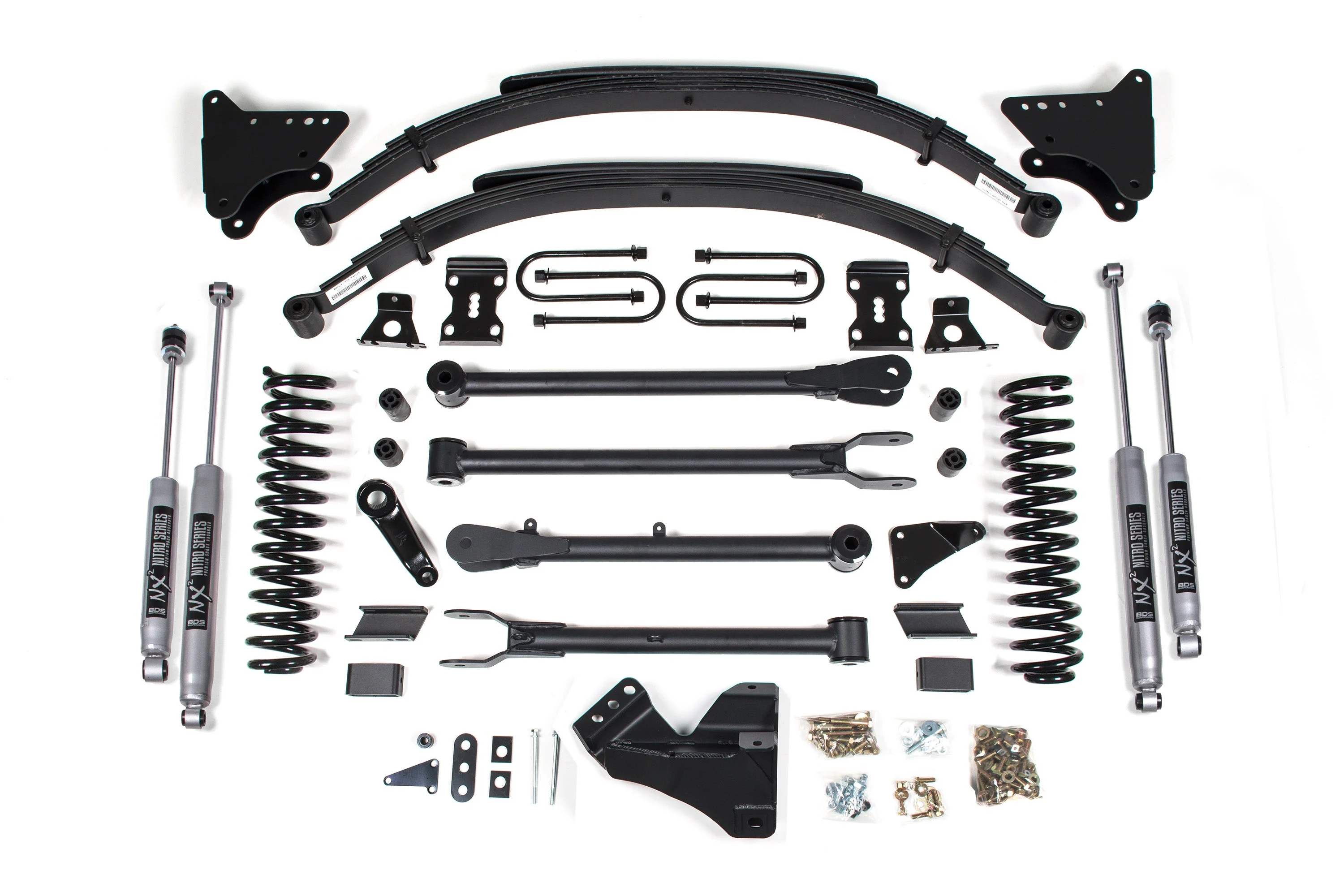

Leaf Springs
  • Eliminates any need for a lift block.
  • Reduces axle wrap and creates a more controlled and stable feel.
  • Multi-leaf progressive design for a smooth ride.
  • Maintains factory payload weight ratings.

Ā

Shock Option
NX2 Nitro Series
  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

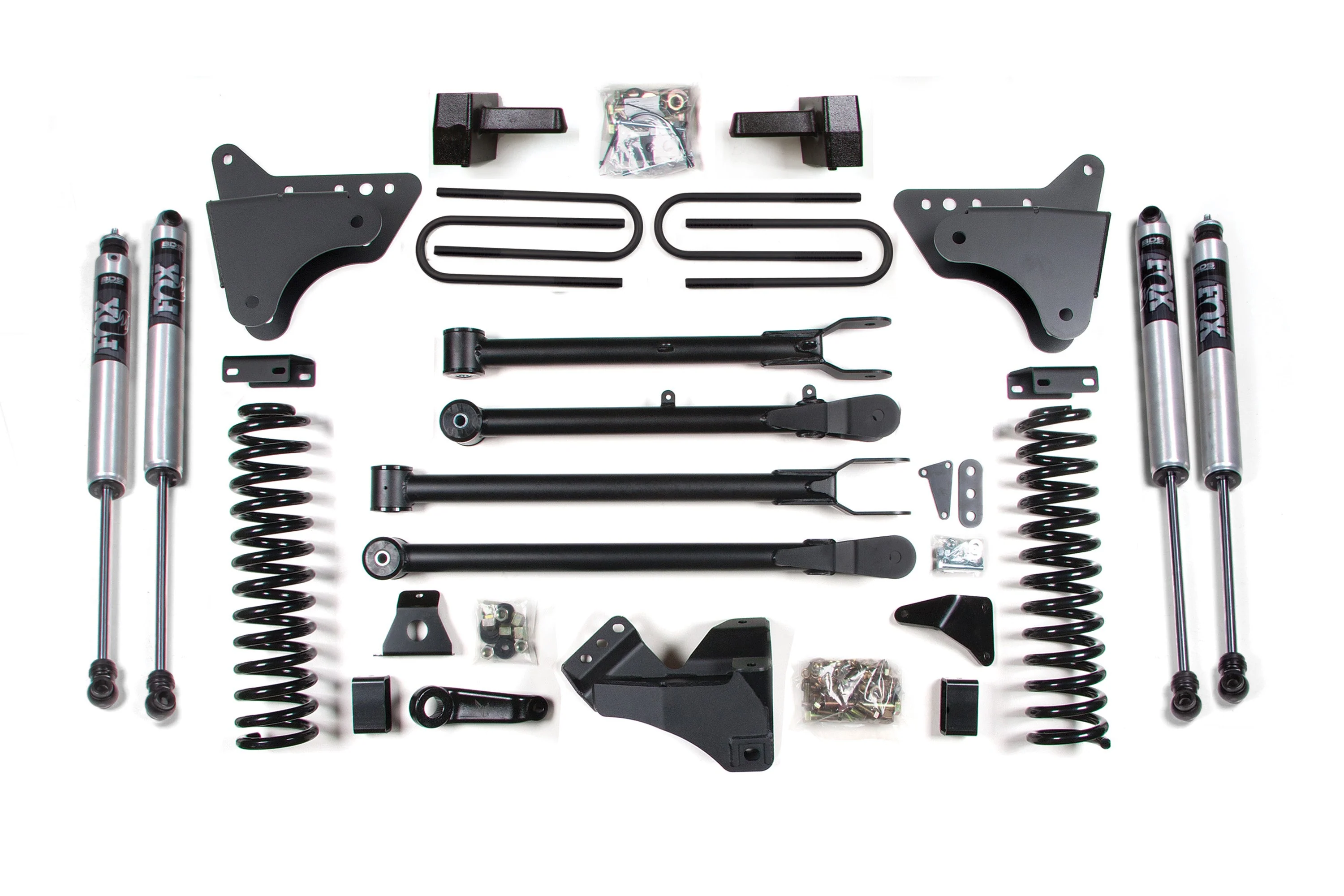

FOX 2.0 Performance Series
  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Ā

Features & Benefits
  • Easy, 100% Bolt-on installation
  • Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
  • Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Fabricated steel blocks provide level stance from front to rear
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Ā

Recommended Tires & Wheels

(Trimming may be required)

  • 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
  • 35 x 12.5 with 18 x 9 and 4.5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 4.5 in. Backspace

Ā

4-Inch Lift Kit w/ 4-Link for 2005-2007 Ford F-250/F-350 Super Duty 4WD Diesel | SKU BDS345FS
