6-Inch Lift kit w/ 4-Link for 2005-2007 Ford F-250/F-350 Super Duty 4WD Diesel

6-Inch Lift kit w/ 4-Link for 2005-2007 Ford F-250/F-350 Super Duty 4WD Diesel

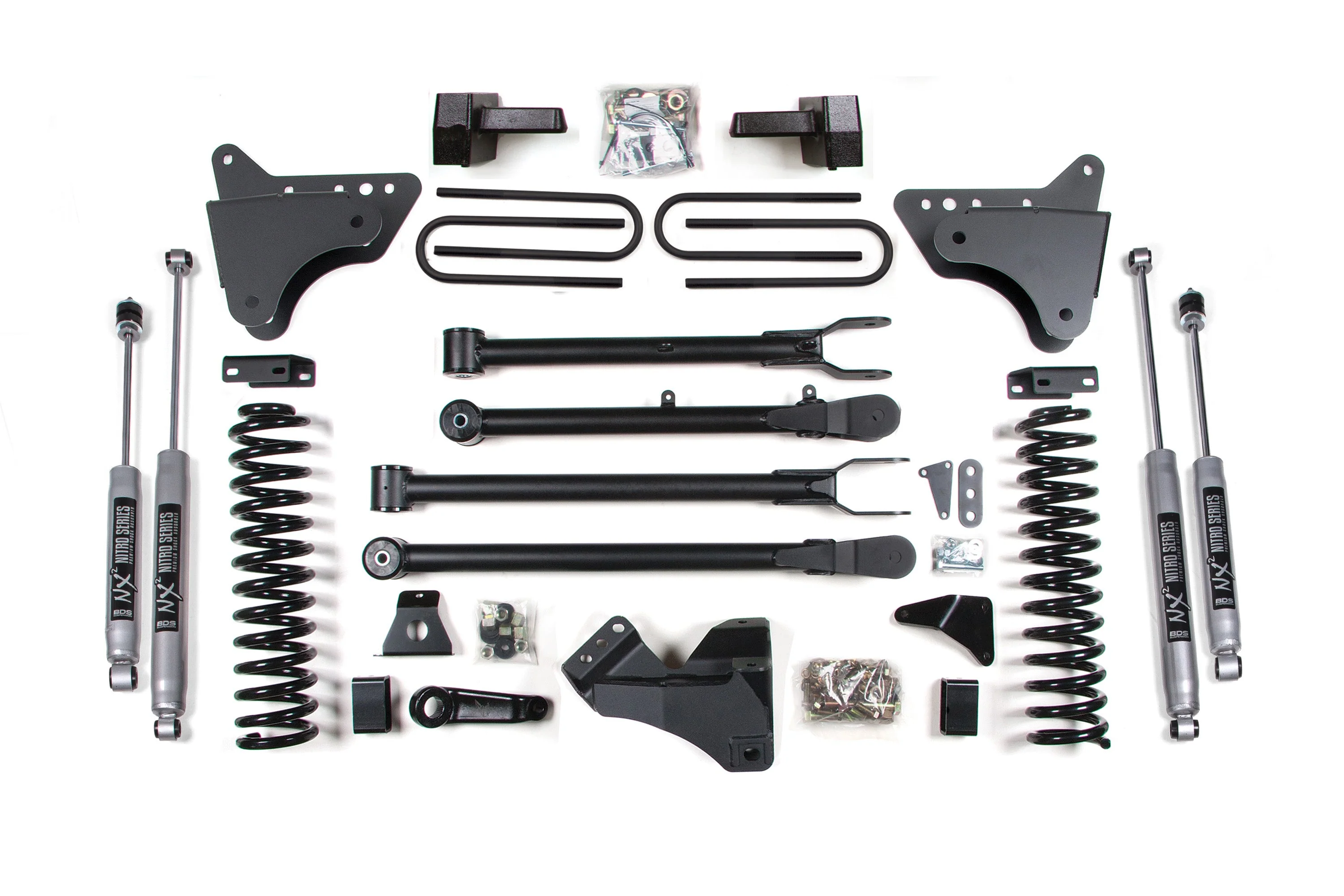

Elevate your 2005-2007 Ford F-250/F-350 Super Duty diesel truck to the next level with this 6-inch lift kit and 4-link conversion from BDS! This kit has everything you need to improve stance, performance, and capability, allowing for clearance of up to 37" tires.

The kit also includes diesel-specific Pro-Ride coil springs, heavy-duty 4-link control arms, and a range of other components for steering, braking, and shocks. In the rear, the kit adds high strength lift blocks, longer u-bolts, and matching shocks.

Ā

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Ā

4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength Ā¼-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Ā

Rear Lift Options

Please note - the factory leaf packs were made with or without a top mounted overload spring. Please inspect your vehicle before ordering.

5 Inch Block Kit
  • Blocks are made from cast iron for strength.
  • Tapered for correct pinion angle.
  • Steel pin and hole are offset to restore axle position.

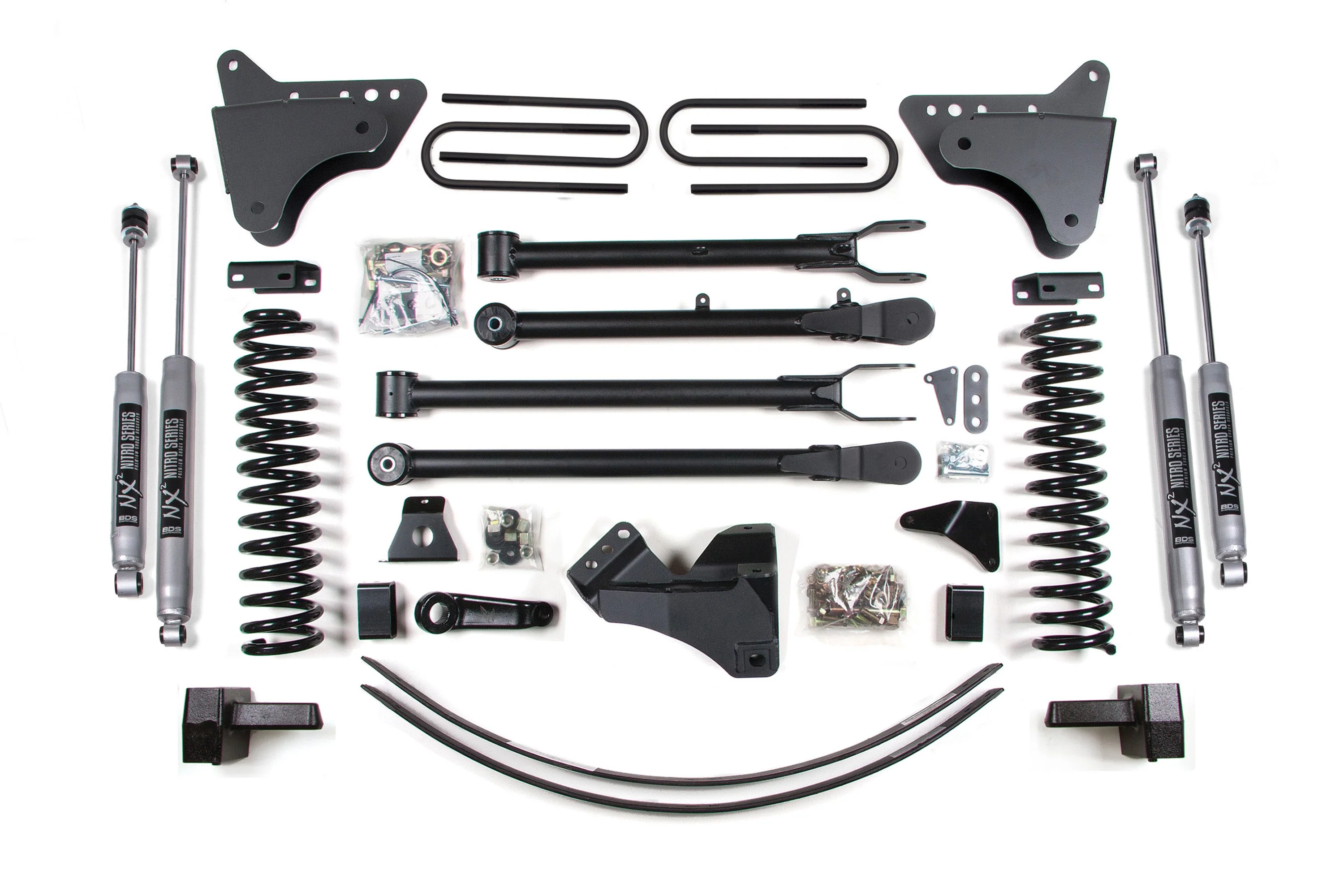

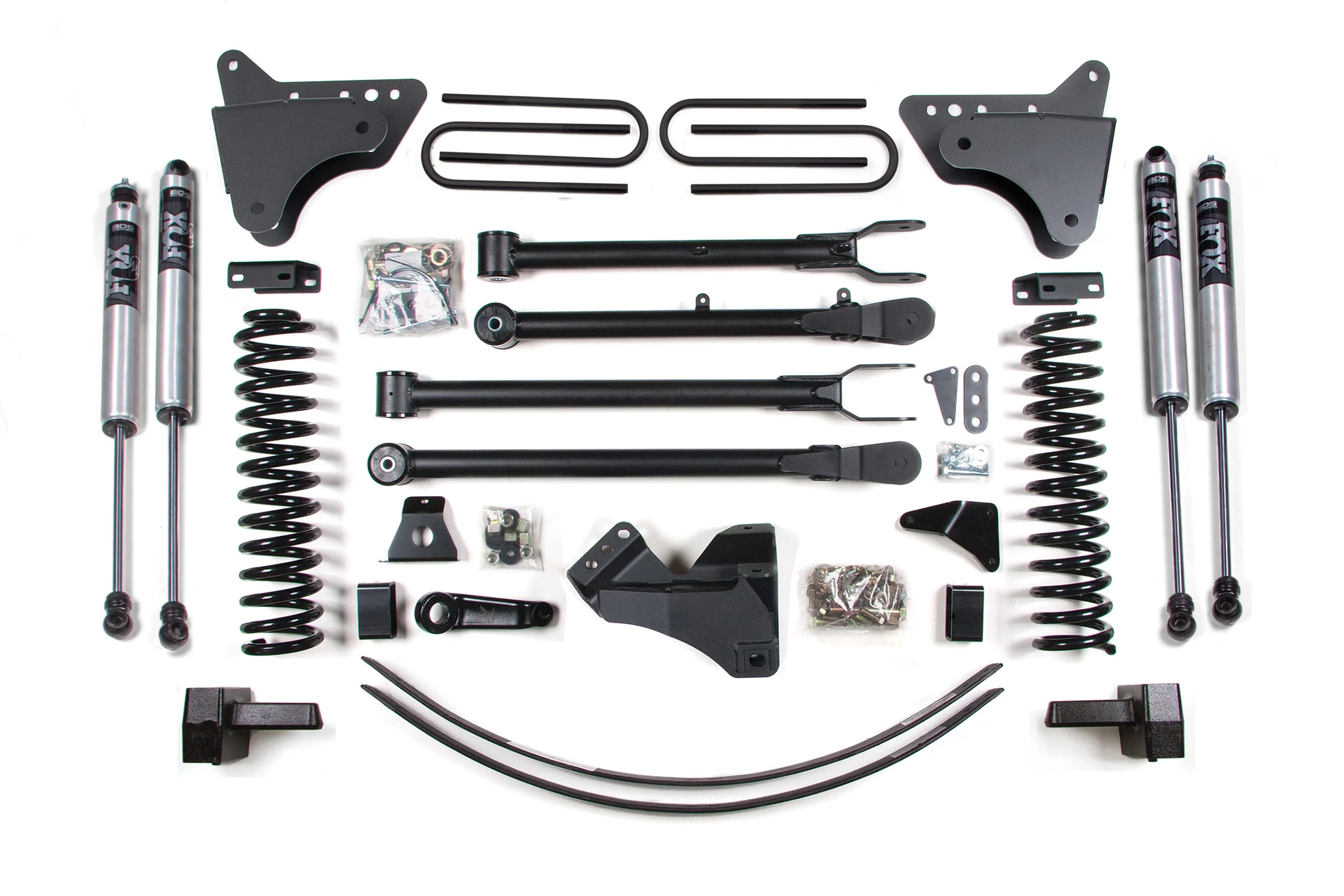

3 Inch Block Kit + Add-A-Leaf
  • Add-a-leaf helps freshen up old worn-out factory leaf springs.
  • Blocks are made from cast iron for max strength.
  • Includes new center pins.

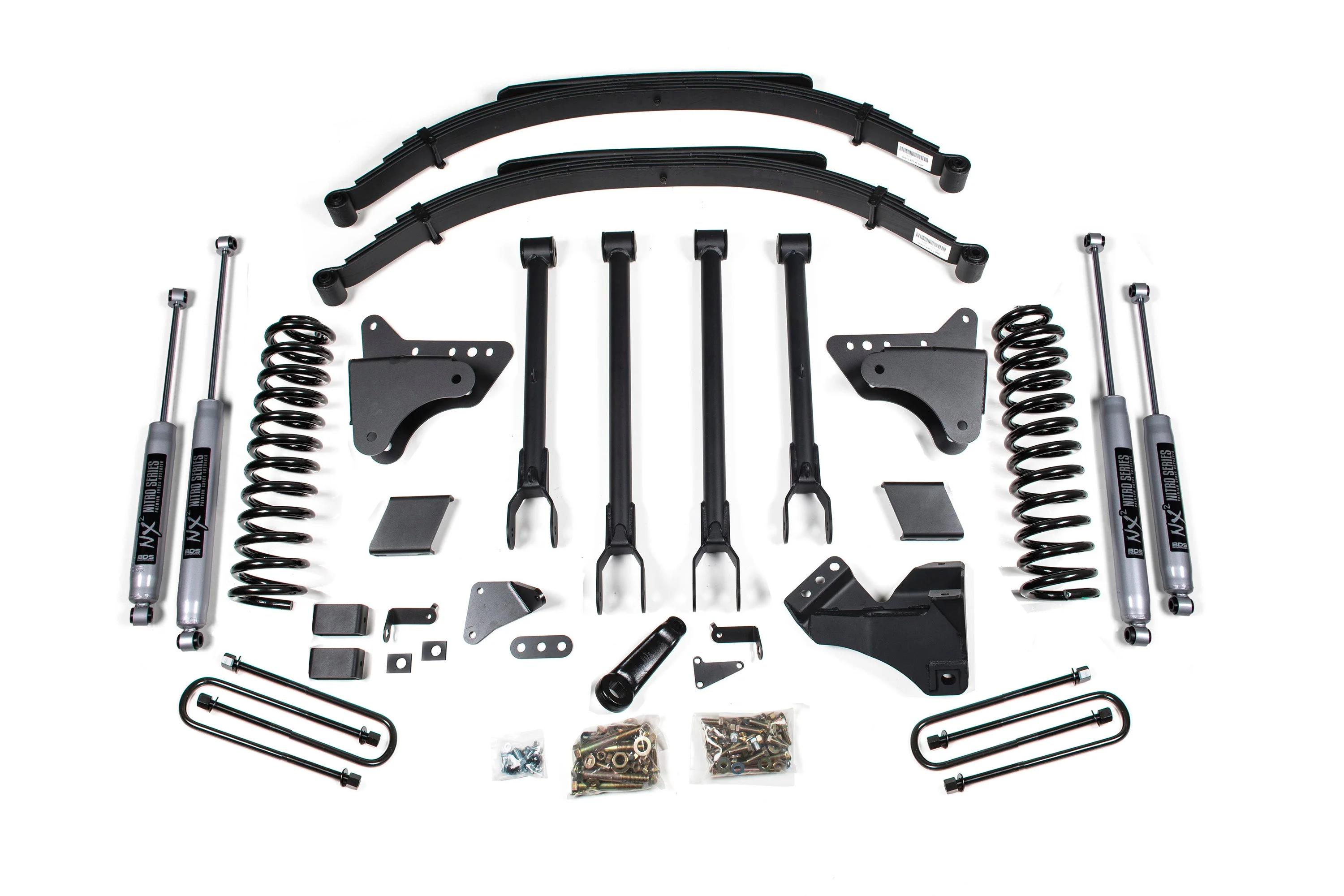

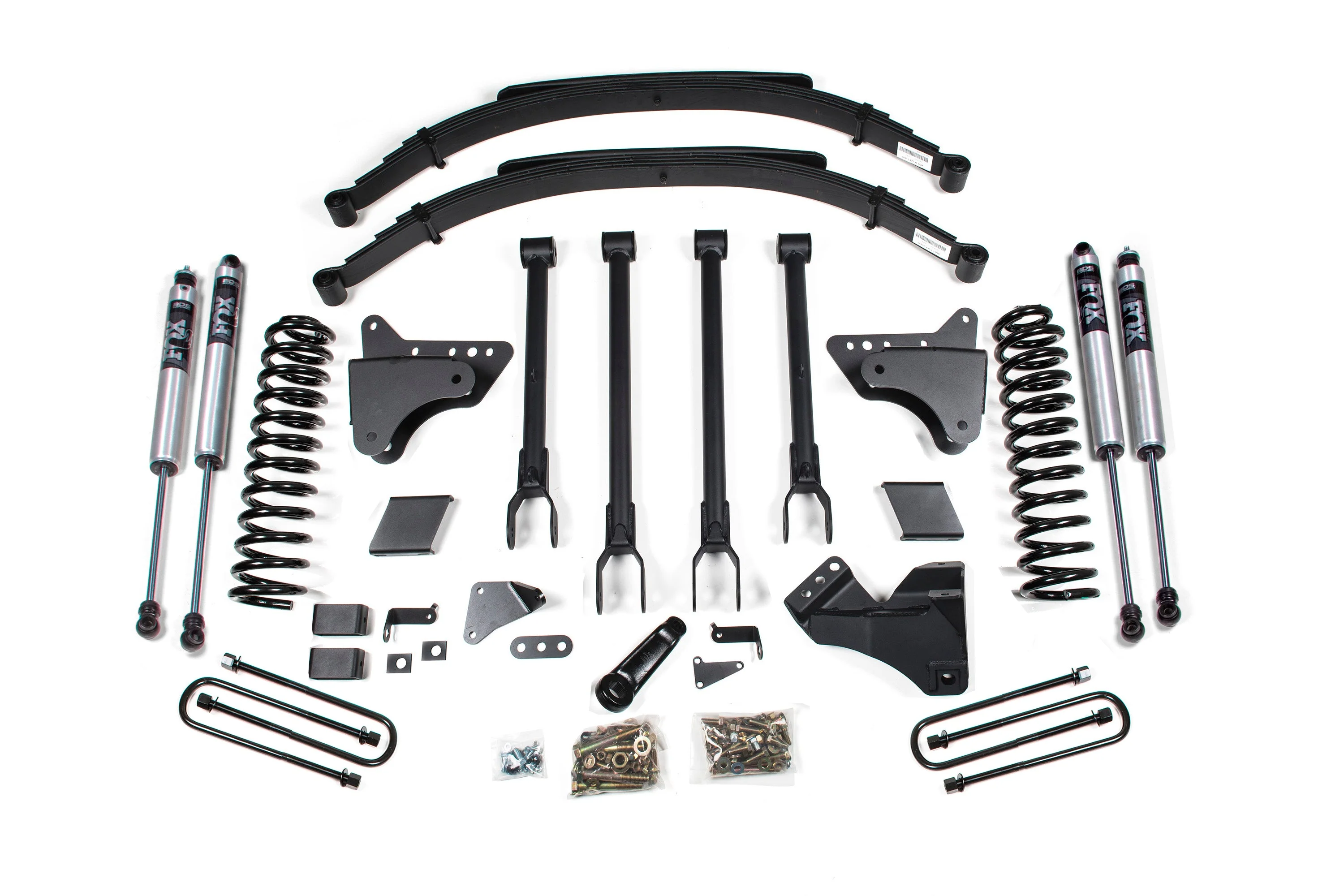

Leaf Springs
  • Eliminates any need for a lift block.
  • Reduces axle wrap and creates a more controlled and stable feel.
  • Multi-leaf progressive design for a smooth ride.
  • Maintains factory payload weight ratings.

Ā

Shock Option
NX2 Nitro Series
  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

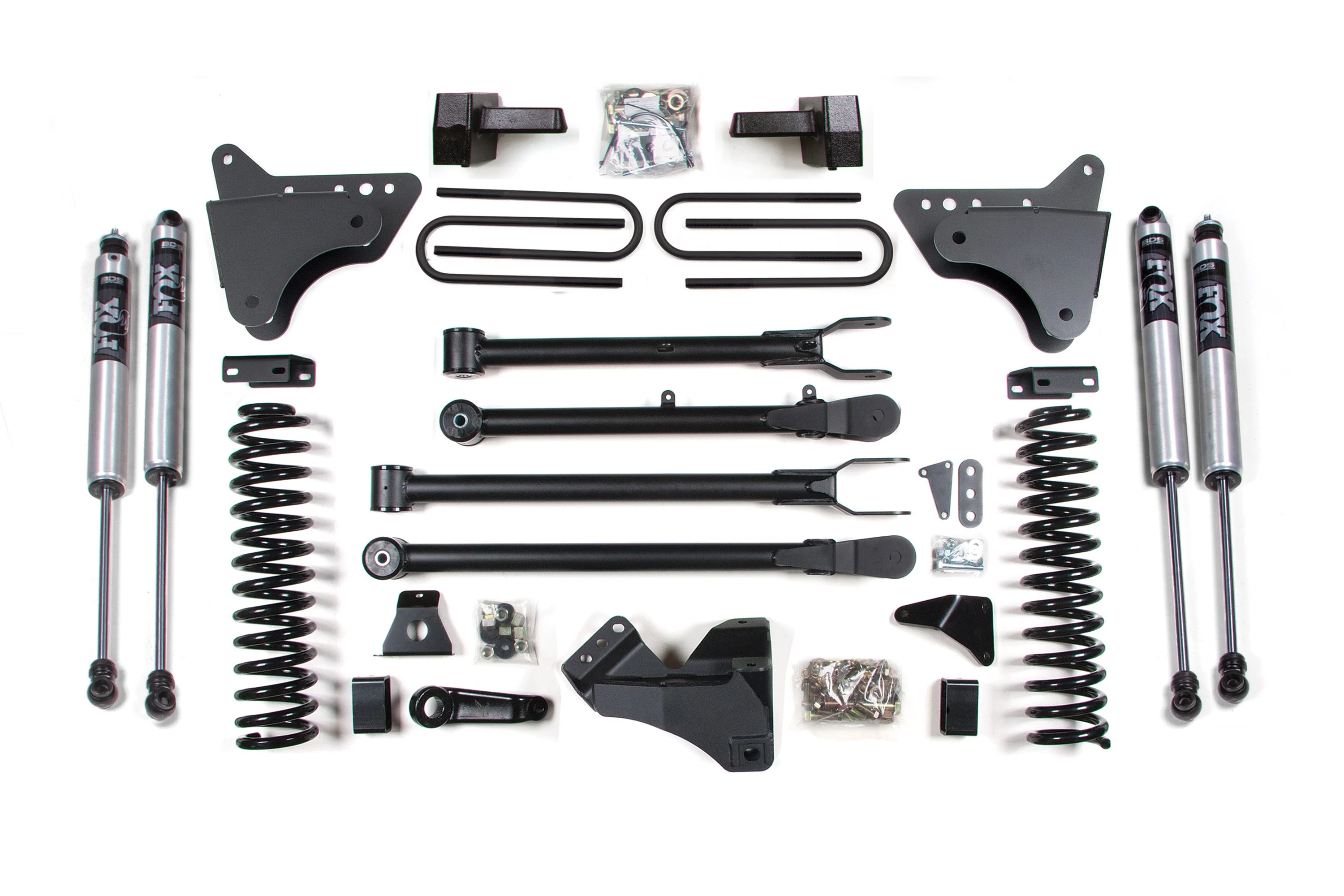

FOX 2.0 Performance Series
  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Ā

Features & Benefits
  • Easy, 100% Bolt-on installation
  • Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
  • Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Fabricated steel blocks provide level stance from front to rear
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Ā

Recommended Tires & Wheels

(Trimming may be required)

  • 37 x 12.5 with 17 x 9 and 4.5 in. Backspace
  • 37 x 12.5 with 18 x 9 and 4.5 in. Backspace
  • 37 x 12.5 with 20 x 9 and 4.5 in. Backspace

Ā

6-Inch Lift kit w/ 4-Link for 2005-2007 Ford F-250/F-350 Super Duty 4WD Diesel | SKU BDS351FS
