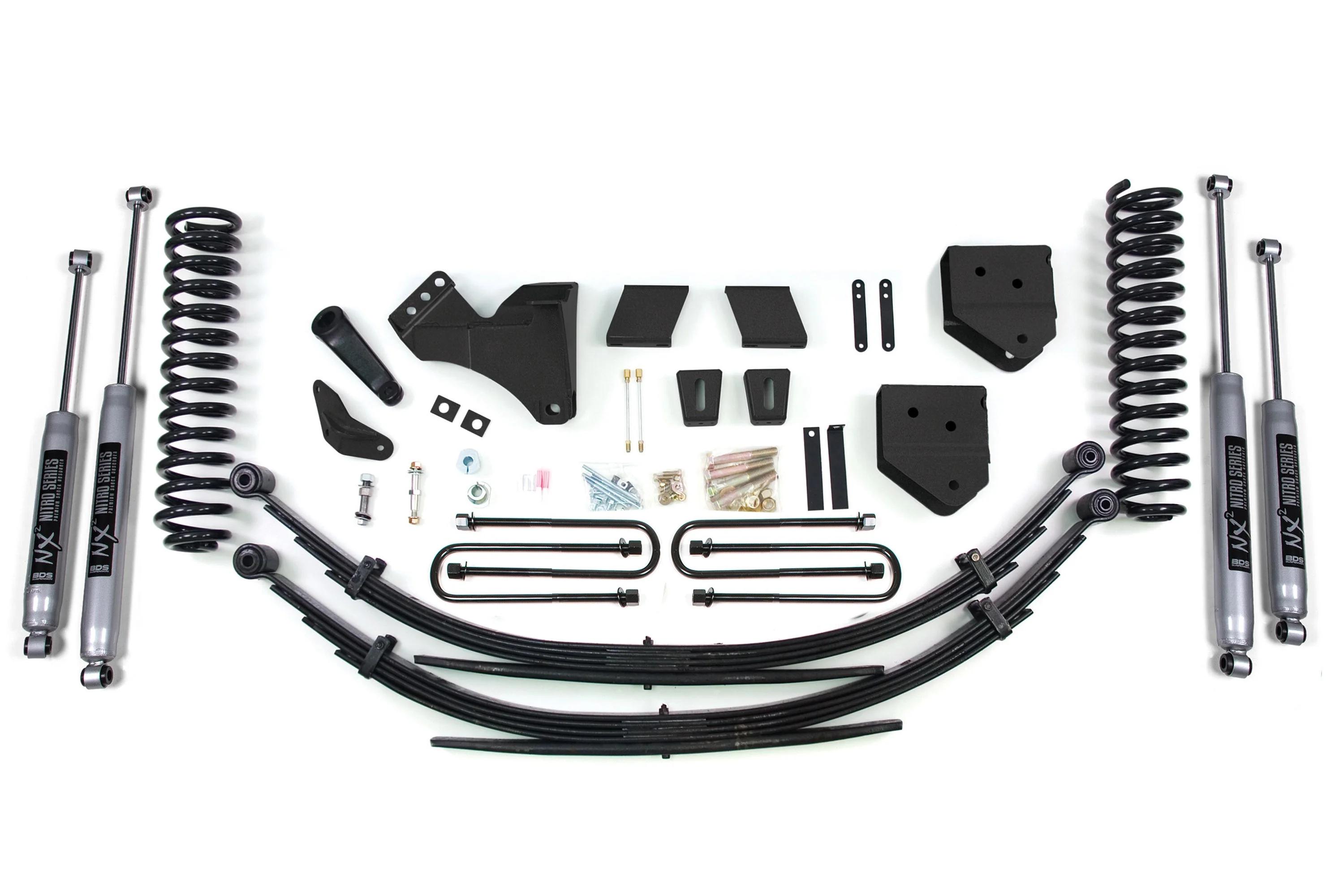

Product image 1
Product image 2
Product image 3
Product image 4

4-Inch Lift Kit for 2005-2007 Ford F-250/F-350 Super Duty 4WD Gas

4-Inch Lift Kit for 2005-2007 Ford F-250/F-350 Super Duty 4WD Gas

Ā

Improve the ground clearance of your 2005-2007 Ford F250 and F350 Super Duty gas truck with this 4-inch lift kit from BDS Suspension. Crafted to elevate stance, enhance performance, and increase capability, this kit includes all necessary components to properly equip your truck for up to 35" tires.

At the front, the lift kit boasts gas-specific Pro-Ride coil springs, durable radius arm drop brackets, a forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and meticulously tuned NX2 or FOX nitrogen charged shocks. In the back, this kit utilizes a resilient lift block, longer u-bolts, and a corresponding set of NX2 Nitro or FOX Performance shocks for extra support.

Ā

Pro-Ride Coil Springs

A pair of full-length, gas-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Rear Lift Option
Block Kit
  • Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs.Ā
  • Blocks made of steel for high strength.
  • Designed to provide correct pinion angles.

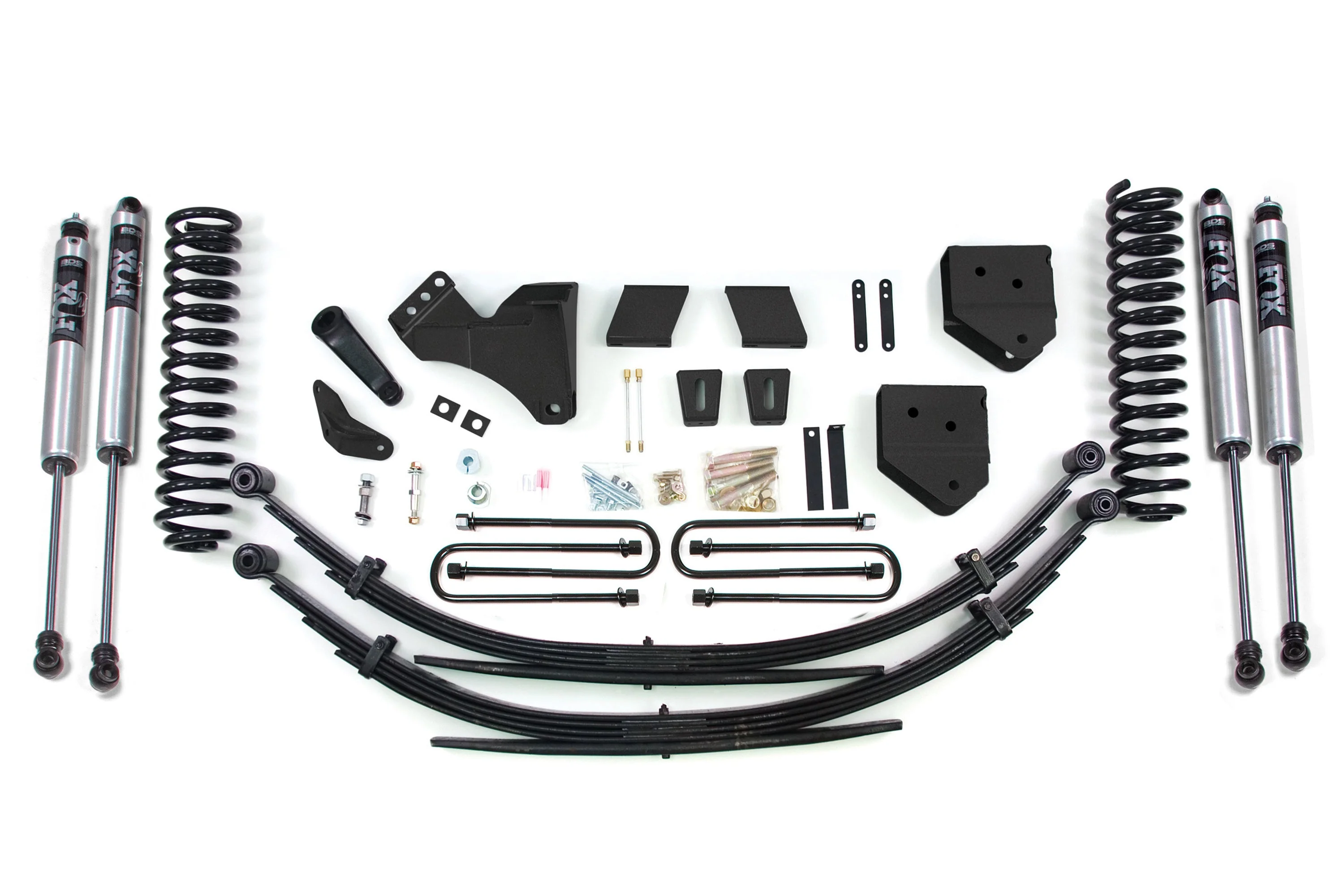

Leaf Springs
  • Eliminates any need for a lift block.
  • Reduces axle wrap and creates a more controlled and stable feel.
  • Multi-leaf progressive design for a smooth ride.
  • Maintains factory payload weight ratings.
Shock Option

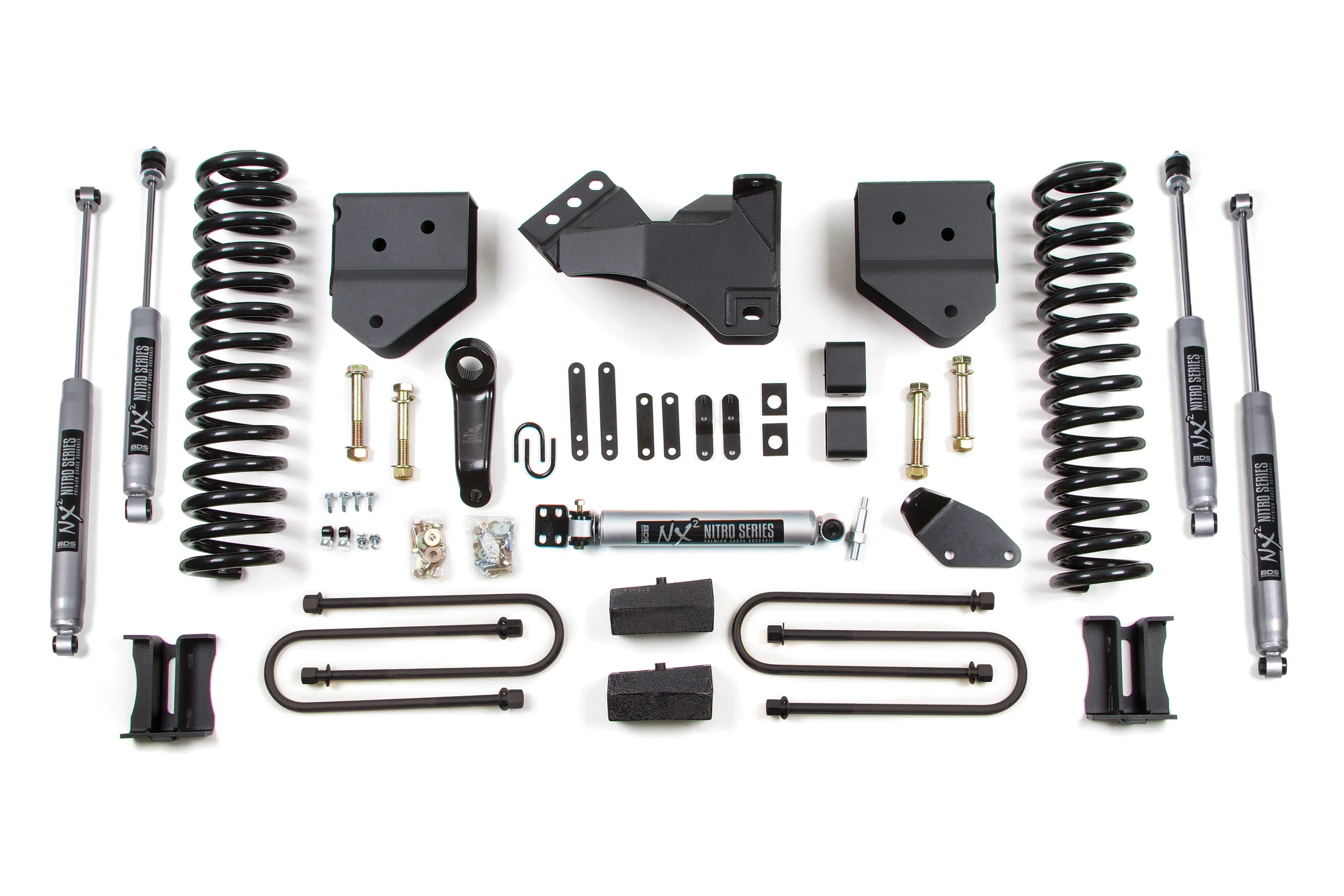

NX2 Nitro Series
  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

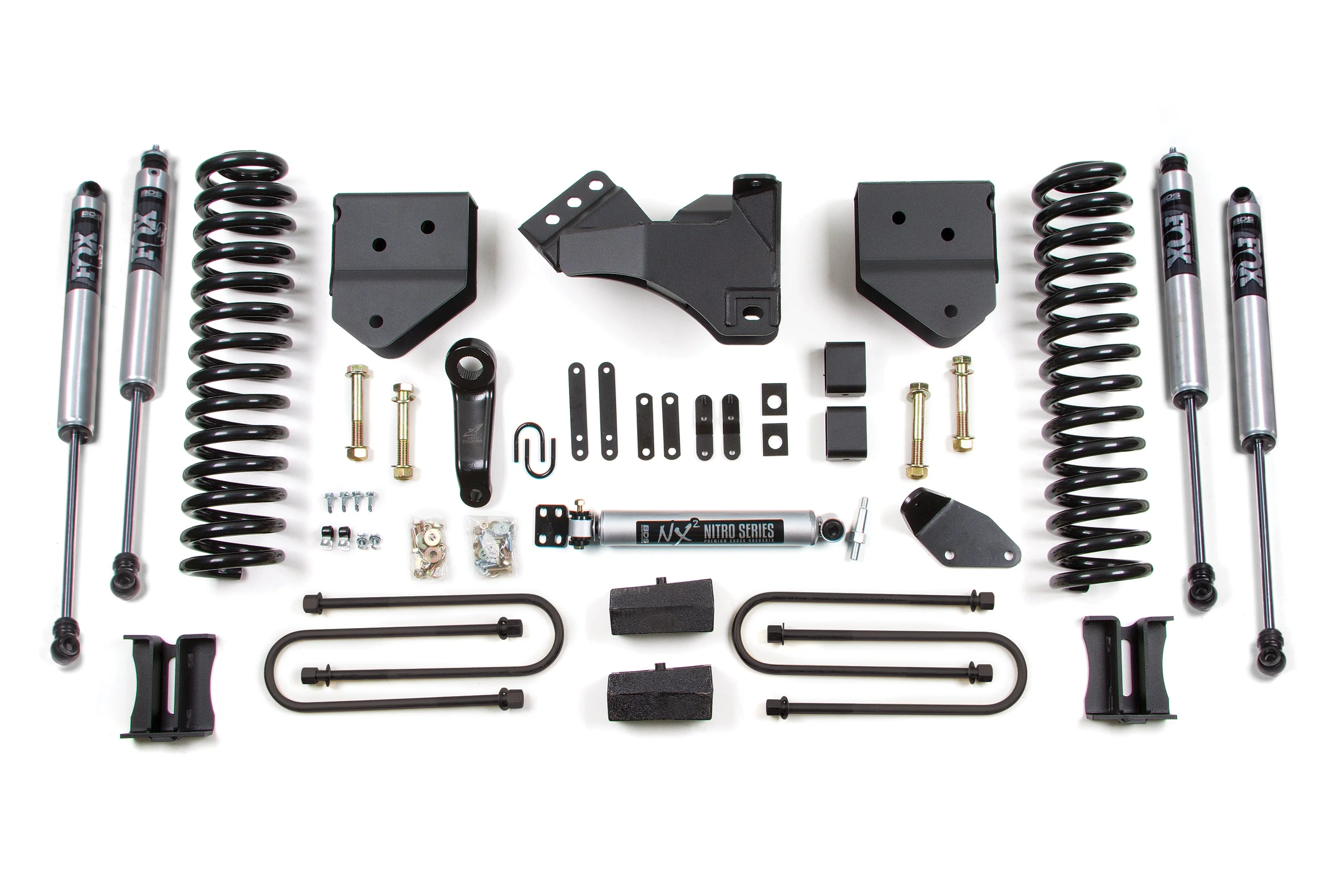

FOX 2.0 Performance Series
  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish
Features & Benefits
  • Easy, 100% Bolt-on installation
  • Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
  • Heavy duty radius arm drop brackets provide correct caster and will maintain your stock driving characteristics.
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Steel lift blocks with built-in bump stop provide level stance from front to rear
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Recommended Tires & Wheels

(Trimming may be required)

  • 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
  • 35 x 12.5 with 18 x 9 and 4.5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 4.5 in. Backspace

Ā 4-Inch Lift Kit for 2005-2007 Ford F-250/F-350 Super Duty 4WD Gas | SKU BDS327FS

Select Rear Lift Option
Select Shock Option
From $461.86

Original: $1,319.60

-65%
4-Inch Lift Kit for 2005-2007 Ford F-250/F-350 Super Duty 4WD Gasā€”

$1,319.60

$461.86
