4-Inch Lift Kit w/ 4-Link for 2005-2007 Ford F-250/F-350 Super Duty 4WD Gas

Product image 1
Product image 2
Product image 3
Product image 4

4-Inch Lift Kit w/ 4-Link for 2005-2007 Ford F-250/F-350 Super Duty 4WD Gas

4-Inch Lift Kit w/ 4-Link for 2005-2007 Ford F-250/F-350 Super Duty 4WD Gas

Upgrade your 2005-2007 Ford F250 and F350 Super Duty gas truck with this 4-inch lift kit and 4-Link conversion from BDS Suspension. This kit will give your truck the perfect stance, improved performance, and increased capability. It comes with all the necessary components to lift your truck and accommodate up to 35" tires.Ā

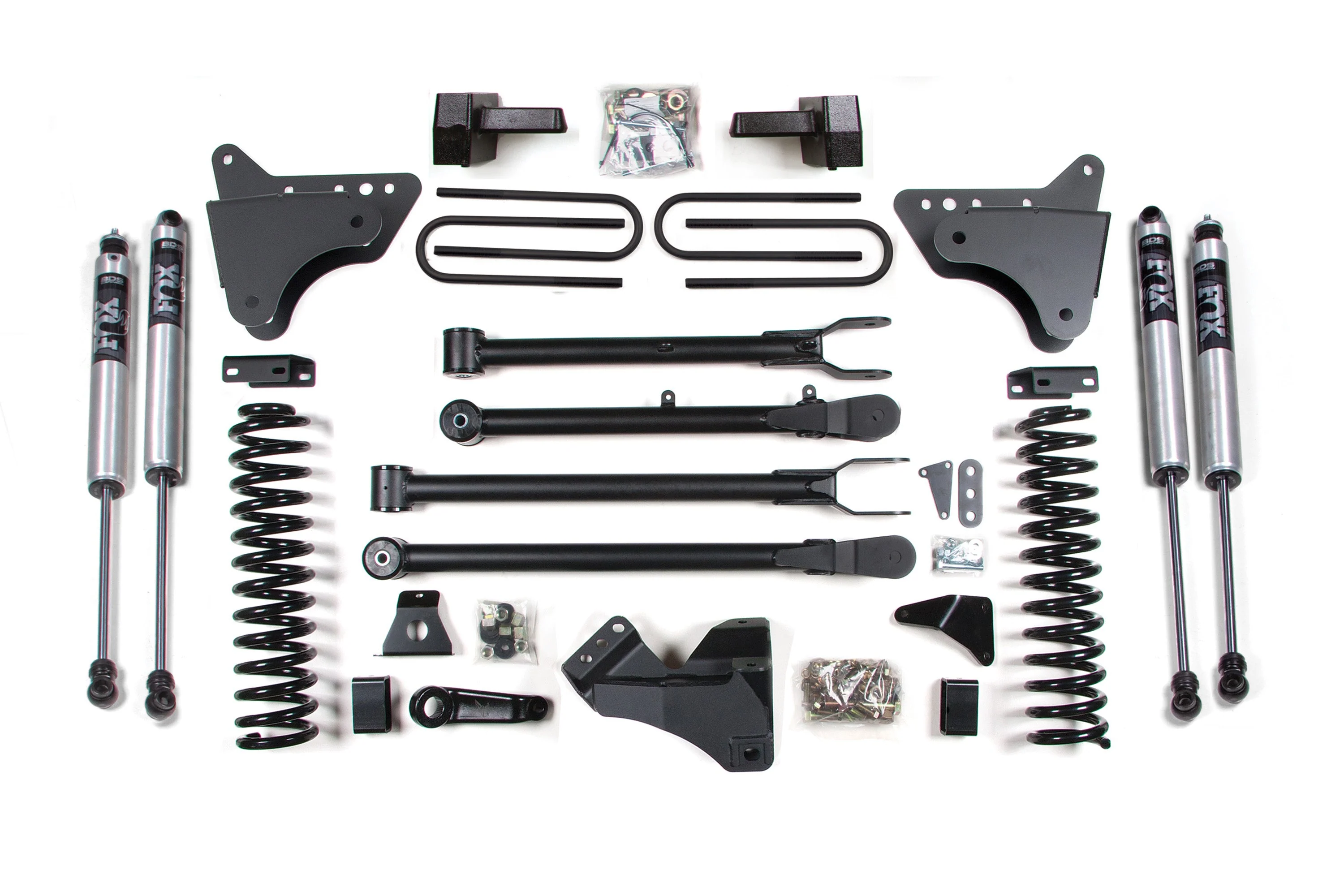

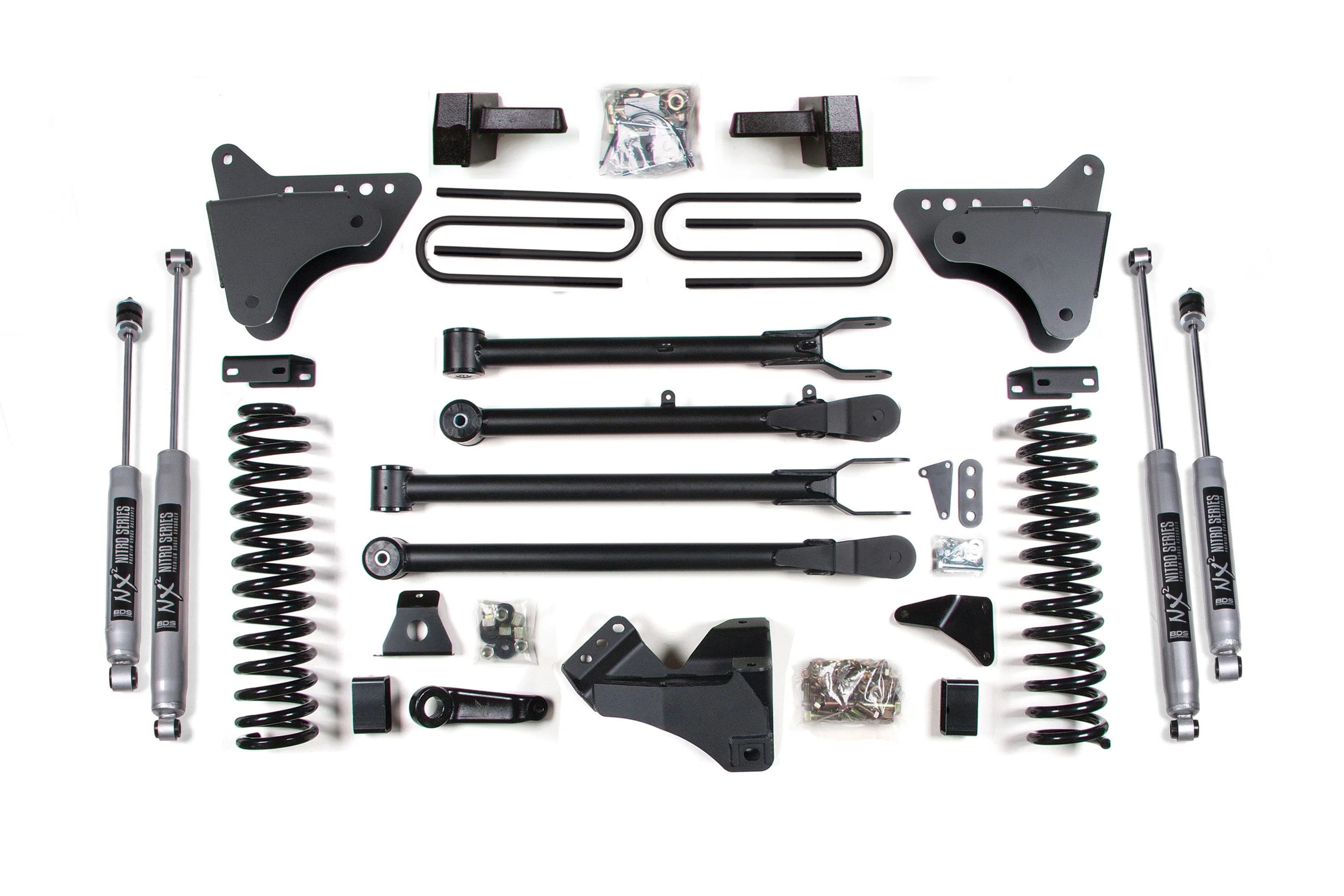

The front includes gas-specific Pro-Ride coil springs, 4-link control arms with conversion brackets, a forged drop pitman arm, a track bar bracket for steering correction, sway bar relocation, and precision tuned nitrogen charged shocks. In the rear, utilize a high-strength lift block, longer u-bolts, and a matching set of NX2 Nitro or FOX Performance shocks to complete the upgrade.

Ā

4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Ā

Pro-Ride Coil Springs

A pair of full-length, gas-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Ā

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy-duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Ā

Rear Lift Option
Block Kit
  • Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs.Ā
  • Blocks made of steel for high strength.
  • Designed to provide correct pinion angles.
Leaf Springs
  • Eliminates any need for a lift block.
  • Reduces axle wrap and creates a more controlled and stable feel.
  • Multi-leaf progressive design for a smooth ride.
  • Maintains factory payload weight ratings.

Ā

Shock Option
NX2 Nitro Series
  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish
FOX 2.0 Performance Series
  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends

Ā

Features & Benefits
  • Easy, 100% Bolt-on installation
  • Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
  • Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Fabricated steel blocks provide level stance from front to rear
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Ā

Recommended Tires & Wheels

(Trimming may be required)

  • 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
  • 35 x 12.5 with 18 x 9 and 4.5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 4.5 in. Backspace

Ā

4-Inch Lift Kit w/ 4-Link for 2005-2007 Ford F-250/F-350 Super Duty 4WD Gas | SKU BDS329FS

Select Rear Lift Option
Select Shock Option
From $788.74

Original: $2,253.55

-65%
4-Inch Lift Kit w/ 4-Link for 2005-2007 Ford F-250/F-350 Super Duty 4WD Gasā€”

$2,253.55

$788.74

Product Information

Shipping & Returns

Description

Upgrade your 2005-2007 Ford F250 and F350 Super Duty gas truck with this 4-inch lift kit and 4-Link conversion from BDS Suspension. This kit will give your truck the perfect stance, improved performance, and increased capability. It comes with all the necessary components to lift your truck and accommodate up to 35" tires.Ā

The front includes gas-specific Pro-Ride coil springs, 4-link control arms with conversion brackets, a forged drop pitman arm, a track bar bracket for steering correction, sway bar relocation, and precision tuned nitrogen charged shocks. In the rear, utilize a high-strength lift block, longer u-bolts, and a matching set of NX2 Nitro or FOX Performance shocks to complete the upgrade.

Ā

4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Ā

Pro-Ride Coil Springs

A pair of full-length, gas-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Ā

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy-duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Ā

Rear Lift Option
Block Kit
  • Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs.Ā
  • Blocks made of steel for high strength.
  • Designed to provide correct pinion angles.

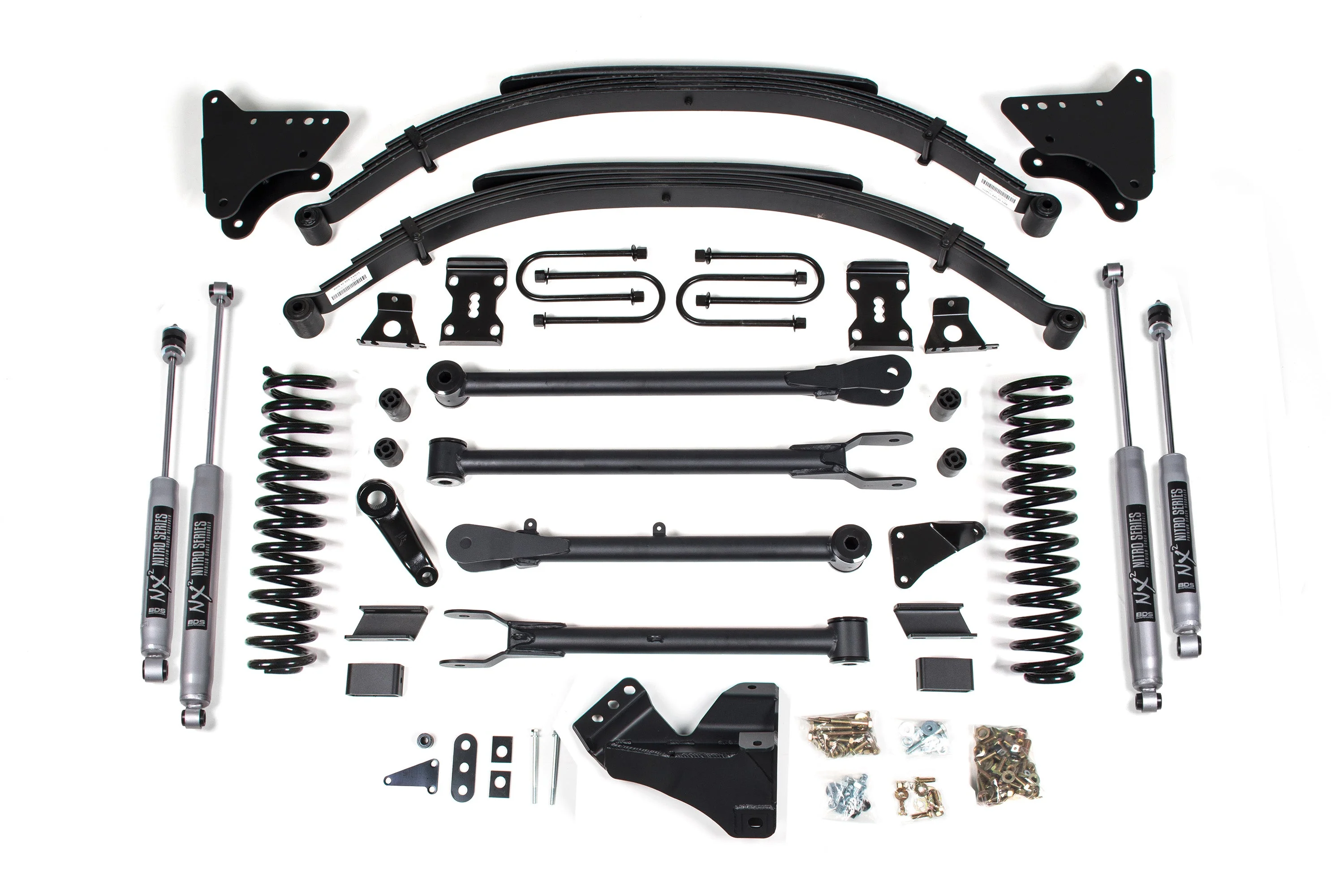

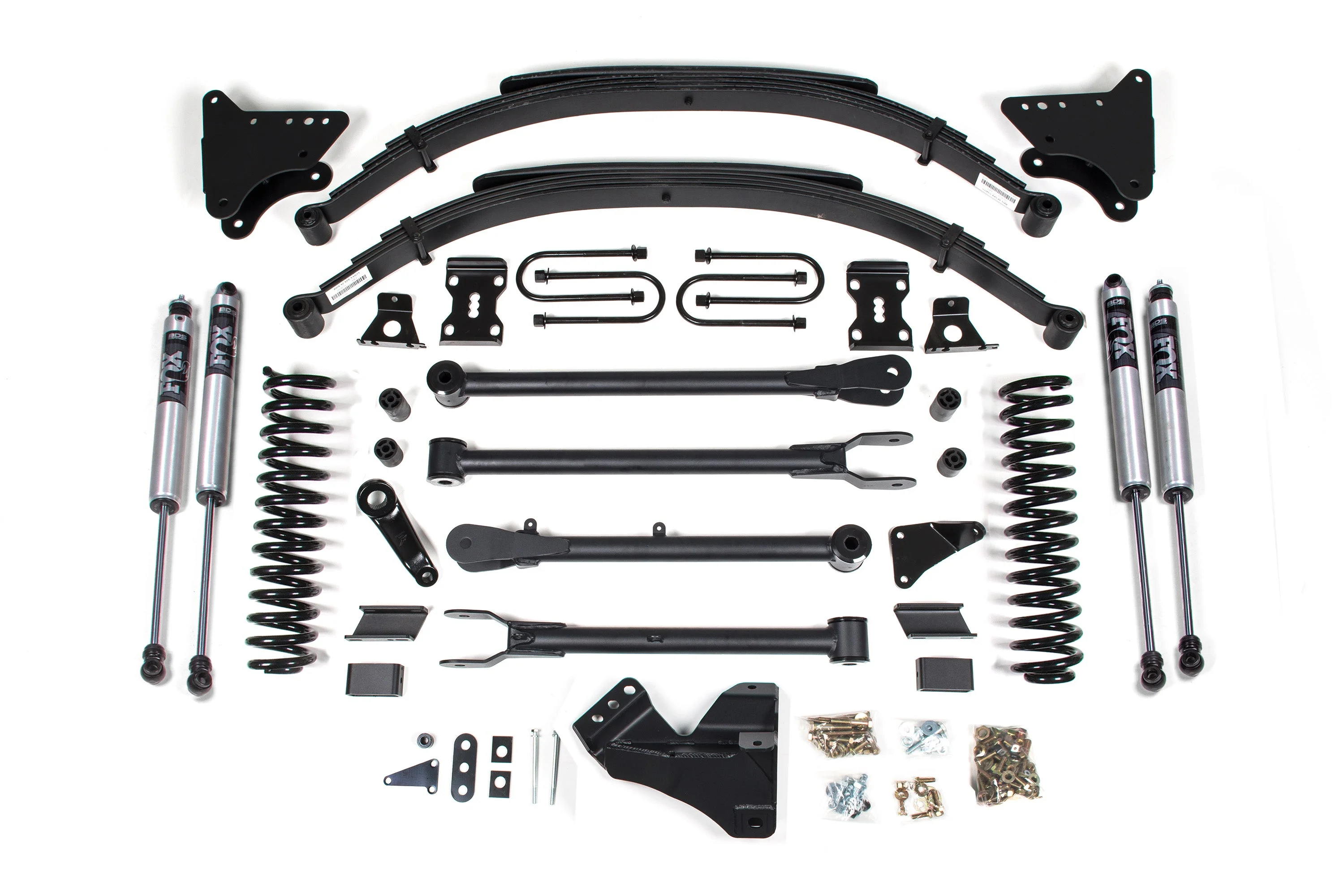

Leaf Springs
  • Eliminates any need for a lift block.
  • Reduces axle wrap and creates a more controlled and stable feel.
  • Multi-leaf progressive design for a smooth ride.
  • Maintains factory payload weight ratings.

Ā

Shock Option
NX2 Nitro Series
  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish
FOX 2.0 Performance Series
  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends

Ā

Features & Benefits
  • Easy, 100% Bolt-on installation
  • Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
  • Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Fabricated steel blocks provide level stance from front to rear
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Ā

Recommended Tires & Wheels

(Trimming may be required)

  • 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
  • 35 x 12.5 with 18 x 9 and 4.5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 4.5 in. Backspace

Ā

4-Inch Lift Kit w/ 4-Link for 2005-2007 Ford F-250/F-350 Super Duty 4WD Gas | SKU BDS329FS
