Give your Ford Super Duty F250/F350 gas truck a whole new look with this 6-inch Lift Kit + 4-Link Conversion from BDS Suspensions. Engineered for maximum performance on and off the road, this lift kit allows you to run up to 37" tires.

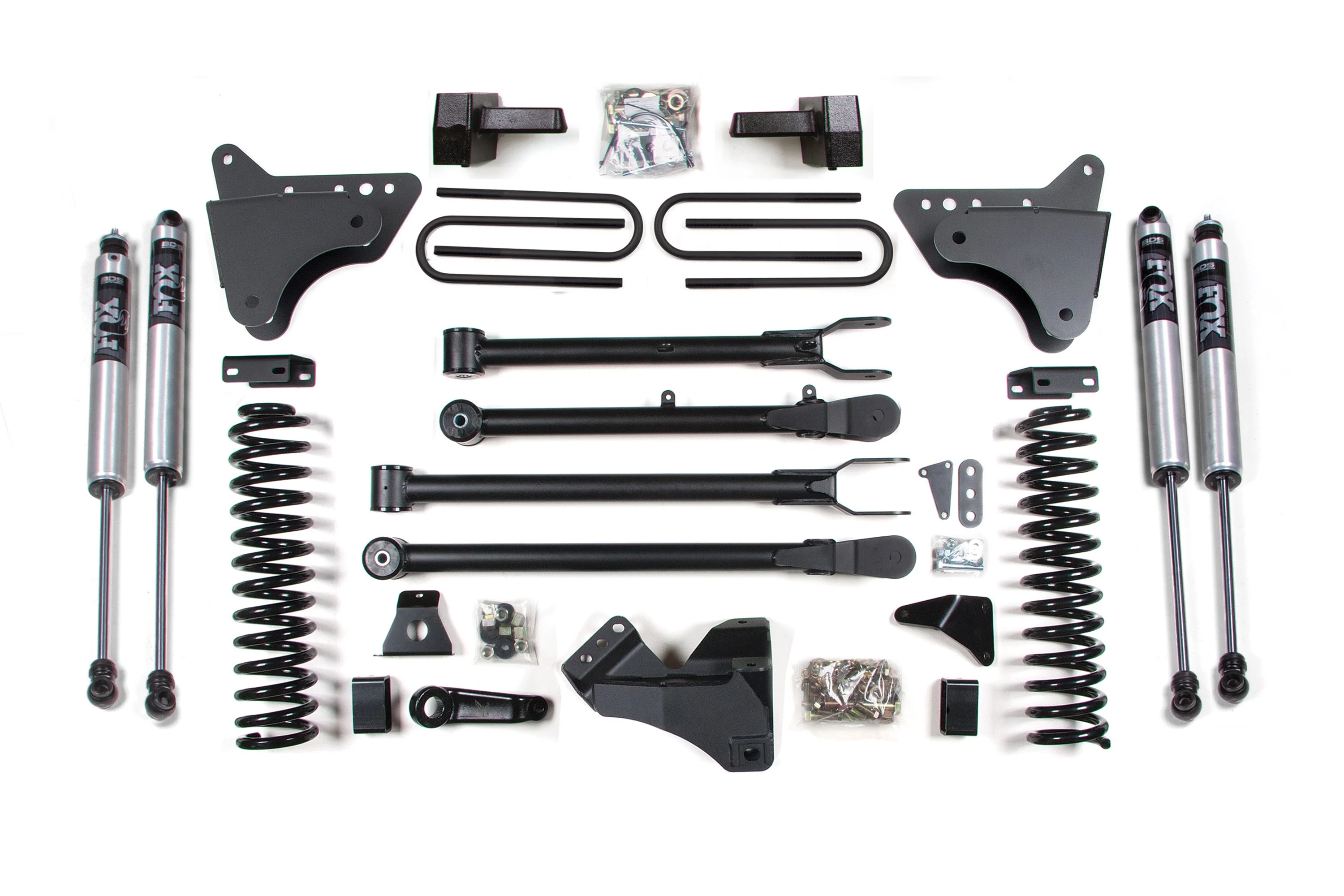

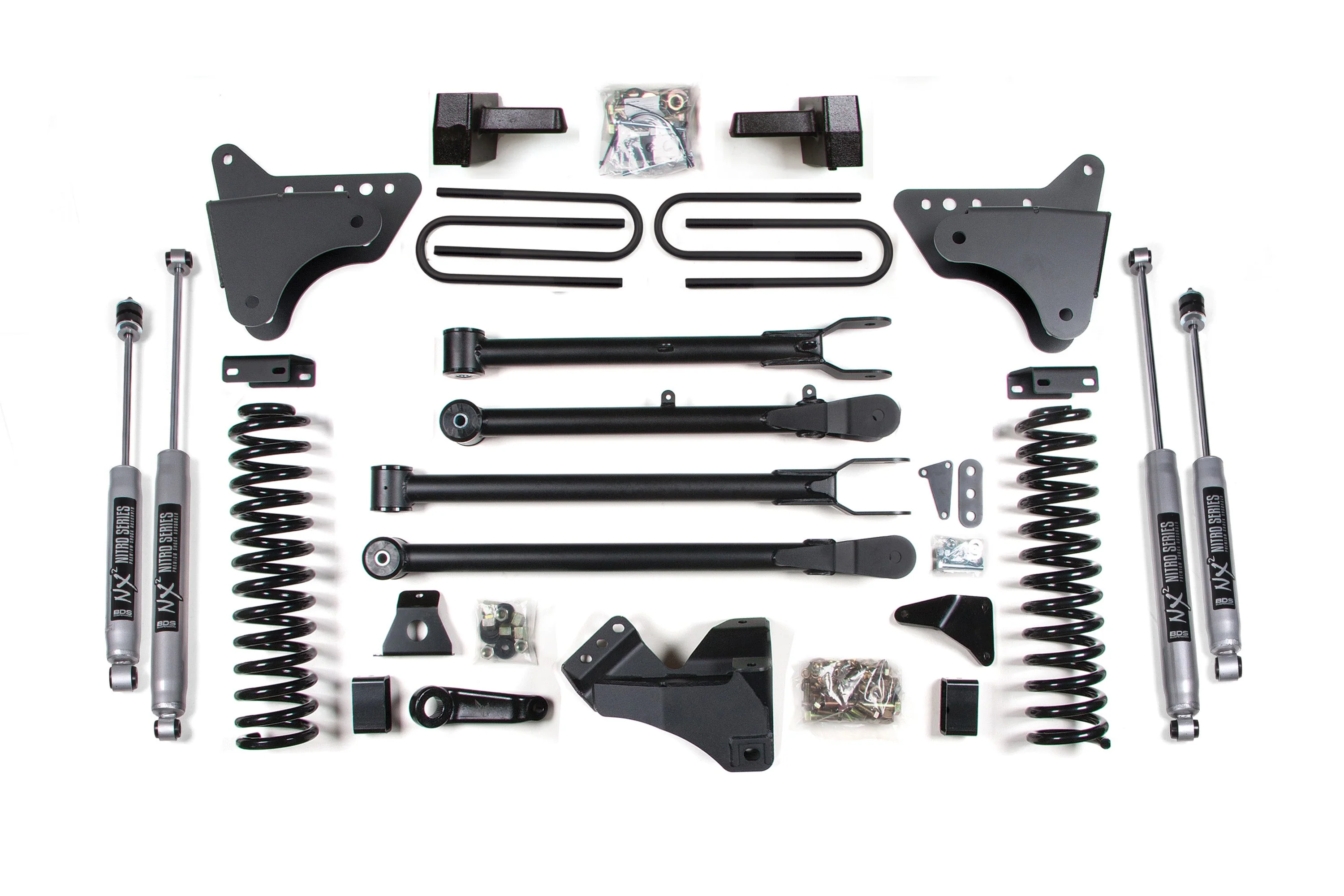

Up front, this lift kit includes

• Gas-specific Pro-Ride Coil Springs
• Heavy-duty 4-link control arms
• Forged drop pitman arm and track bar bracket for steering correction
• Sway bar relocation brake line brackets
• Custom-tuned nitrogen-charged shocks

In the rear, the base kit utilizes:

• High-strength lift blocks
• Longer U-bolts
• Brake line brackets
• A matching set of FOX Performance Shocks

A pair of full-length gas-specific Pro-Ride coil springs are supplied to provide the correct lift height and smooth predictable ride across various terrains.

Convert the factory-stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Lift Kit Features:

• Easy 100% Bolt-on installation

• Pro-Ride dual-rate Coil Springs provide a remarkable ride through any terrain
• Heavy duty 4-Link control arms offer improved handling stability strength and caster control during wheel travel
• The track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide a level stance from front to rear
• FOX 2.0 Performance Series: 2-inch Impact extruded aluminum body, Internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, Large 5/8-inch hard chrome plated heat-treated alloy steel shaft, Race-developed high-flow piston design, Application-specific valving to maximize performance, Long-lasting clear anodized finish
• Block Kit: Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs. Blocks made of steel for high strength. Designed to provide correct pinion angles.

Lift Kit Notes:

• Removal of the factory block is required.

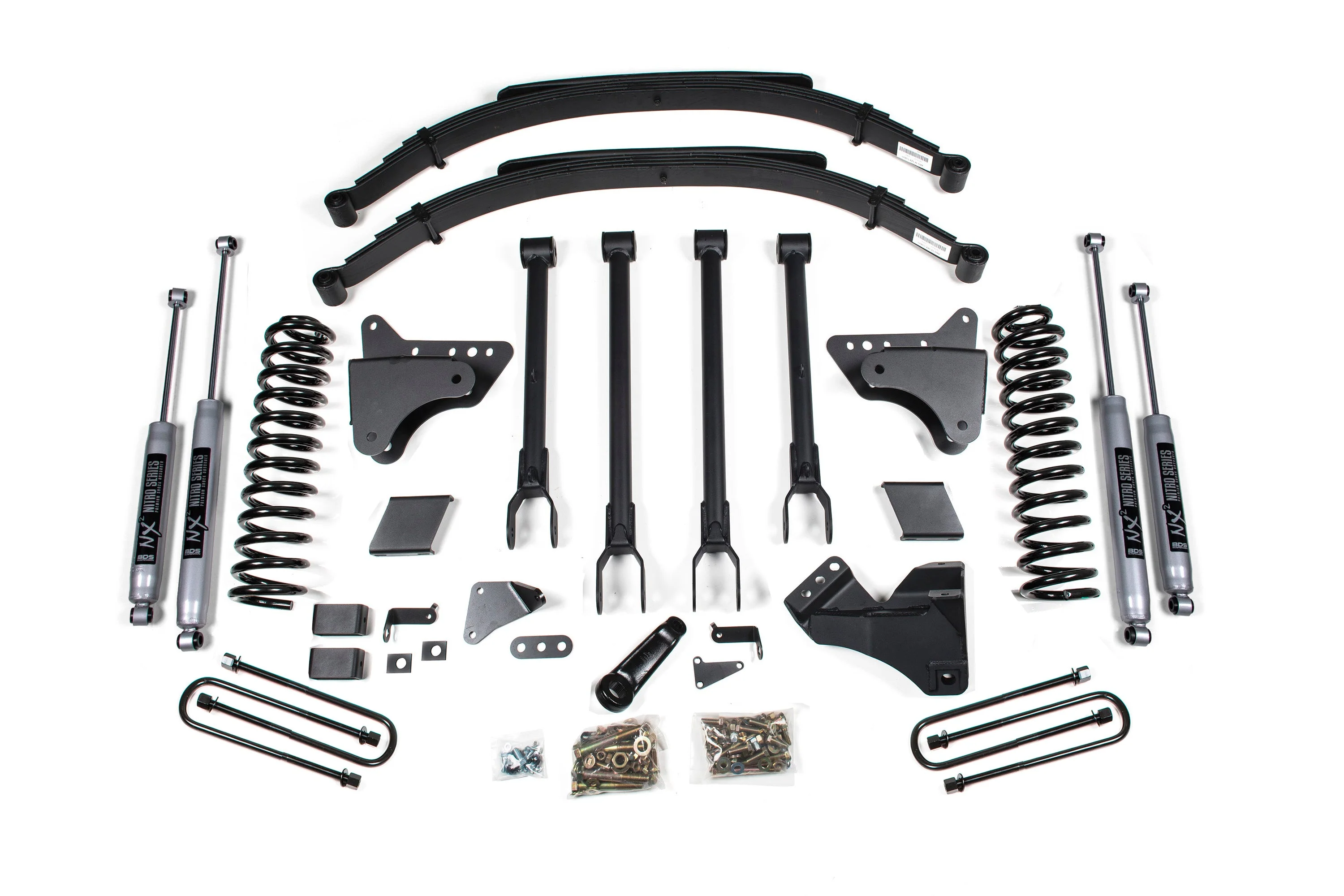

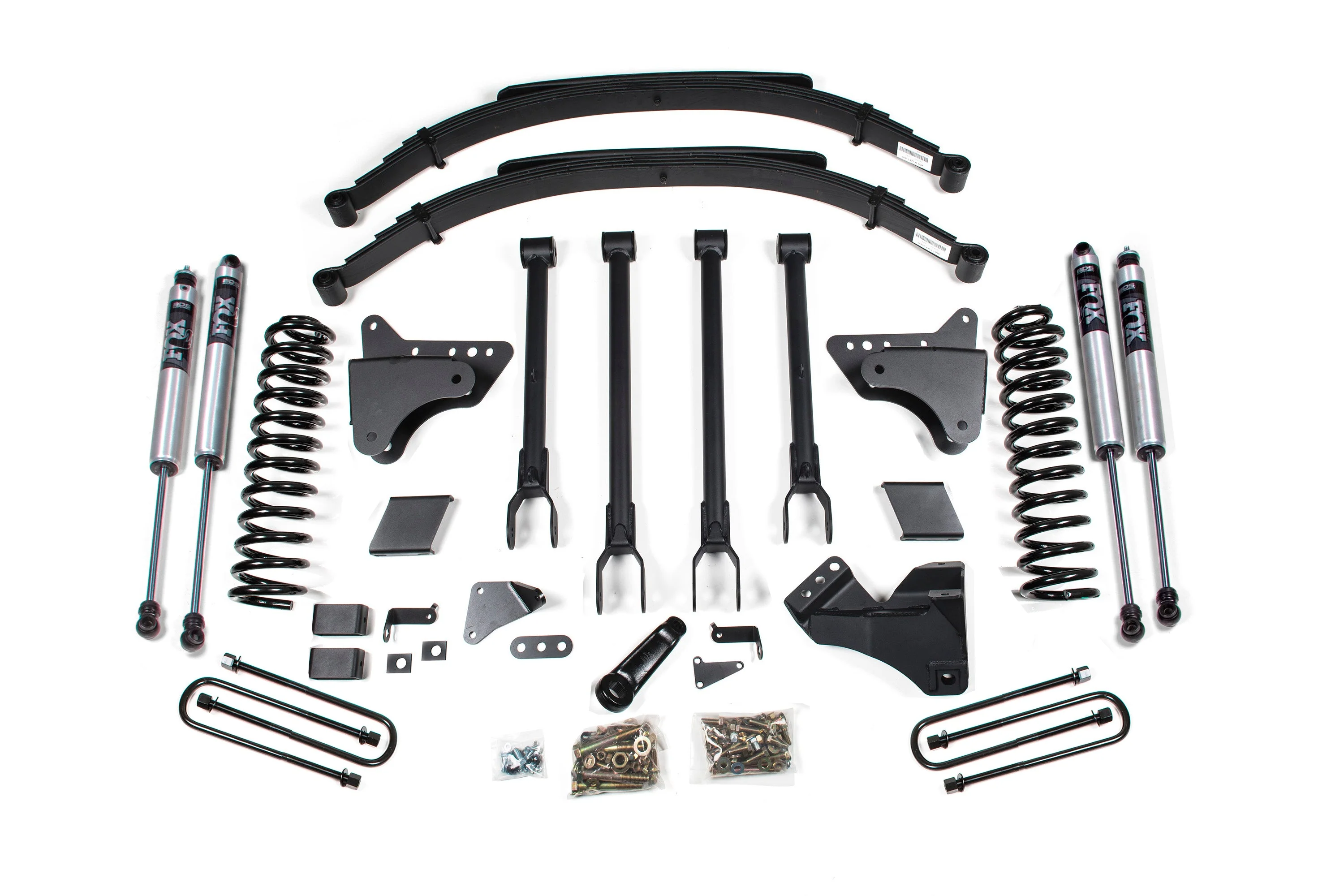

• Installation of the rear block kit will result in a "pre-runner" look with the rear of the vehicle 2" lower than the front. For a level stance, you must upgrade to the rear leaf spring option.
• These trucks were manufactured with and without top-mounted overload springs on the rear leaf springs. A top-mounted overload is an extra leaf separate from the pack is set above the main leaf. You will need to identify which you have before ordering.
• If your vehicle has a carrier bearing, you must order 123402 in the options section.
• Although extremely rare, front driveline vibration may occur.
• Front exhaust modification may be required to clear the front driveshaft on gas models.
• U-bolts will not fit dually models.
• Dropped pitman arm will not fit 10-lug wide track F350 models.
