6.5-Inch Lift Kit - FOX 2.5 Coil-Over Conversion for 2011-2019 Chevy Silverado + GMC Sierra 2500HD/3500HD Diesel

Product image 1
Product image 2

6.5-Inch Lift Kit - FOX 2.5 Coil-Over Conversion for 2011-2019 Chevy Silverado + GMC Sierra 2500HD/3500HD Diesel

6.5-Inch Lift Kit - FOX 2.5 Coil-Over Conversion for 2011-2019 Chevy Silverado + GMC Sierra 2500HD/3500HD Diesel

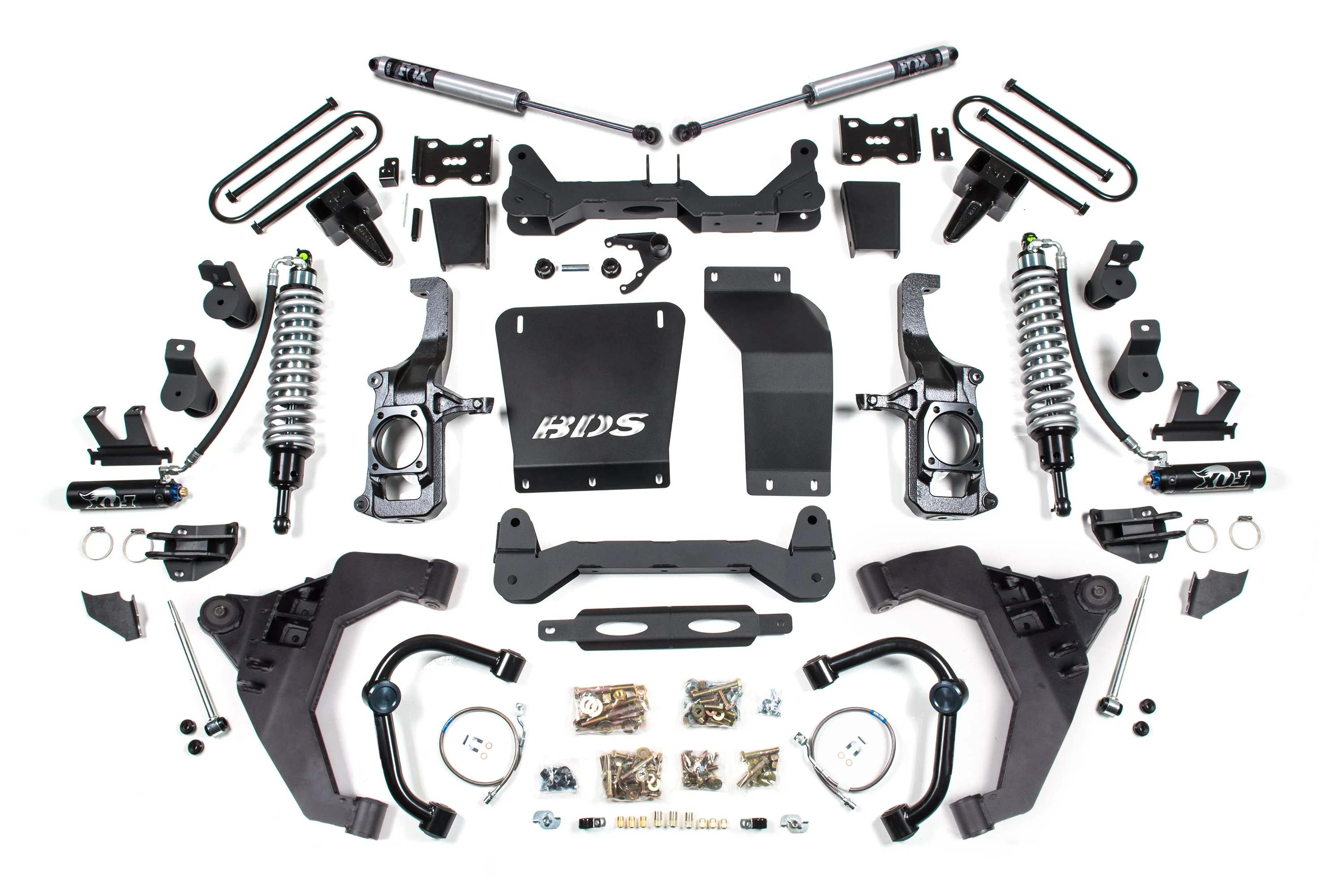

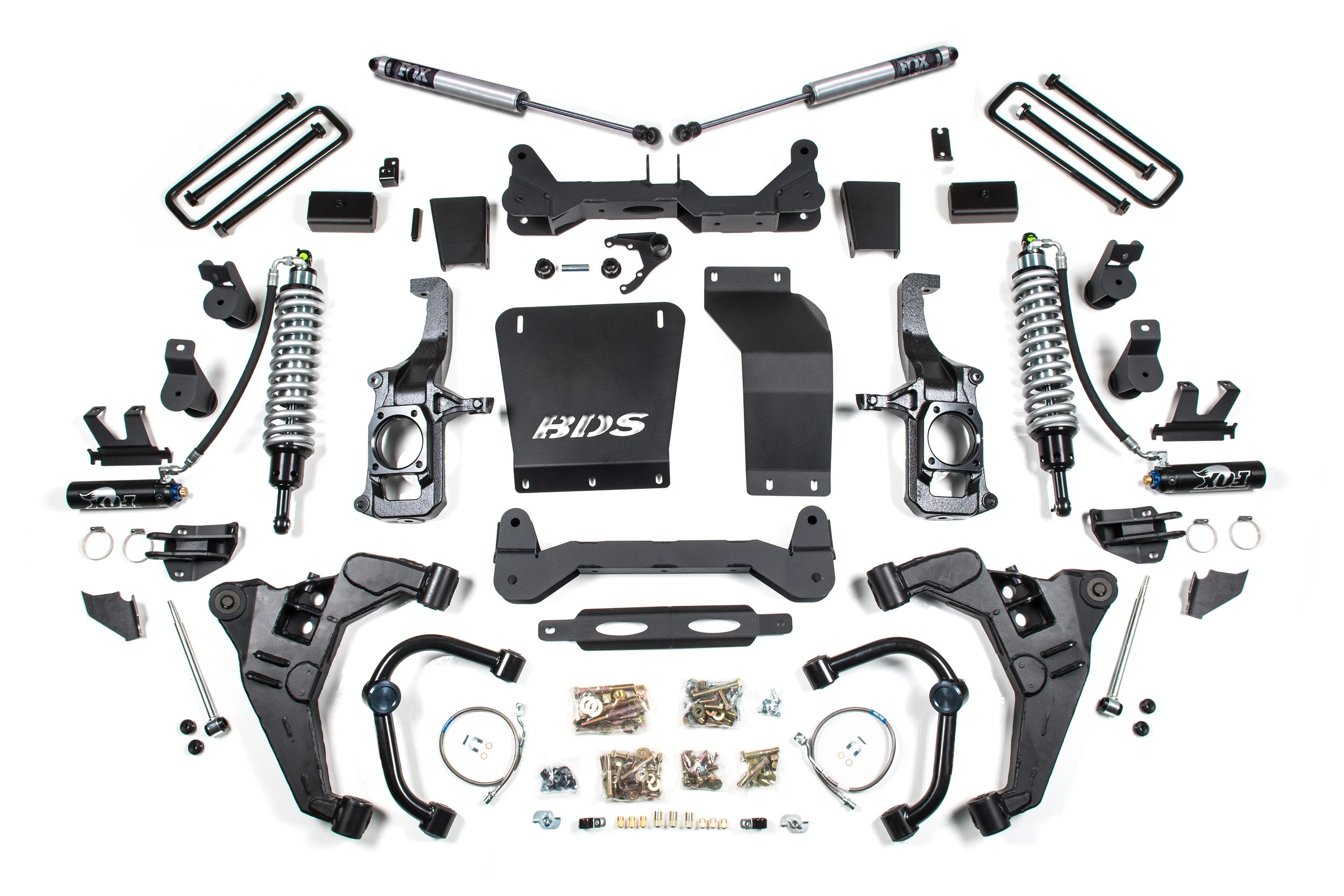

Upgrade the performance of your 2011-2019 Chevy Silverado and GMC Sierra 2500 HD truck with BDS's 6.5-inch suspension lift kit and FOX 2.5 Coil-Over conversion. Designed to enhance stance, capability, and handling, this kit includes everything needed to elevate your truck with clearance for up to 37" tires.

Featuring custom FOX 2.5 coil-over shocks for increased travel and a smooth on-road ride, this kit also includes heavy duty upper and lower control arms for improved strength and travel.

The high-clearance design not only improves ground clearance and off-road protection, but also corrects suspension and steering geometry for optimal on-road handling. With the addition of a u-bolt flip kit, replacement lift blocks, and precision tuned FOX 2.0 Performance Series shocks, this all-inclusive lift kit is ready for any terrain.



FOX 2.5 Coil-Overs

FOX 2.5 coil-overs offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter coil-overs are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain.

DSC Adjustment

FOX 2.5 coil-overs are available with optional DSC (dual speed compression) adjustment to tune the high-speed and low-speed compression damping allowing for added control on-road with the ability to easily dial in more aggressive damping offroad. Tuning is a simple twist of the two clearly defined knobs with immediate feedback to dial it in for any terrain

HD Control Arms

Built for strength, performance and increased travel, these control arms are ready to bolt-in. The upper arms use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. The new lower control arms are built from high strength steel, fully boxed with internally gusseted. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

Features & Benefits
  • FOX 2.5 coil-overs offer improved damper performance over stock
  • DSC Adjuster allows easy high-speed and low-speed compression tuning for optimal performance in any terrain
  • Performance UCAs increase strength and allow for more suspension travel
  • High Clearance design w/ no torsion bar drop maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • Factory Protection Plus drivetrain warranty included
Recommended Tires & Wheels

(Trimming may be required)

  • 37 x 12.5 with 17 x 8 and 4.625 in. Backspace
  • 37 x 12.5 with 18 x 9 and 4.625 in. Backspace
  • 37 x 12.5 with 20 x 9 and 5.5 in. Backspace
Rear Lift Option

Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs.

  • 3" block - Will result in a slightly tail-low stance.
  • 5" block - Will result in a level to slightly tail high stance, integrates a u-bolt flip kit with new spring plate.

6.5-Inch Lift Kit - FOX 2.5 Coil-Over Conversion for 2011-2019 Chevy Silverado + GMC Sierra 2500HD/3500HD Diesel | SKU BDS729FDSC/BDS730FDSC/BDS727FDSC/BDS728FDSC

Select Rear Shock Option
From $6,510.68
6.5-Inch Lift Kit - FOX 2.5 Coil-Over Conversion for 2011-2019 Chevy Silverado + GMC Sierra 2500HD/3500HD Diesel—
$6,510.68

Product Information

Shipping & Returns

Description

Upgrade the performance of your 2011-2019 Chevy Silverado and GMC Sierra 2500 HD truck with BDS's 6.5-inch suspension lift kit and FOX 2.5 Coil-Over conversion. Designed to enhance stance, capability, and handling, this kit includes everything needed to elevate your truck with clearance for up to 37" tires.

Featuring custom FOX 2.5 coil-over shocks for increased travel and a smooth on-road ride, this kit also includes heavy duty upper and lower control arms for improved strength and travel.

The high-clearance design not only improves ground clearance and off-road protection, but also corrects suspension and steering geometry for optimal on-road handling. With the addition of a u-bolt flip kit, replacement lift blocks, and precision tuned FOX 2.0 Performance Series shocks, this all-inclusive lift kit is ready for any terrain.



FOX 2.5 Coil-Overs

FOX 2.5 coil-overs offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter coil-overs are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain.

DSC Adjustment

FOX 2.5 coil-overs are available with optional DSC (dual speed compression) adjustment to tune the high-speed and low-speed compression damping allowing for added control on-road with the ability to easily dial in more aggressive damping offroad. Tuning is a simple twist of the two clearly defined knobs with immediate feedback to dial it in for any terrain

HD Control Arms

Built for strength, performance and increased travel, these control arms are ready to bolt-in. The upper arms use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. The new lower control arms are built from high strength steel, fully boxed with internally gusseted. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

Features & Benefits
  • FOX 2.5 coil-overs offer improved damper performance over stock
  • DSC Adjuster allows easy high-speed and low-speed compression tuning for optimal performance in any terrain
  • Performance UCAs increase strength and allow for more suspension travel
  • High Clearance design w/ no torsion bar drop maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • Factory Protection Plus drivetrain warranty included
Recommended Tires & Wheels

(Trimming may be required)

  • 37 x 12.5 with 17 x 8 and 4.625 in. Backspace
  • 37 x 12.5 with 18 x 9 and 4.625 in. Backspace
  • 37 x 12.5 with 20 x 9 and 5.5 in. Backspace
Rear Lift Option

Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs.

  • 3" block - Will result in a slightly tail-low stance.
  • 5" block - Will result in a level to slightly tail high stance, integrates a u-bolt flip kit with new spring plate.

6.5-Inch Lift Kit - FOX 2.5 Coil-Over Conversion for 2011-2019 Chevy Silverado + GMC Sierra 2500HD/3500HD Diesel | SKU BDS729FDSC/BDS730FDSC/BDS727FDSC/BDS728FDSC
