6-Inch Lift Kit for 2014-2018 Chevy Silverado + GMC Sierra 1500 4WD

Product image 1
Product image 2
Product image 3
Product image 4

6-Inch Lift Kit for 2014-2018 Chevy Silverado + GMC Sierra 1500 4WD

6-Inch Lift Kit for 2014-2018 Chevy Silverado + GMC Sierra 1500 4WD

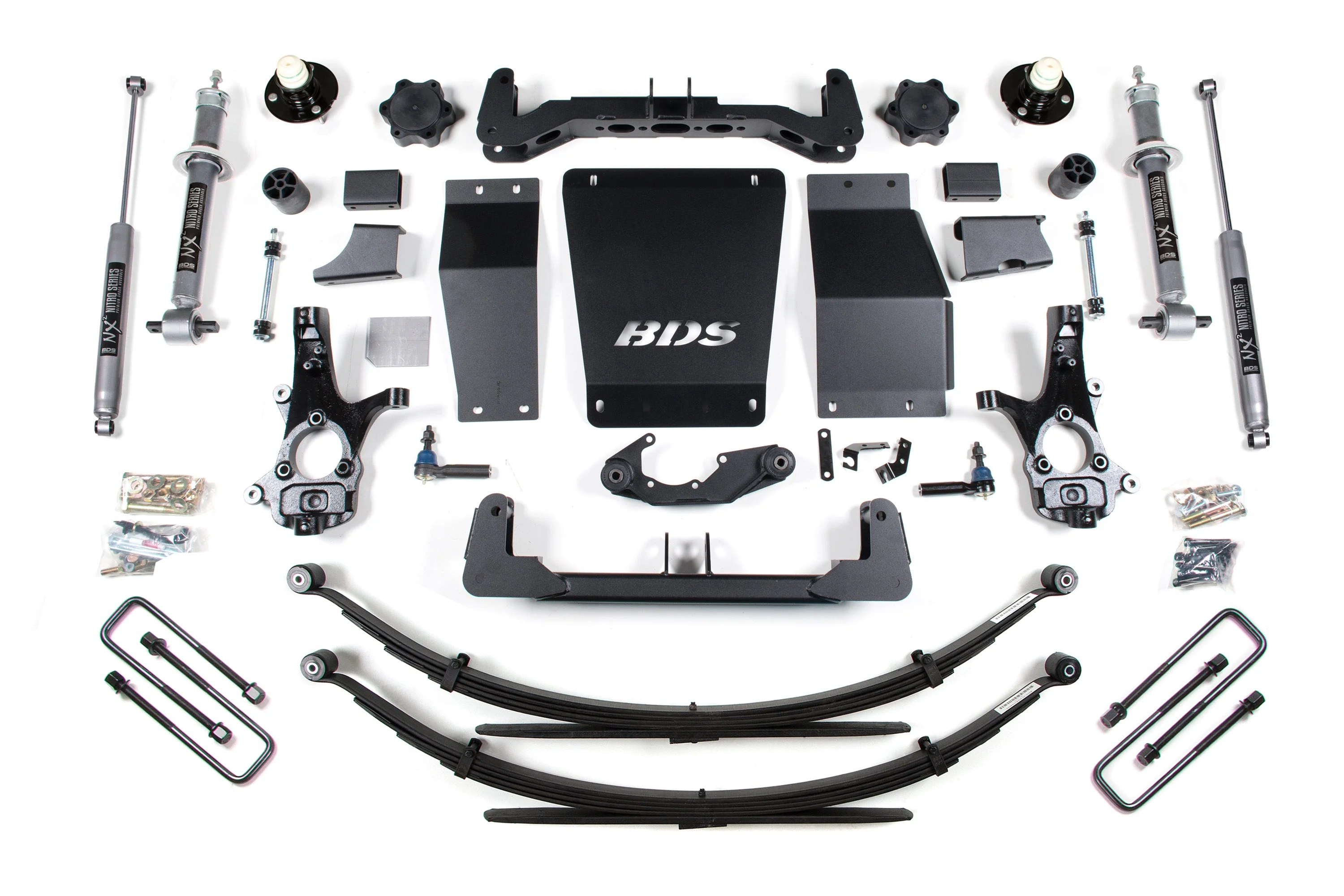

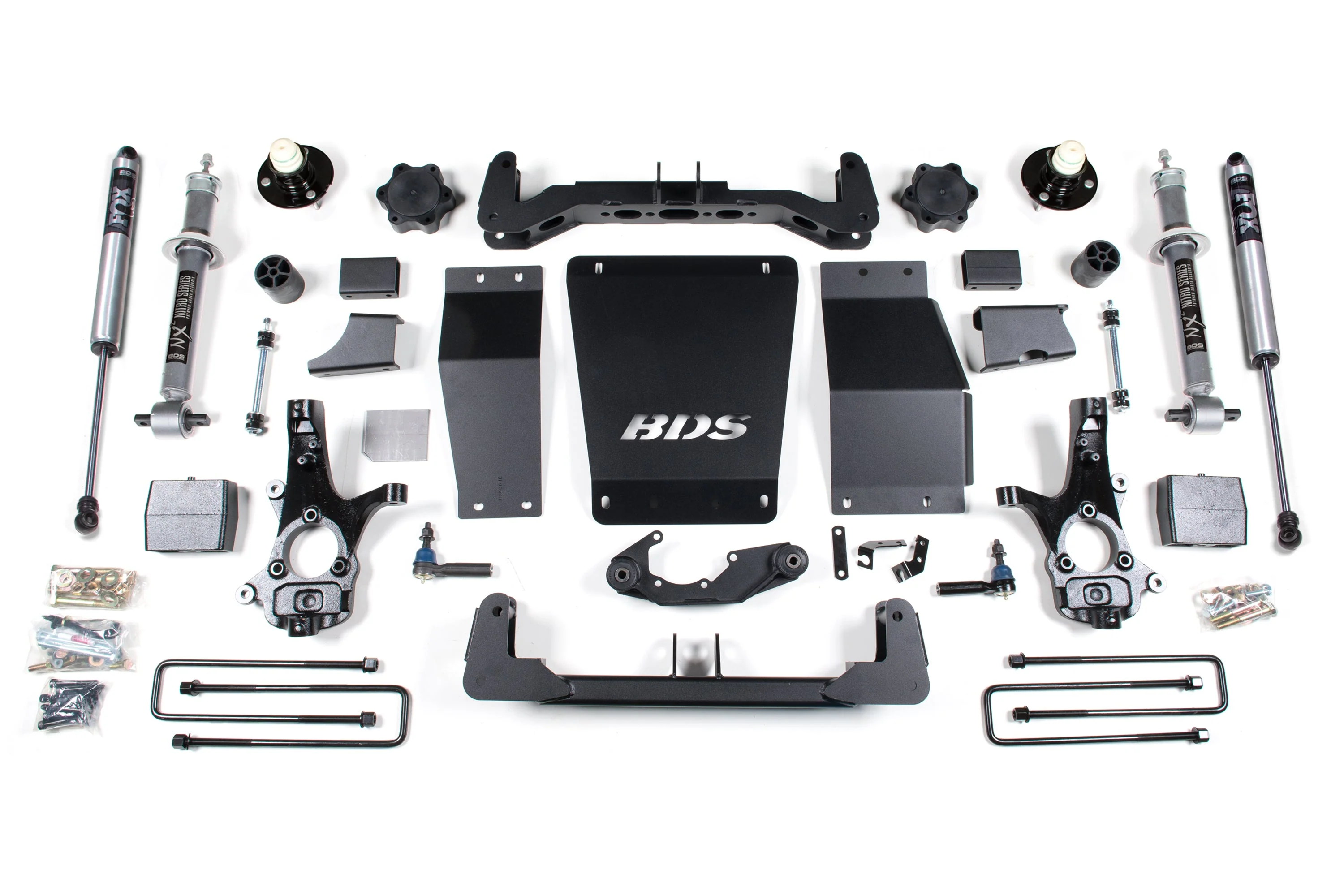

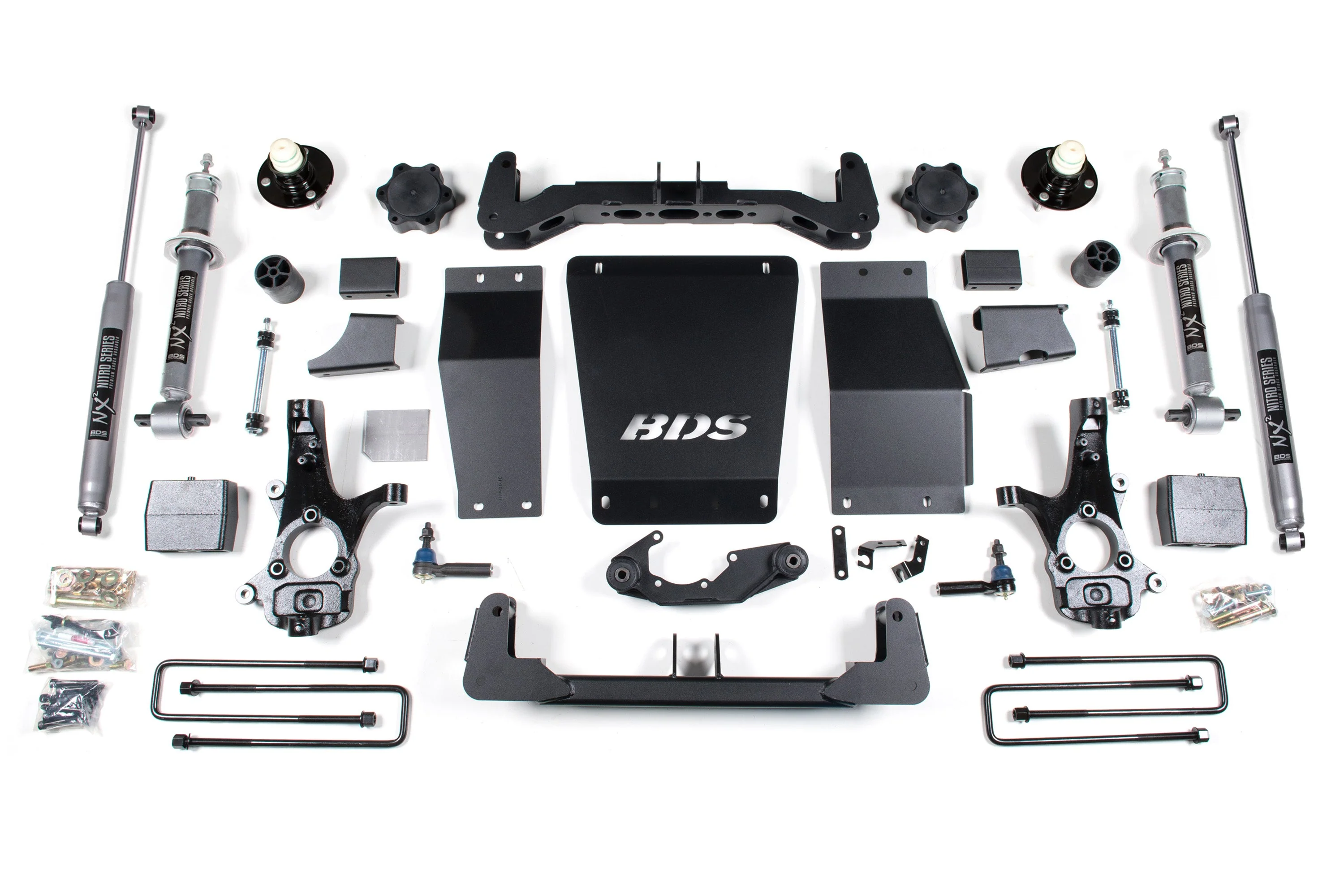

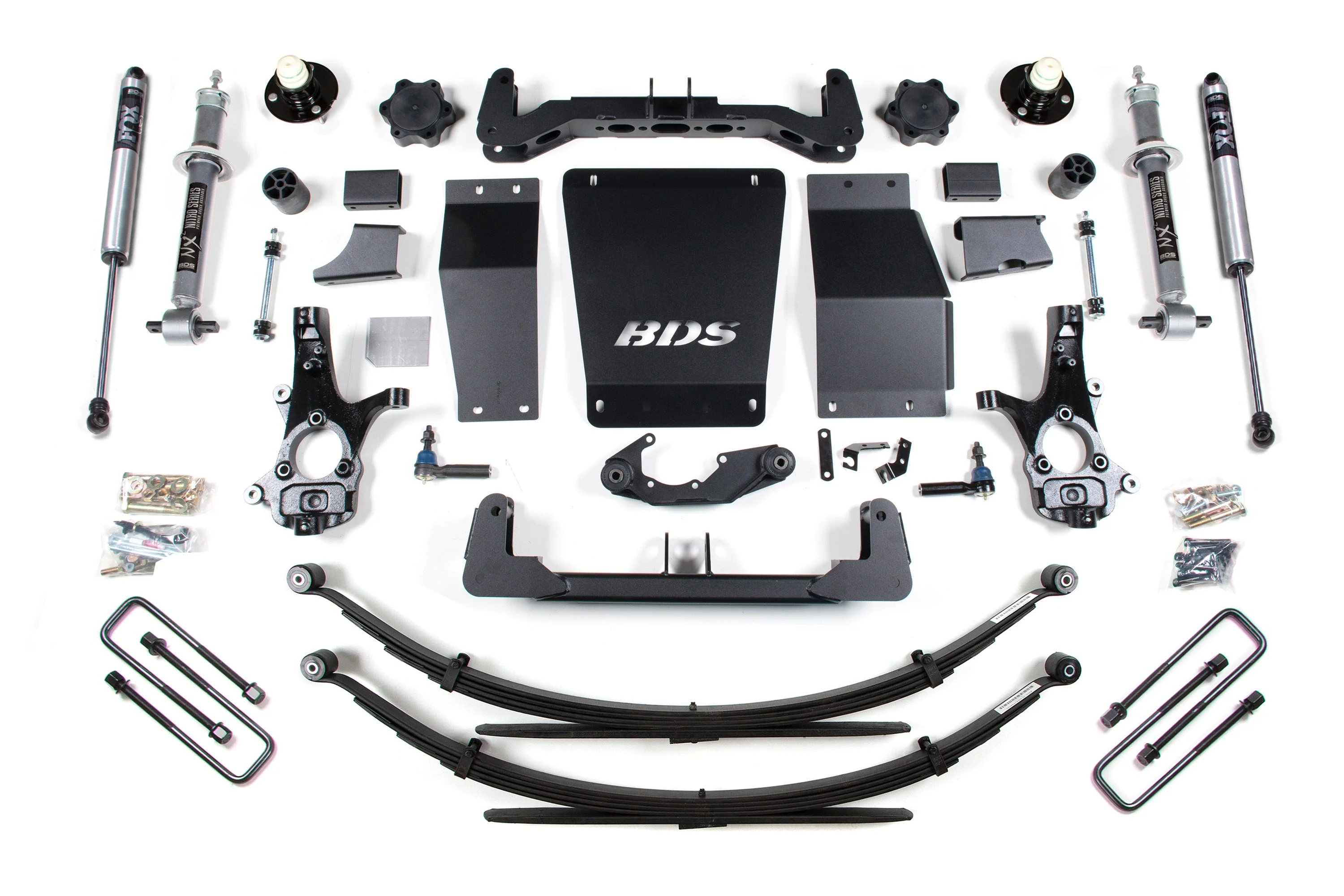

Indulge in the ultimate upgrade for your 2014-2018 Chevy Silverado and GMC Sierra 1500 with the impressive BDS 6-inch lift kit. Designed to elevate stance, performance, and capability, this exclusive kit includes all the essentials for a proper setup with clearance for 35" tires. Featuring BDS's renowned high-clearance design for enhanced ground clearance and strength, as well as superior off-road protection, this kit also corrects suspension and steering geometry for impeccable on-road handling.

The front of the kit utilizes full-length replacement strut shocks, high-arched 1/4-inch thick steel crossmembers, multiple differential relocation brackets, and heavy-duty skid plates for unrivaled off-road safeguarding. Precise steering geometry is achieved at the taller ride height with precision-machined ductile iron steering knuckles.

To complete the enhanced lift, sway bar drops, bump stop extensions, brake line brackets, CV spacers, and top-quality hardware are included, providing a smooth install experience.



High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.

Features & Benefits
  • High clearance crossmember design maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • Factory Protection Plus drivetrain warranty included
Recommended Tires & Wheels

(Trimming may be required)

  • 33 x 12.5 with 17 x 8 and 4.5 in. Backspace
  • 34 x 12.5 with 18 x 9 and 5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 5.75 in. Backspace
Factory Control Arm Type

*IMPORTANT*: GM is producing several knuckle/control arm configurations in 2014-2018 models trucks. Cast Steel control arm equipped models will require the "Cast Steel Control Arm" kit. Stamped Steel and Aluminum control arm equipped models will require the "Aluminum Control Arm" kit. Be sure to verify which factory control arms your truck has before ordering by referencing the help images in each tab below.

Rear Lift Option
5 Inch Block Kit
  • The 5" rear block replaces the factory 1-1/4" block
  • Nets 4" of rear lift to level the vehicle.
  • Made of cast iron for high strength.
  • Designed to provide correct pinion angles.
Leaf Springs
  • Eliminates any need for a lift block.
  • Reduces axle wrap and creates a more controlled and stable feel.
  • Multi-leaf progressive design for a smooth ride.
  • Maintains factory payload weight ratings.
Rear Shock Option
NX2 Nitro Series
  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish
FOX 2.0 Performance Series
  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish



SKU: BDS711FS 2014-2018 Chevy Silverado + GMC Sierra 1500 4WD 6-Inch Lift Kit

Select Factory Control Arm Type
Select Rear Lift Option
Select Rear Shock Option
From $2,097.65
6-Inch Lift Kit for 2014-2018 Chevy Silverado + GMC Sierra 1500 4WD—
$2,097.65

Product Information

Shipping & Returns

Description

Indulge in the ultimate upgrade for your 2014-2018 Chevy Silverado and GMC Sierra 1500 with the impressive BDS 6-inch lift kit. Designed to elevate stance, performance, and capability, this exclusive kit includes all the essentials for a proper setup with clearance for 35" tires. Featuring BDS's renowned high-clearance design for enhanced ground clearance and strength, as well as superior off-road protection, this kit also corrects suspension and steering geometry for impeccable on-road handling.

The front of the kit utilizes full-length replacement strut shocks, high-arched 1/4-inch thick steel crossmembers, multiple differential relocation brackets, and heavy-duty skid plates for unrivaled off-road safeguarding. Precise steering geometry is achieved at the taller ride height with precision-machined ductile iron steering knuckles.

To complete the enhanced lift, sway bar drops, bump stop extensions, brake line brackets, CV spacers, and top-quality hardware are included, providing a smooth install experience.



High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.

Features & Benefits
  • High clearance crossmember design maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • Factory Protection Plus drivetrain warranty included
Recommended Tires & Wheels

(Trimming may be required)

  • 33 x 12.5 with 17 x 8 and 4.5 in. Backspace
  • 34 x 12.5 with 18 x 9 and 5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 5.75 in. Backspace
Factory Control Arm Type

*IMPORTANT*: GM is producing several knuckle/control arm configurations in 2014-2018 models trucks. Cast Steel control arm equipped models will require the "Cast Steel Control Arm" kit. Stamped Steel and Aluminum control arm equipped models will require the "Aluminum Control Arm" kit. Be sure to verify which factory control arms your truck has before ordering by referencing the help images in each tab below.

Rear Lift Option
5 Inch Block Kit
  • The 5" rear block replaces the factory 1-1/4" block
  • Nets 4" of rear lift to level the vehicle.
  • Made of cast iron for high strength.
  • Designed to provide correct pinion angles.
Leaf Springs
  • Eliminates any need for a lift block.
  • Reduces axle wrap and creates a more controlled and stable feel.
  • Multi-leaf progressive design for a smooth ride.
  • Maintains factory payload weight ratings.
Rear Shock Option
NX2 Nitro Series
  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish
FOX 2.0 Performance Series
  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish



SKU: BDS711FS 2014-2018 Chevy Silverado + GMC Sierra 1500 4WD 6-Inch Lift Kit
