6-Inch Lift Kit w/ Radius Arm for 2017-2019 Ford F-250/F-350 Super Duty 4WD Diesel

6-Inch Lift Kit w/ Radius Arm for 2017-2019 Ford F-250/F-350 Super Duty 4WD Diesel

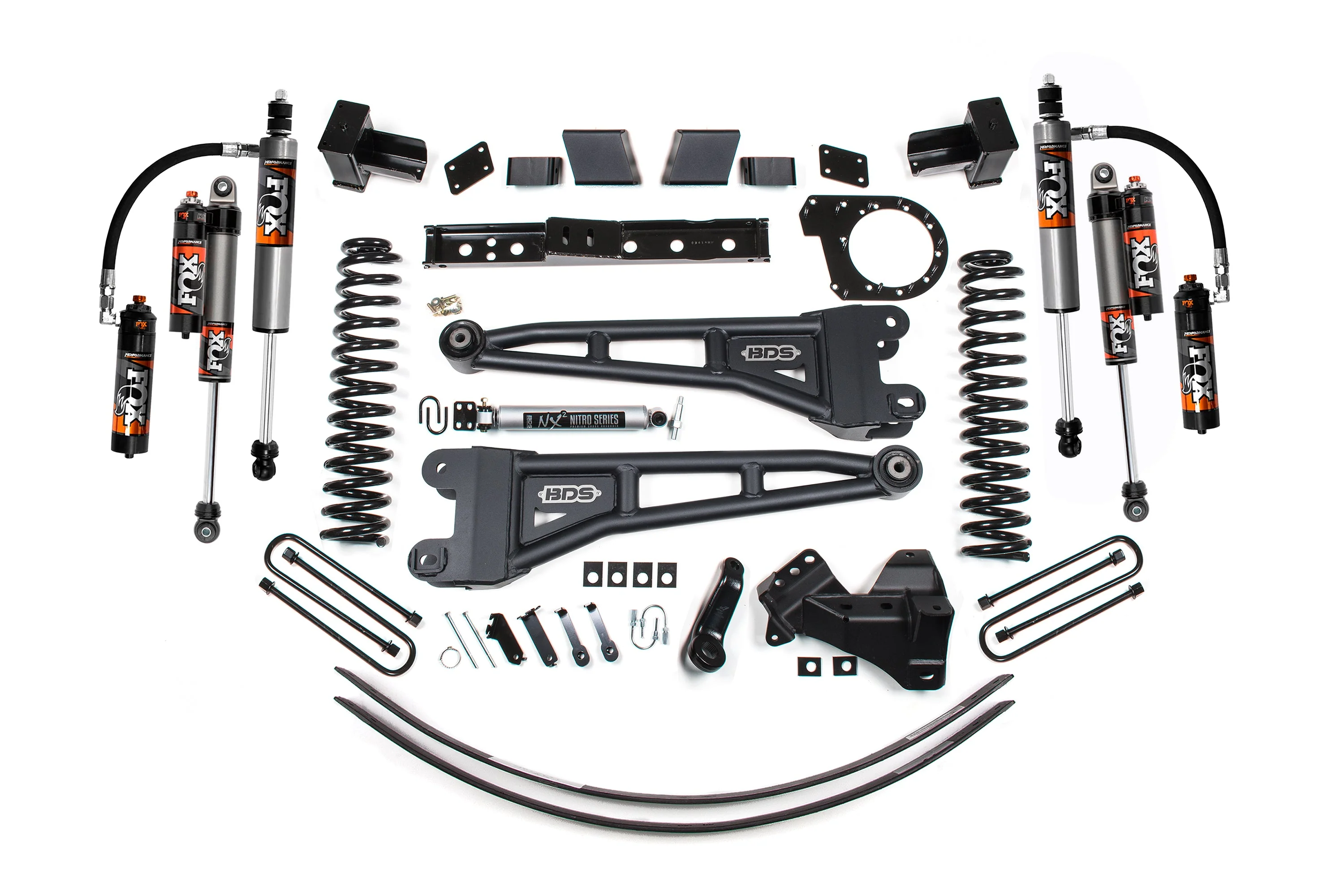

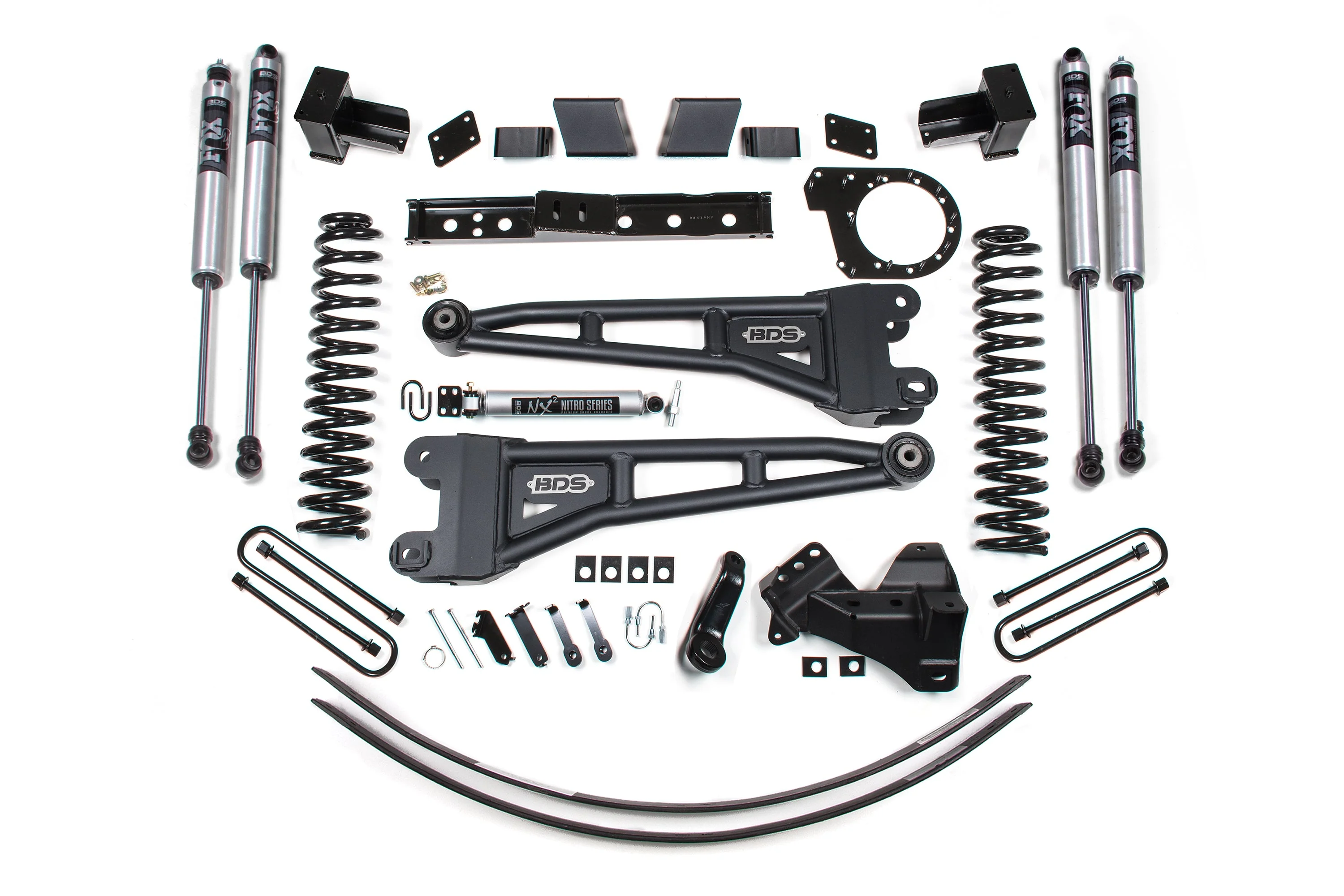

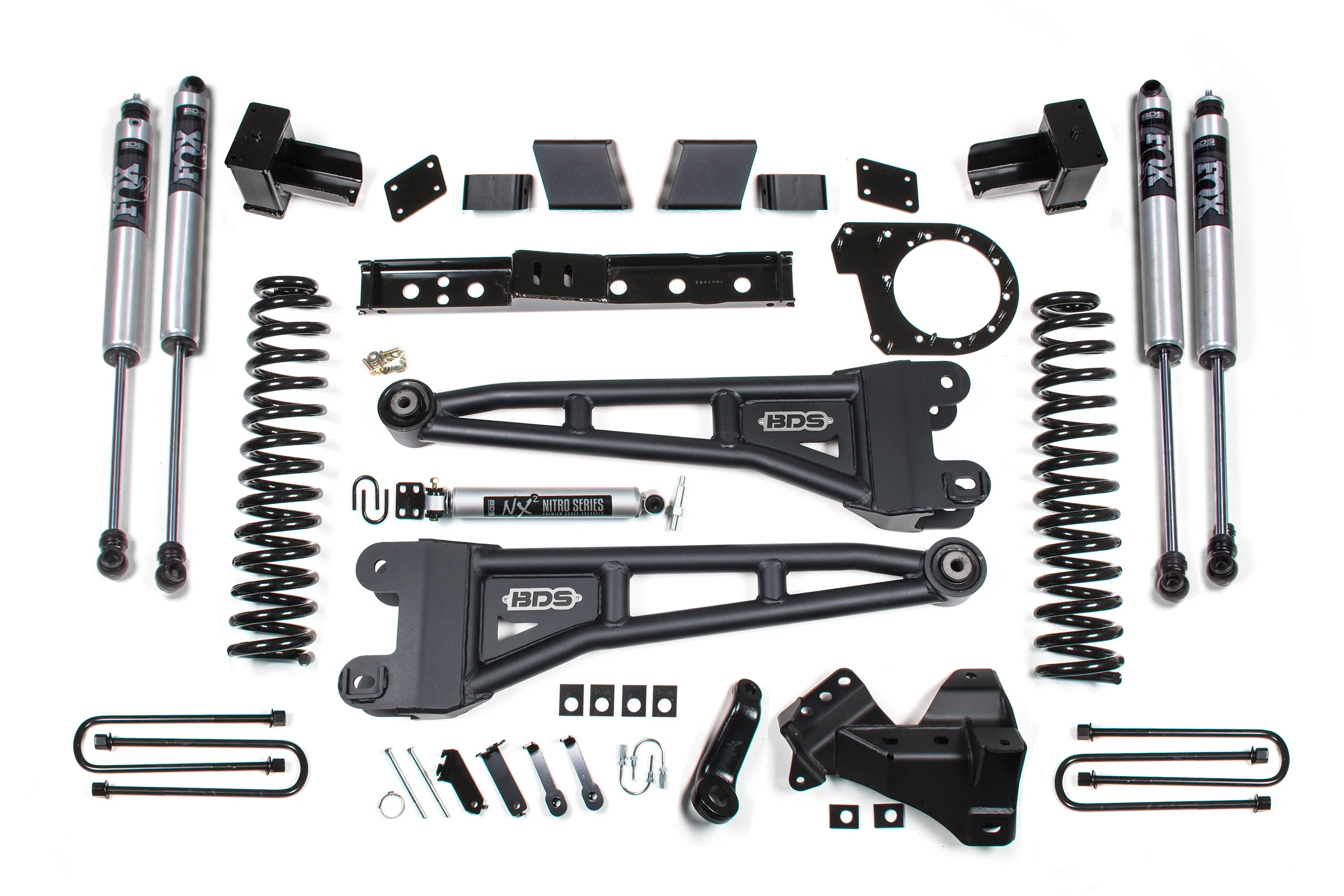

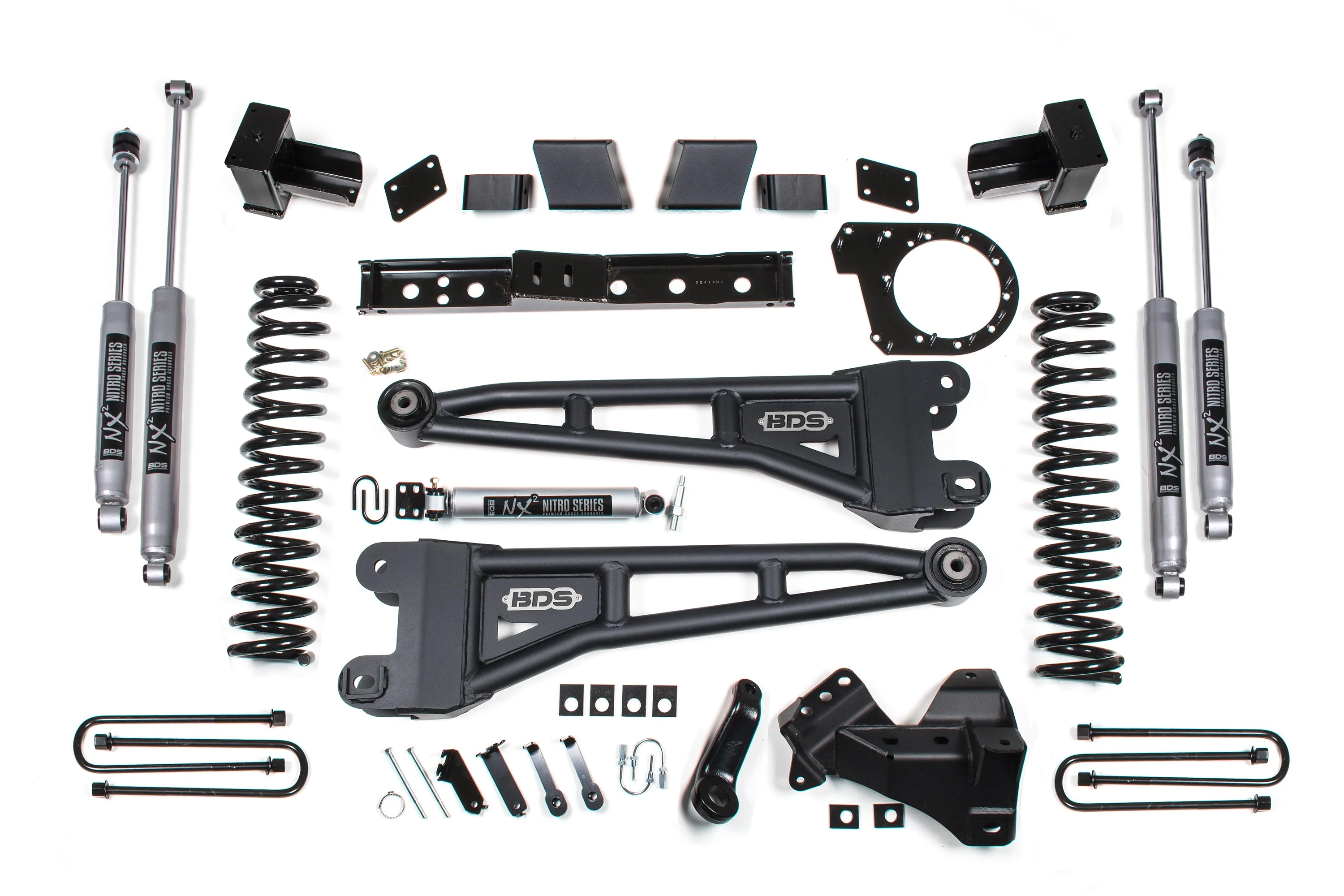

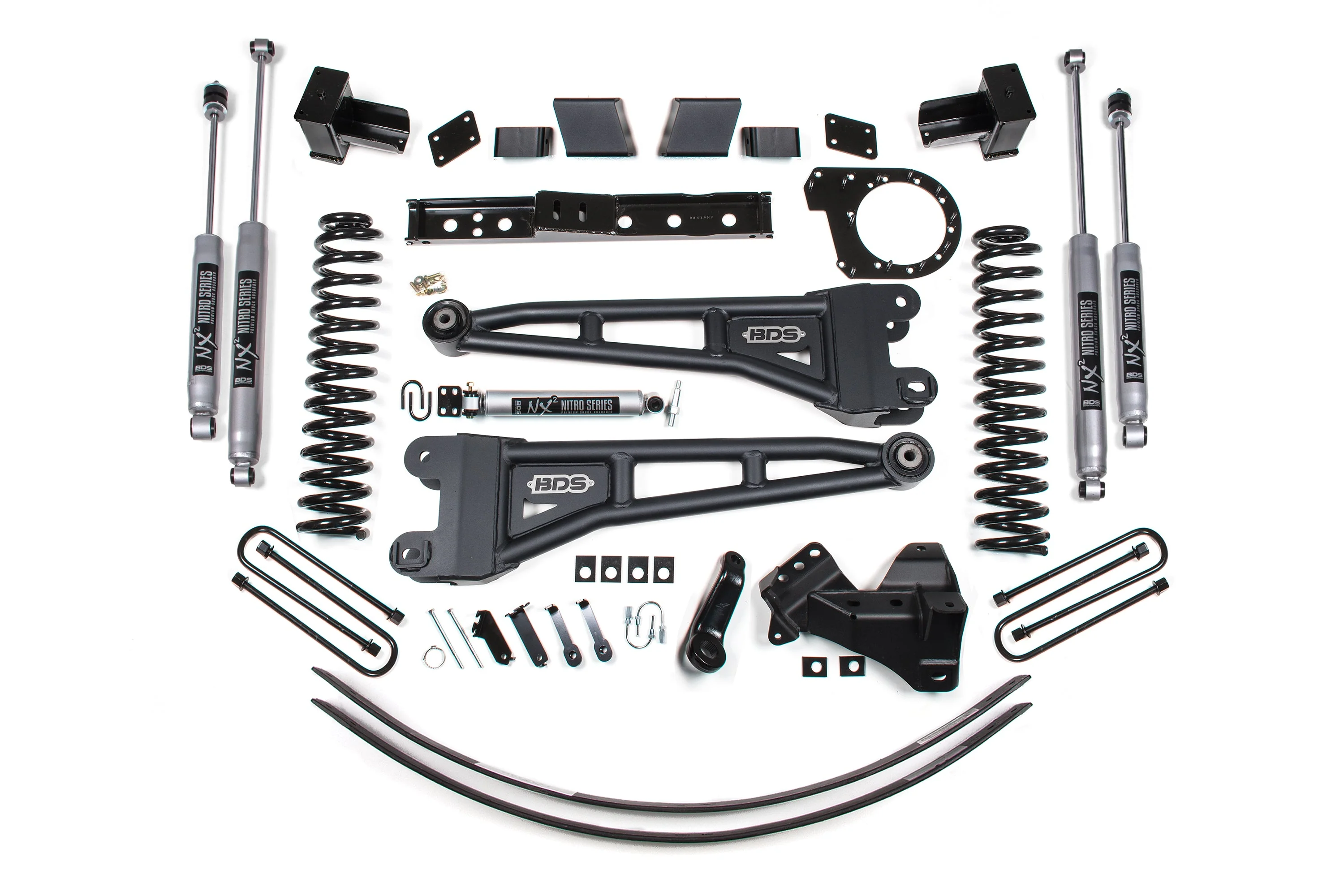

Upgrade your 2017-2019 Ford F-250 and F-350 diesel truck to its fullest potential with this 6-inch radius arm lift kit from BDS. Engineered to enhance stance, performance, and capability, this kit includes all the necessary components for a proper setup, providing clearance for up to 38" tires.

Up at the front, the kit features specially designed Pro-Ride coil springs for diesel engines, heavy-duty replacement radius arms, a forged drop pitman arm, and a track bar bracket for precise steering, along with sway bar relocation, brake line brackets, and custom-tuned nitrogen charged shocks.

For optimal use, the transfer case must be indexed at this height, and an indexing ring and new transmission crossmember are included. At the rear, this kit utilizes a durable fabricated lift block, longer u-bolts, brake line brackets, and a matching pair of NX2 Nitro or FOX Performance shocks. Elevate your truck to new levels with this luxurious lift kit

Ā

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Ā

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Ā

T-Case Indexing

At this height, driveline adjustments are necessary to allow the use of the factory driveshafts so a precision-built transfer-case indexing ring featuring ARP-studs can clock the transfer case and improve the front driveline operating angle. Additionally, a high clearance transmission crossmember supplied to allow sufficient clearance.

Ā

Rear Lift Option

Some F250/350 factory options increase the main leaf pack count from 2 to 3 leaf's (this is for top overload options only). Be sure to verify which factory leaf spring configuration your vehicle has and choose the appropriate option.

Ā

Shock Option
NX2 Nitro Series
  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish
FOX 2.0 Performance Series
  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish
FOX 2.5 Performance Elite Series
  • Increased off-road capabilities
  • Easily adjust your shock for terrain, load and speed
  • 2.5-inch Impact extruded aluminum body
  • Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
  • External reservoir design separates shock oil from the high-pressure nitrogen
  • DSC - Dual Speed Compression Adjuster comes standard
  • Fully serviceable for a lifetime of use
  • 1-year Manufacturer's Warranty

Ā

Features & Benefits
  • Easy, 100% Bolt-on installation
  • Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
  • Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Fabricated steel blocks provide level stance from front to rear
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Ā

Recommended Tires & Wheels

(Trimming may be required)

  • 38 x 13.5 with 17 x 9 and 5 in. Backspace
  • 38 x 13.5 with 18 x 9 and 5 in. Backspace
  • 38 x 13.5 with 20 x 10 and 5 in. Backspace

Ā

6-Inch Lift Kit w/ Radius Arm for 2017-2019 Ford F-250/F-350 Super Duty 4WD Diesel | SKU BDS1580FS/BDS2240FPE/BDS1580H/BDS1581FS/BDS2241FPE/BDS1581H

Select Rear Lift Option
Select Shock Option
From $711.02

Original: $2,031.50

-65%
6-Inch Lift Kit w/ Radius Arm for 2017-2019 Ford F-250/F-350 Super Duty 4WD Dieselā€”

$2,031.50

$711.02
