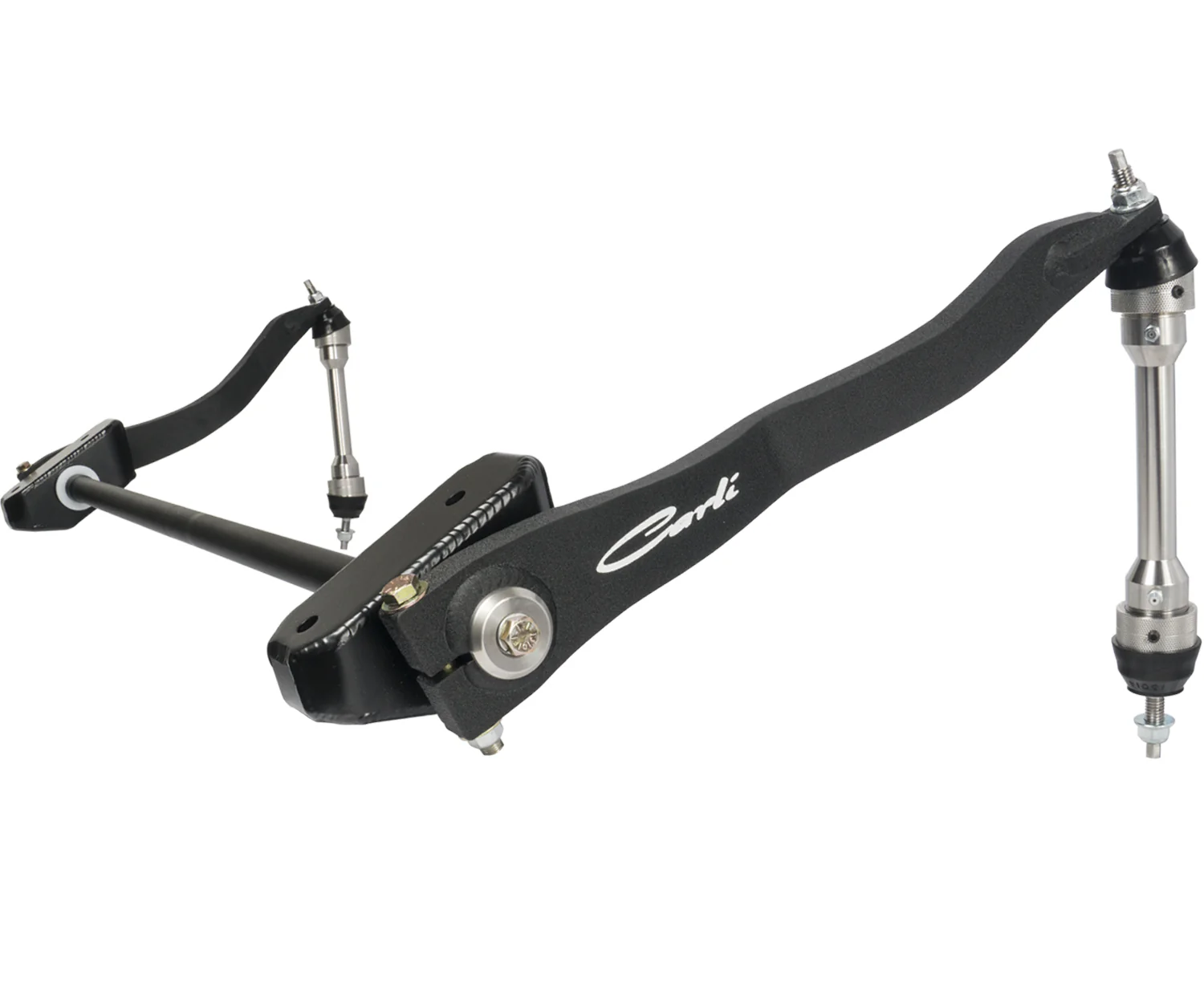

17-23 FORD F250/F350 TORSION SWAY BAR SYSTEM, 4.5" LIFT
On stock Super Duty trucks, the factory sway bar is essentially a stiff brace connecting the axle to the frame. While it limits body roll, it also transfers high-frequency vibrations from one wheel to the other, creating chatter felt in the cab on small bumps or off-camber terrain. This immobility contributes to many complaints about harsh ride quality.
Factory sway bars are designed to handle the truck at maximum payload, providing essential support for heavy loads, such as a 3,500 lb cab-over camper, while keeping the suspension composed. For trucks not regularly loaded to GVWR, the Carli Torsion Sway Bar improves ride quality without compromising control. It allows subtle side-to-side articulation before progressively engaging, maintaining stability while reducing cabin vibrations. The result is precise off-road handling and a smoother on-road feel reminiscent of independent front suspension.
Construction & Features
- Solid 3/4ā³ cold-rolled steel arms with custom-rate, heat-treated torsion bar

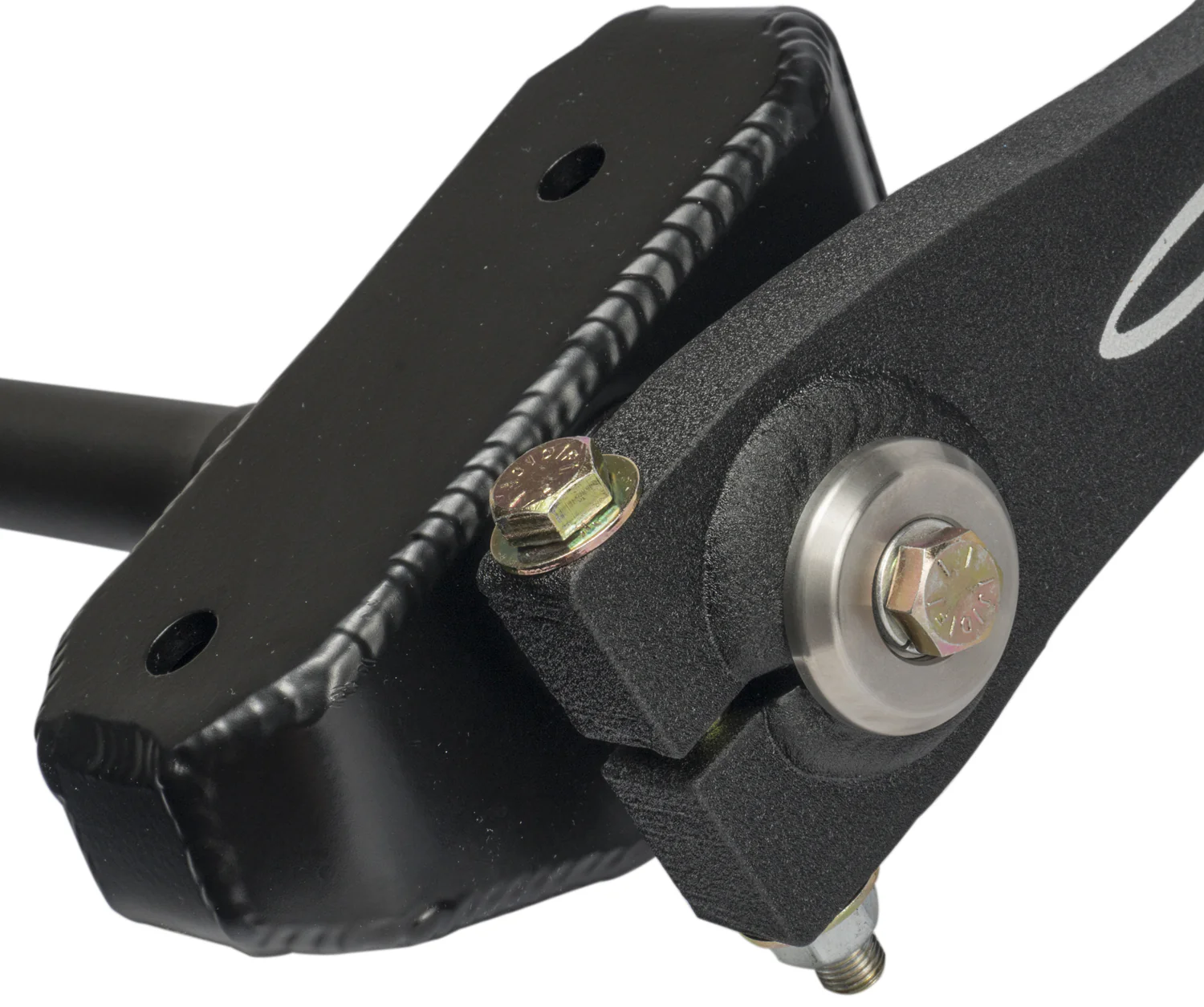

- Fully-boxed fabricated brackets with bushings positioned using included frame drop brackets
- 17-4 stainless steel preload bolts for durability
- Option for complete assembly with Carli Stainless End Links or upgrade as a direct fit replacement for trucks already using extended end links and drops
- Drop brackets specific to 2.5ā³ and 4.5ā³ lift applications

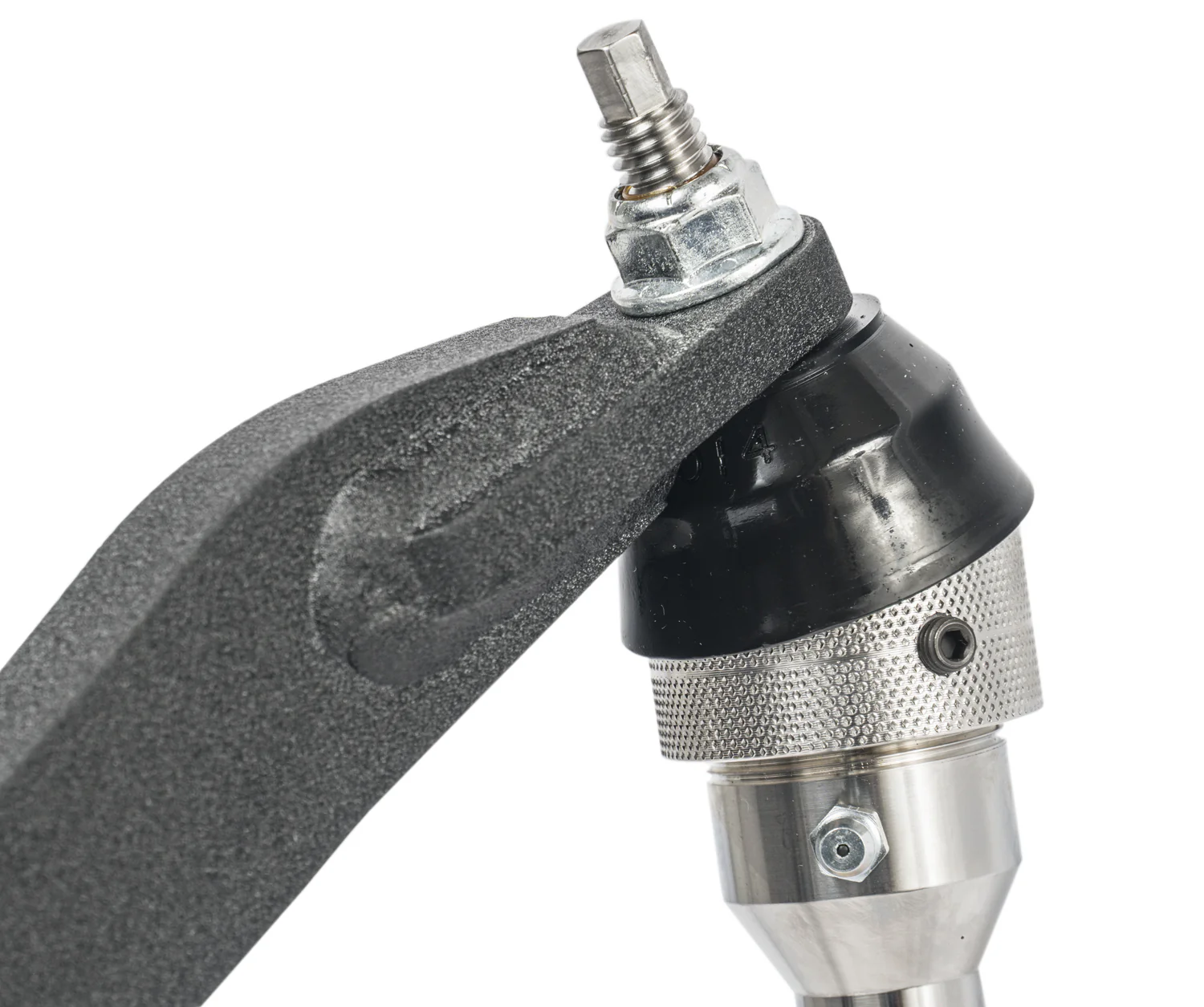

- Works in conjunction with Carli Stainless Extended End Links
- No end-link disconnects or multiple leverage holesāengineered for refined, balanced ride quality
The Carli Torsion Sway Bar is tuned to maximize both comfort and control, enhancing articulation without sacrificing stability. Itās the perfect balance between a lighter rate for improved ride quality and the stiffness needed to control body roll under load.
