Please Note: This Fuel System REQUIRES aftermarket tuning to be compatible for 2017+

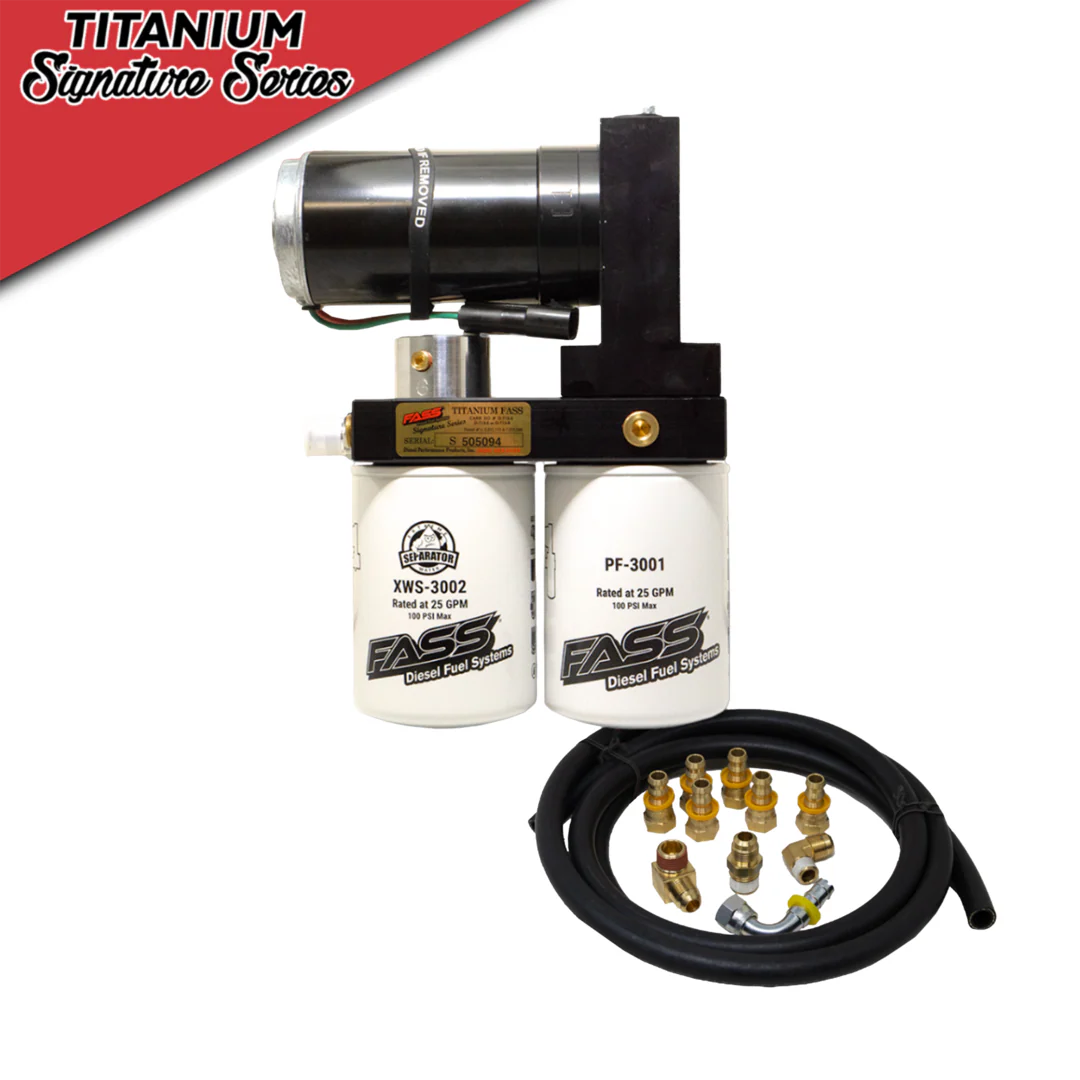

The GM diesel truck FASS Titanium Signature Series diesel fuel pump is a compact design with a very powerful motor. Manufactured to hold up to the most extreme conditions, our Titanium Signature Series pump utilizes a motor that is capable of flow rates up to 260 gallons per hour and is durable enough that we back it with our Limited Lifetime Warranty on all light duty diesel applications.

In addition to improved fuel flow, the FASS Titanium Signature Series lift pumps offer an advanced filtration method for your diesel fuel. Removing water, air and vapor in addition to debris with a filtration rating of 3 micron, far superior over your factory fuel filter. The added filtration will help improve your engines idle and extend the life of the injectors and injection pump.

FITMENT

Model Year		GPH		Part No.
2001-2010		100gph		TSC10100G
2001-2010		165gph		TSC10165G
2001-2016		250gph/8-10psi		TSC10250G
2001-2016		290gph/8-10psi		TSC10290G
2011-2014		100gph		TSC11100G
2011-2014		165gph		TSC11165G
2015-2016		100gph		TSC12100G
2015-2016		165gph		TSC12165G
2017-2019		180F/140gph/70-75psi		TSC13180F140G
2017-2019		250F/220gph/70-75psi		TSC13250F220G
2017-2019		290F/240gph/70-75psi		TSC13290F240G
2020-2024		180F/140gph/70-75psi		TSC15180F140G
2020-2024		250F/220gph/70-75psi		TSC15250F220G
2020-2024		290F/240gph/60-65psi		TSC15290F240G
