Venum Wheel

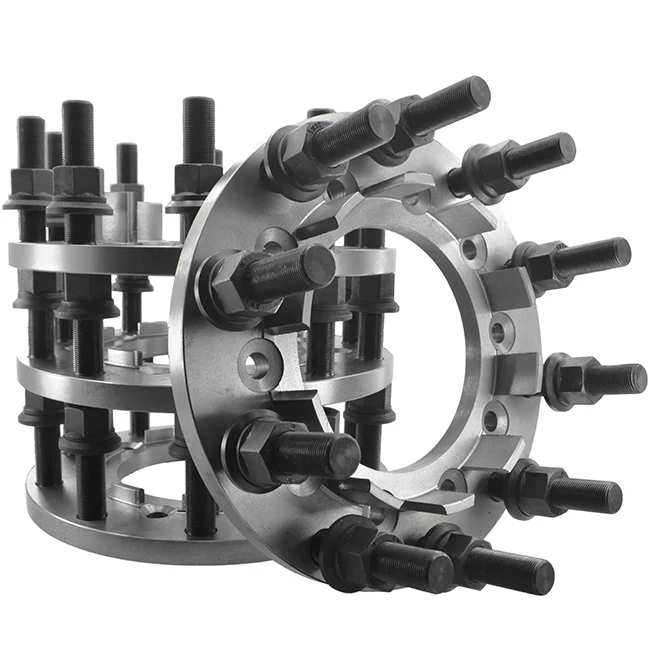

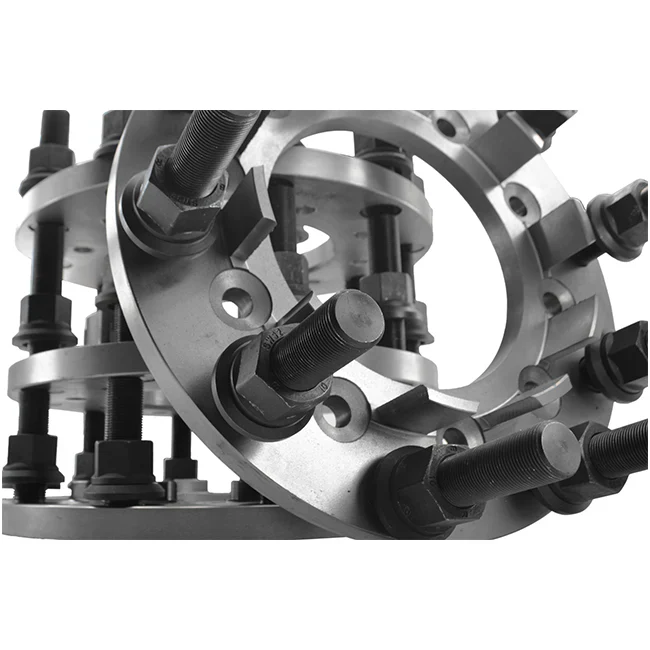

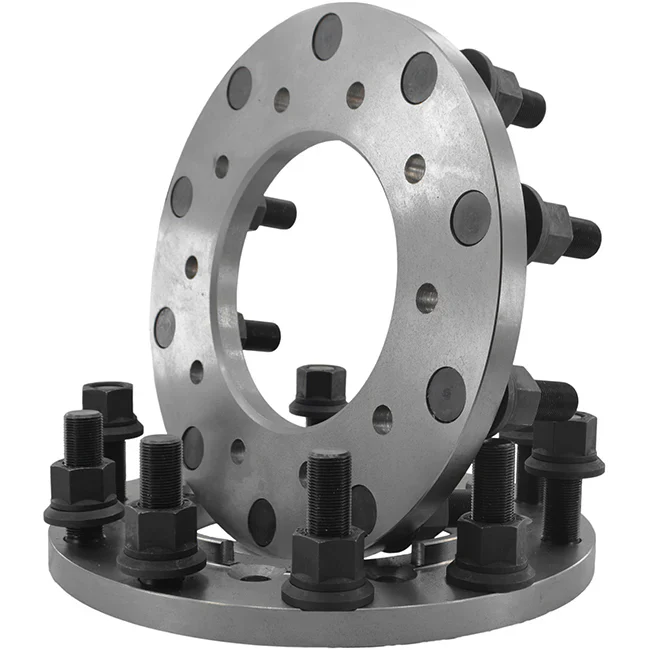

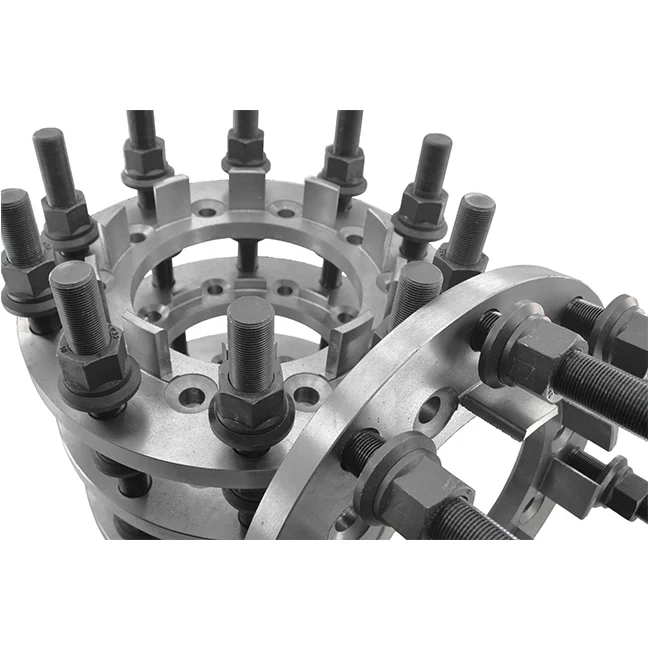

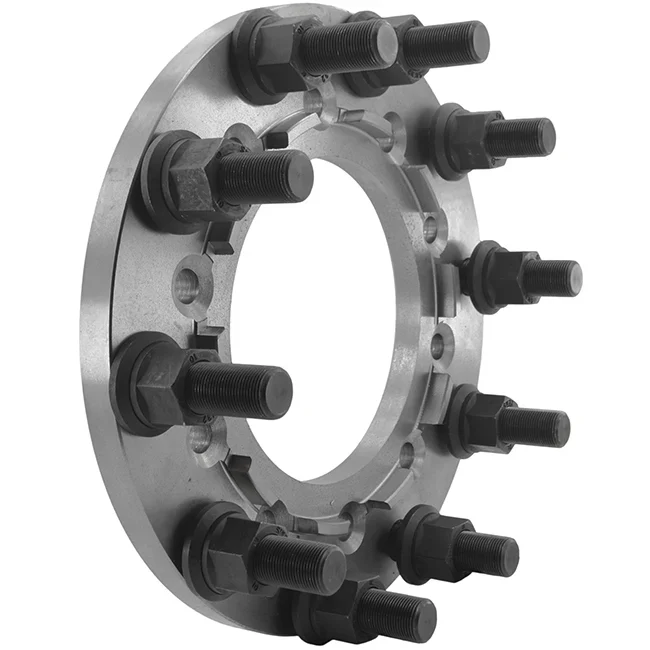

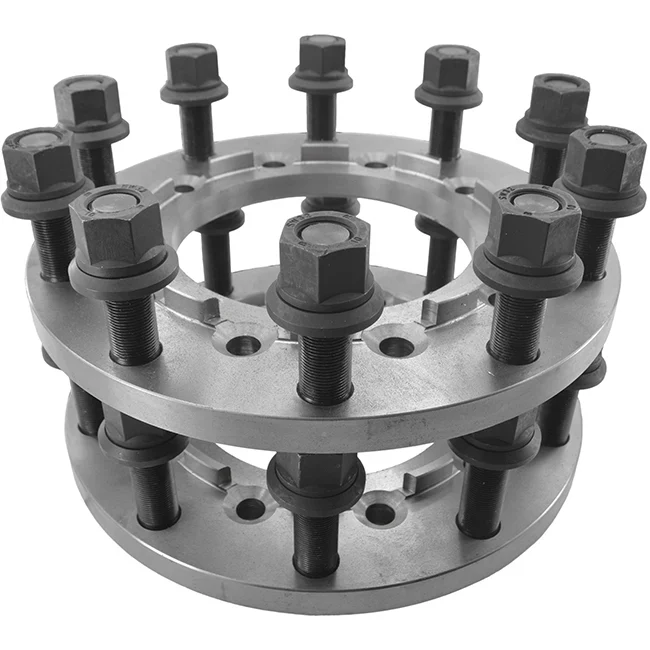

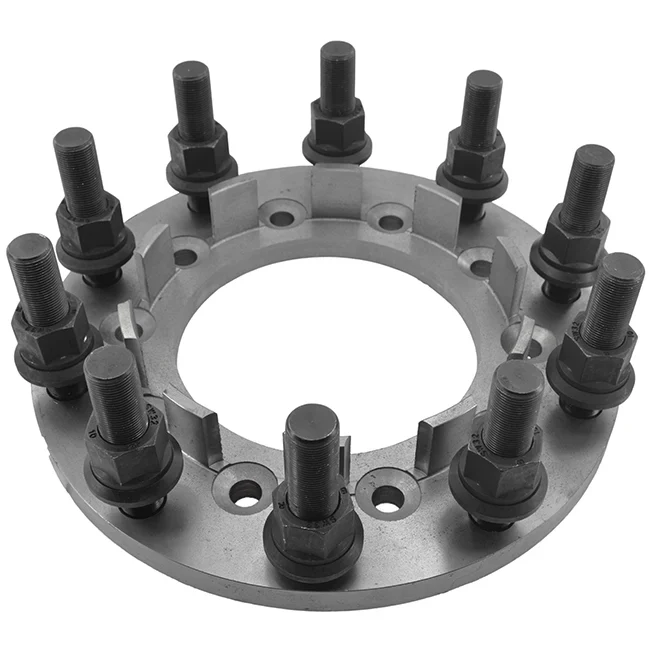

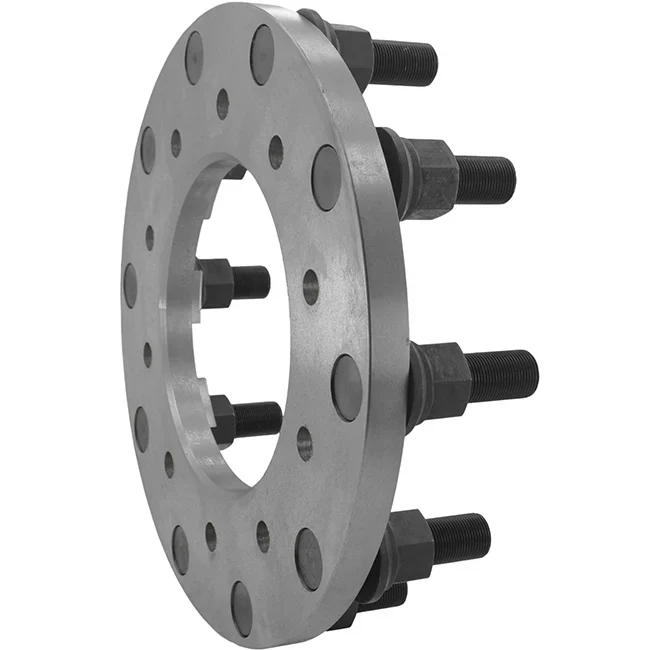

8x225mm to 10x285.75mm Steel Wheel Adapters (1" Thick)

Upgrade your truck to run true big rig wheels with these heavy-duty 8x225mm to 10x285.75mm adapters from Venum Wheel. Manufactured from USA-grade 1018 steel rolled bars, these adapters are built for extreme durability, making them ideal for towing, hauling, and high-load applications. The fully hub-centric design ensures a smooth, vibration-free ride while maintaining proper load distribution.

Designed to work with Alcoa and aftermarket wheels, these adapters allow you to safely run 22.5", 24.5", and other 10-lug wheel setups. With proven performance under loads up to 36,000 lbs, they deliver both strength and confidence whether you're working or upgrading your truck’s stance.

Key Features:

• Made from USA-grade 1018 steel rolled bars

• Converts 8x225mm bolt pattern to 10x285.75mm (big rig pattern)

• Fully hub-centric design eliminates vibration at high speeds

• Compatible with Alcoa and aftermarket wheels

• Allows use of 22.5", 24.5", and other 10-lug wheels

• Improves vehicle handling and stability

• Enhances appearance with a more aggressive stance

• Engineered for extreme-duty use and safe towing

• Tested with towing loads up to 36,000 lbs

• Installation hardware included

Specifications:

• Vehicle Bolt Pattern: 8x225mm

• Vehicle Hub Bore: 170.1mm

• Wheel Bolt Pattern: 10x285.75mm

• Wheel Bore: 220.1mm

• Thread Pitch: 22x1.5

• Thickness: 1"

• Front Wheel Lip: 0.50"

• Rear Wheel Lip: 1.50"

• Material: 1018 Steel

• Hardware: 10.9 Grade

• Weight: Front 32 lbs | Rear 38 lbs

• Finish: Raw Steel (Powder Coating Available)

• Torque Specs: Factory Specs Recommended

• Pressed-in studs and lug nuts included

Notes:

• New wheels being installed must be 10x285.75mm

Vehicle Fitment:

• 1998–2004 Ford F-450
• 1998–2004 Ford F-550

SKU: VENUM-8X225-10X285-1IN
