Front 4x4 LT KIT INCLUDES

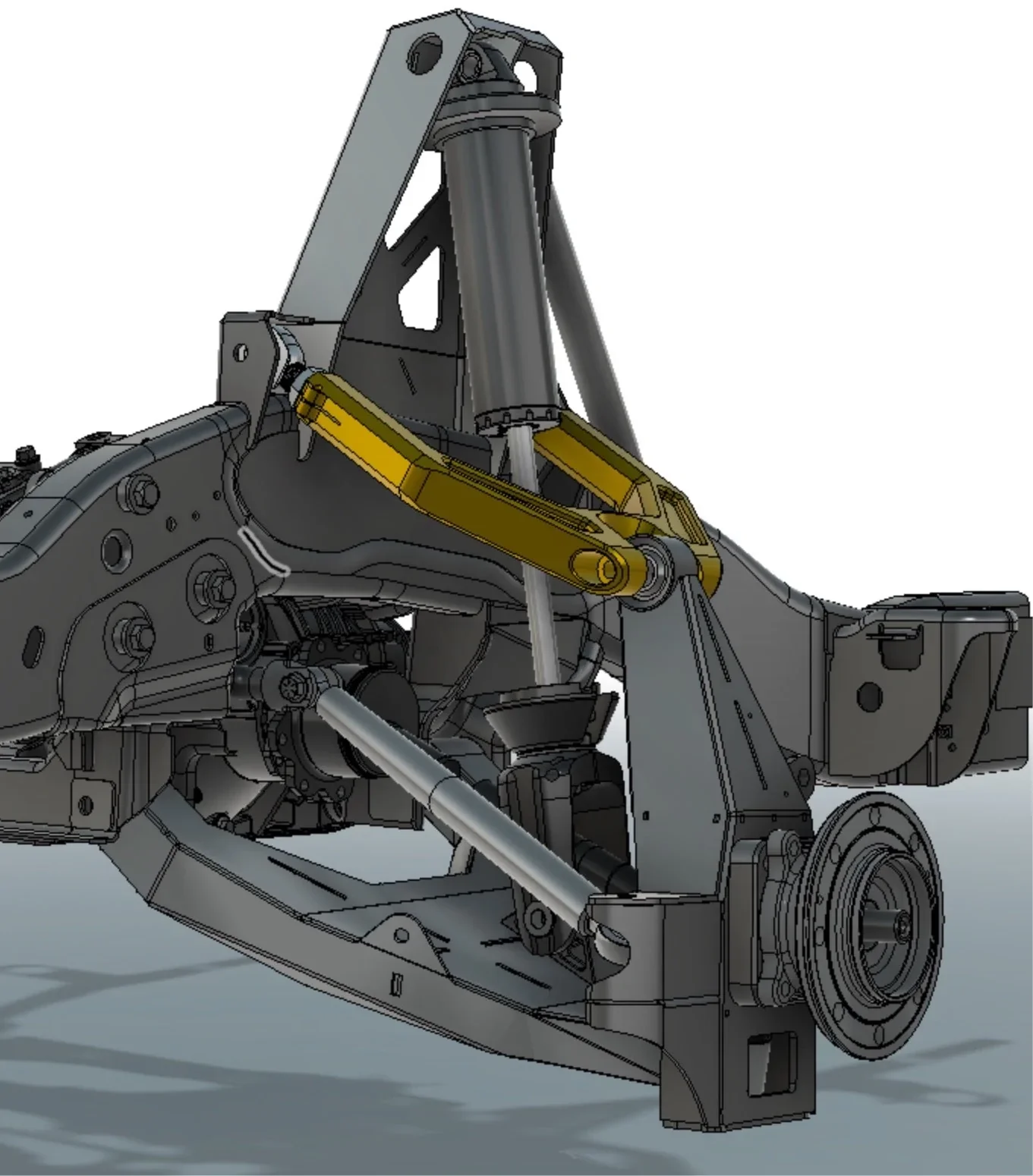

• ALL NEW DESIGN (see first 2 cad model pictures)
• CNC machined Billet aluminum upper control arms
• CNC machined Billet aluminum tie rods
• Fabricated 4130 TIG welded lower control arms
• Fabricated/CNC machined 4130 TIG welded spindles
• CNC machined 4130 lower shock clevis mount
• Custom 300m axles
• Weld on upper arm/shock mount for 8'' stroke 3.0'' coilover
• All FK rod ends, uniballs, steering clevises and stainless misalignment spacers
• Hardware option comes with all RPI 12pt aircraft hardware +$2400 VALUE
• Hardware option Also comes with new KIBBETECH limit straps
• "No hardware" option will exclude RPI 12pt bolts and limit straps

SPECS

• Standard kit is 12'' travel with 8'' stroke shock with supplied plate shock tower.
• Up to 16'' travel with 10'' stroke shock-This requires the moving of EVERYTHING in wheel well area for shock mount room and tire clearance and DOES NOT use the plate shock mount kit. You will have to fabricate your own shock mount.
• Up to 40'' with a lot of work
• Clears 37'' tire with minimal work
• Requires fiberglass fenders

SHOCK SPECS-

When choosing with shocks you will be ordering a set of KING 3.0''x8'' coilovers with compression adjusters GOLD anodize, Black cerakote body, Clevis shock end with axle pass through, remote Gold resi.
Extra options are available at extra cost.

• NO REFUNDS!
• NO RETURNS!
• THE VENDOR PARTS FOR THIS KIT ARE ALL BUILT TO ORDER!
• SHOCKS ARE 3+ MONTHS OUT SO WE RECOMMEND ORDERING NOW!
