LOGIQ Air Spring Kits are carefully engineered for each truck to utilize the latest air spring technology, providing the ultimate blend of ride quality and load stability, in a 100% factory assembled and READY to install package. This kit is designed to provide more than enough load support for your GM half-ton, easily mounting over the axle with a durable single air sleeve configuration. This kit provides maximum travel while still utilizing your factory bumpstops.

WARNING - Never exceed manufacturer's Maximum Payload or GVWR

If vehicle is lifted in rear, add spacer kit 88-91003 or 88-91006. Includes heat wrap kit for tailpipe.

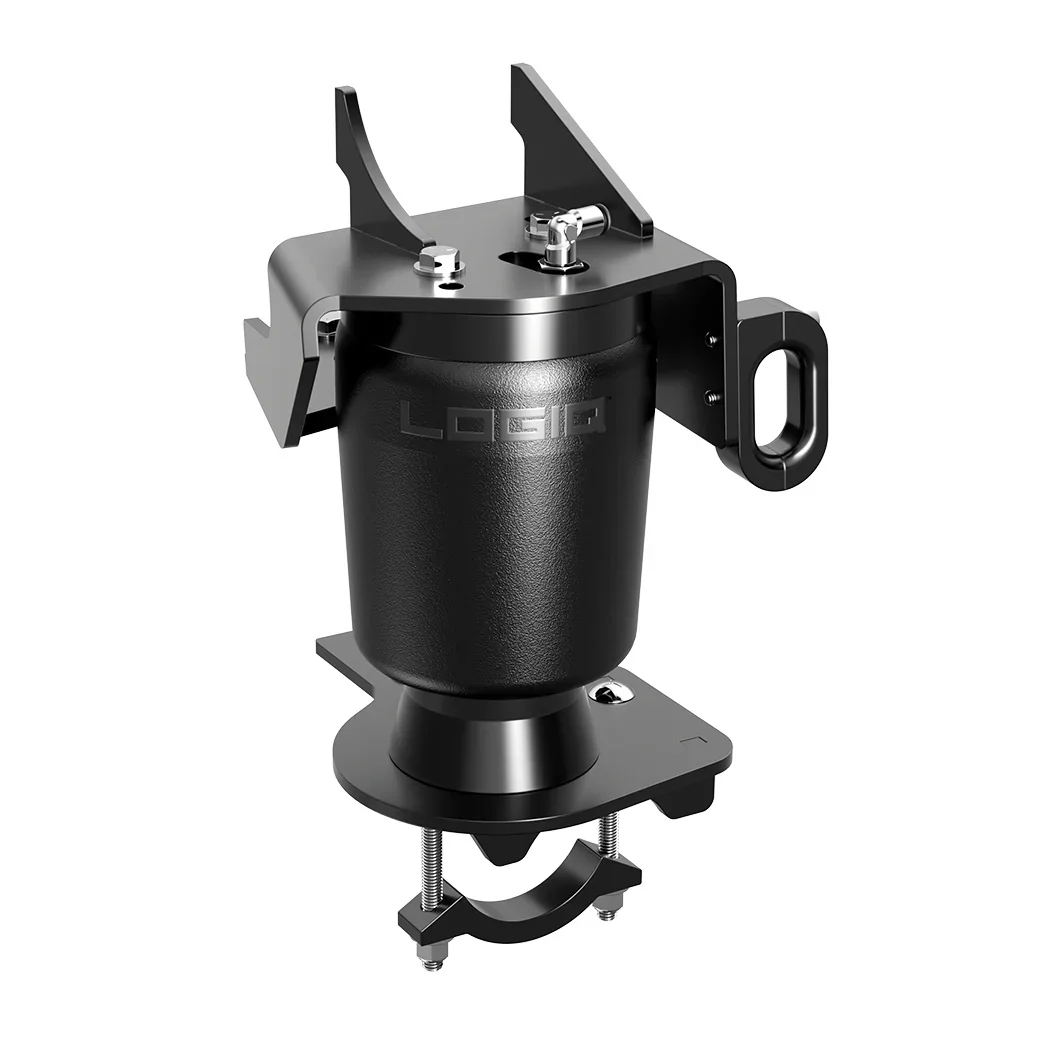

(1) Driver Side Air Spring Assembly
(1) Passenger Side Air Spring Assembly
(1) Hardware Kit
(1) Manual Inflation Kit
(1) Exhaust Heat Wrap Kit

Air Spring Location: Axle Mounted Inboard Frame Rails
Air Spring Quantity: 2
Load Capacity: 3,200 lbs @ 150 psi
Maximum Pressure: 150 psi
Minimum Pressure: 10 psi
