Ford 1988-97 F-250/350 Fabricated Blocks

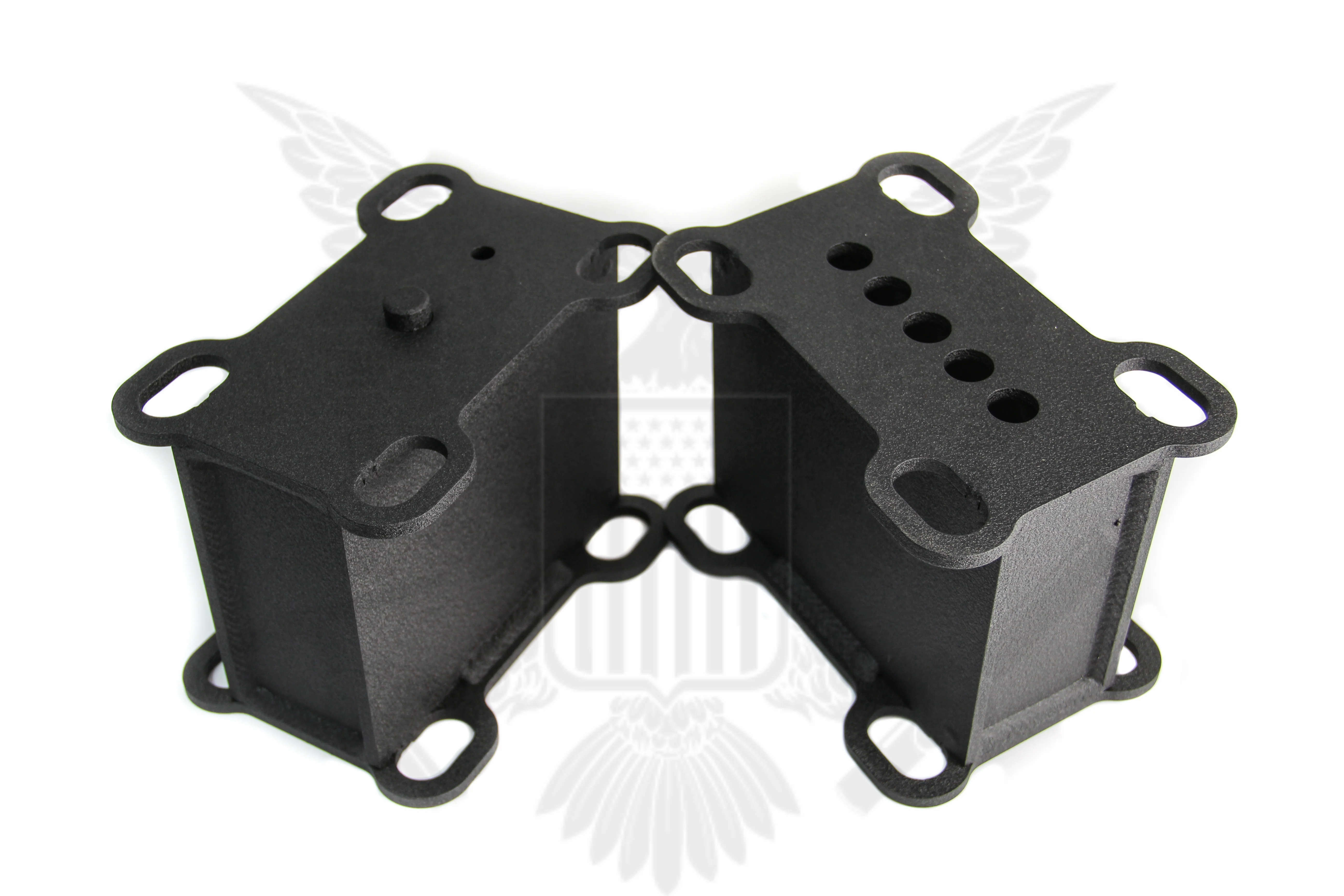

PMF Ford 1988-97 F-250/350 Fabricated Blocks are built for customers who want a stronger, safer, and cleaner rear lift solution than stacked blocks. These heavy-duty fabricated blocks incorporate the U-bolts for an extremely solid and secure setup, helping prevent block shifting and reducing the risk of failure. Built for trucks with a 3-inch wide leaf, they are hand welded from 1/4-inch material to deliver exceptional strength and quality.

These blocks are offered in 1/2-inch increments so you can dial in your truck’s stance exactly how you want it. Multiple pin locations allow axle positioning adjustments when needed to better center the axle in the fender well, and PMF also offers optional bumpstop tabs, air bag tangs, and custom U-bolts to further tailor the setup to your application.

Key Features

• Designed for 1988-1997 Ford F-250 and F-350 applications

• Fits trucks with a 3-inch wide leaf spring

• Heavy-duty fabricated construction

• Hand welded from 1/4-inch material

• Sold as a pair

• Built with integrated U-bolt design for a more secure setup

• Available in 1/2-inch height increments for precise stance adjustment

• Multiple pin locations allow axle repositioning as needed

• Designed to accept up to 3/4-inch U-bolts

• Optional bumpstop tang available

• Optional inboard air bag tang setup available

• Optional custom length and larger diameter U-bolts available

Specifications

• Block height is measured at the center directly over the axle

• Pinion angle is selectable based on application needs

• Pinion angle requirements may vary depending on year, bed length, and driveshaft type

• 3/4-inch U-bolt orders automatically include new top plates

• Blocks do not include U-bolts or top plates unless specifically noted with a 3/4-inch U-bolt order

Notes

• Adjustable U-Bolt Top Plates are required if using the multiple pin locations to reposition the axle

• PMF recommends reviewing the driveline angle chart in the related images or contacting sales for help selecting the correct pinion angle

• Bumpstops may not be functional on some lifted applications because the tire may contact the body before the bumpstops engage

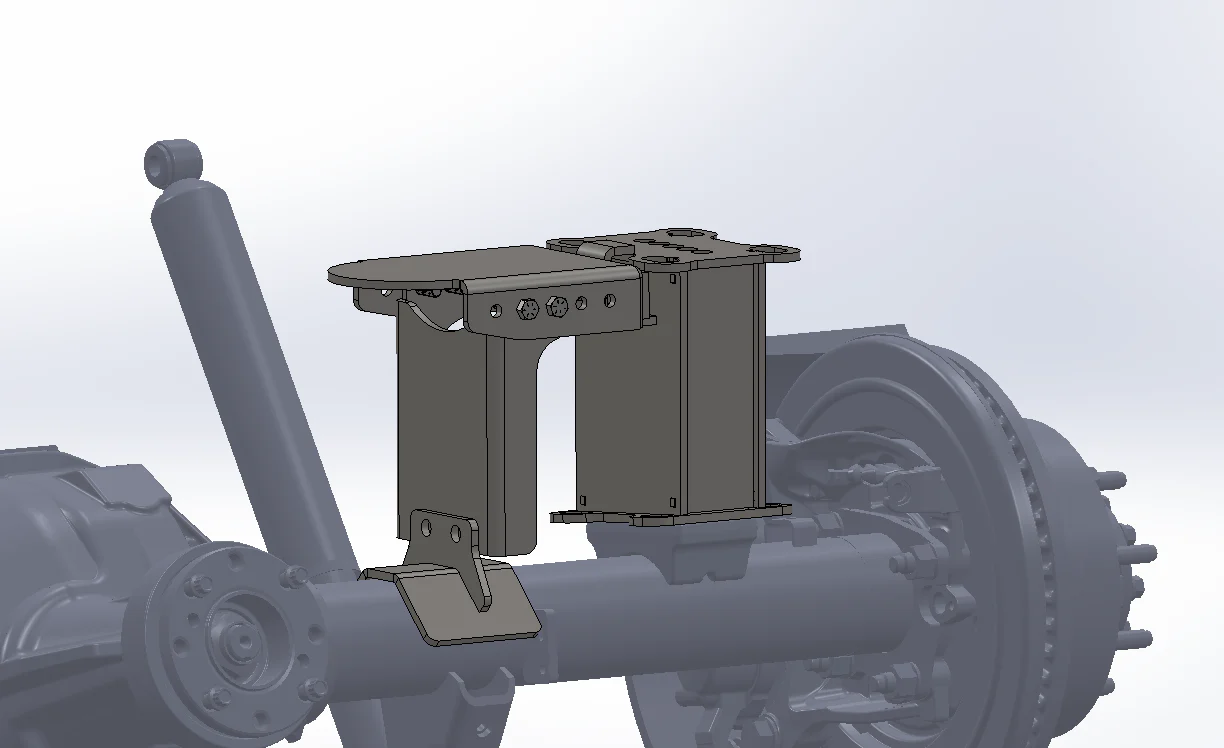

• Air bag tangs require the installer to locate and drill mounting holes as needed for the specific air bag setup and support brace

• PMF offers added support to the axle tube for higher-capacity air bag systems, including Airlift 7500 applications

• These blocks are custom built to order

• Typical lead time is around 5-7 business days

• Special arrangements may be available by contacting PMF directly

• These are considered custom order items and are non-returnable

• If you are unsure what configuration to order, contact PMF directly for assistance

Vehicle Fitment

• 1988-1997 Ford F-250

• 1988-1997 Ford F-350

SKU: PMF-FBLK30-
