Venum Wheel

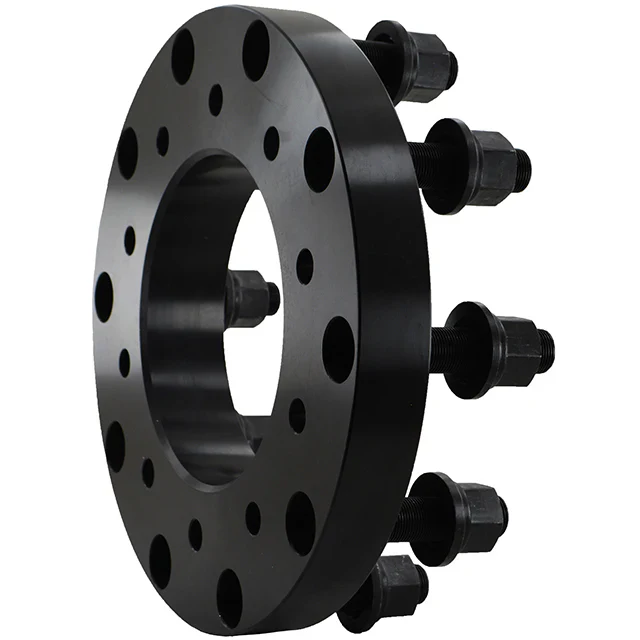

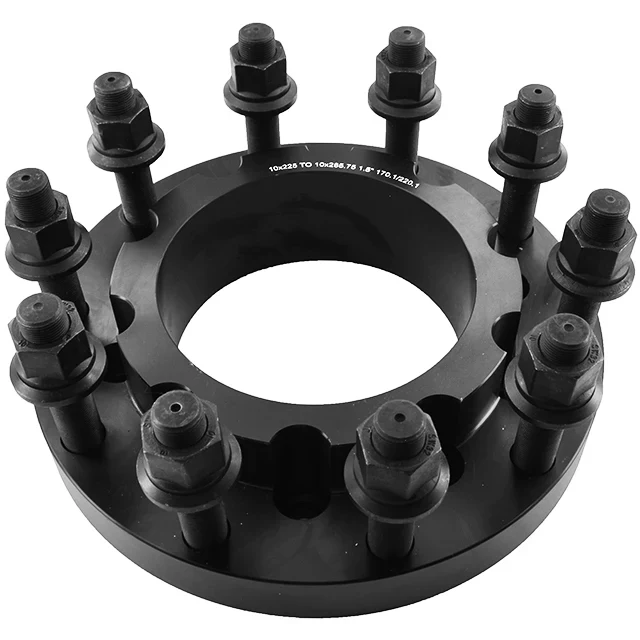

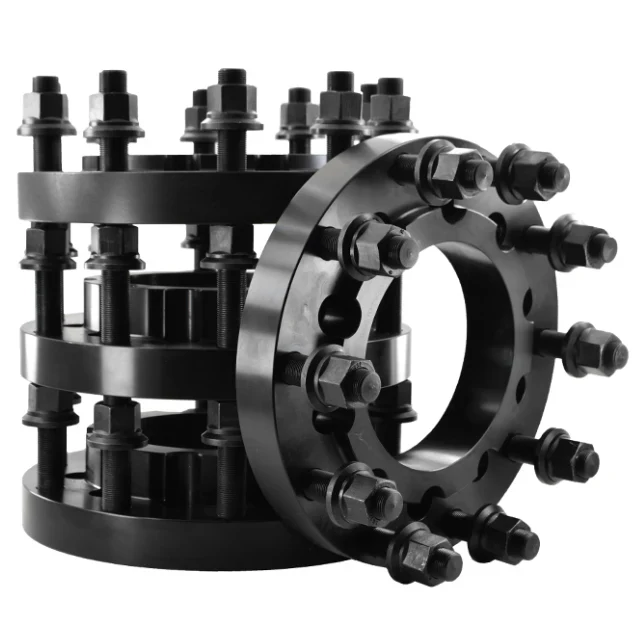

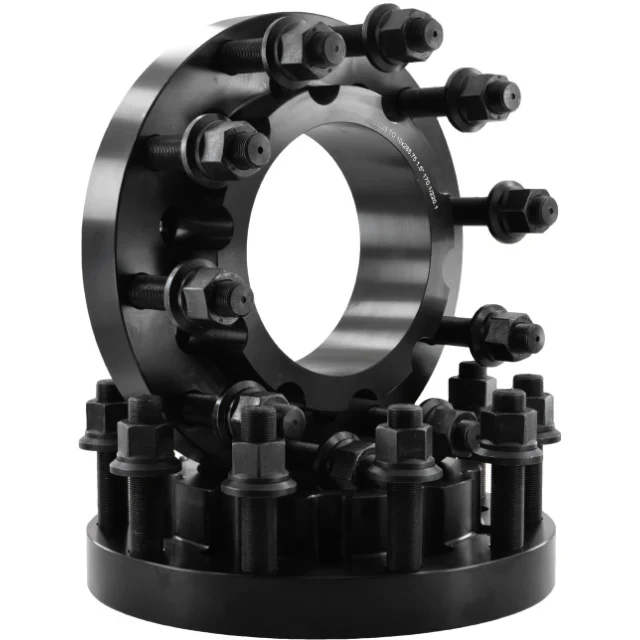

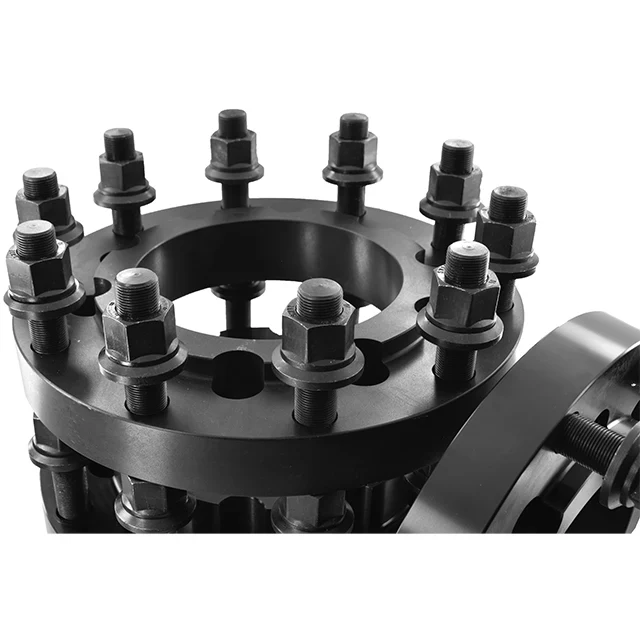

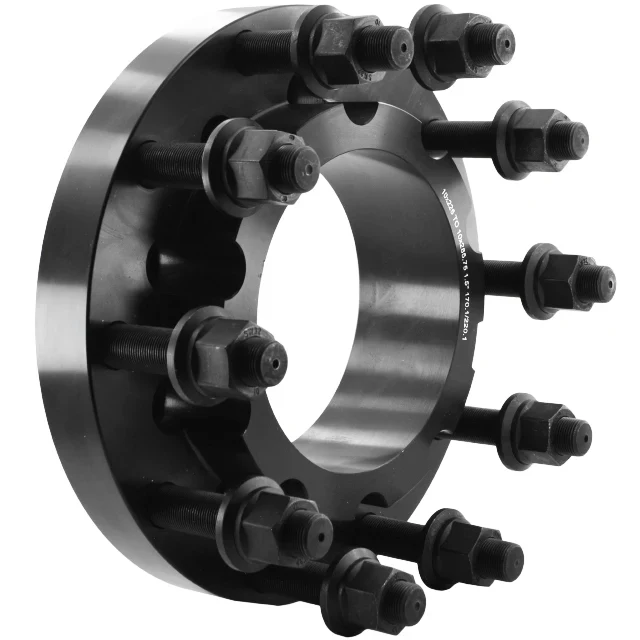

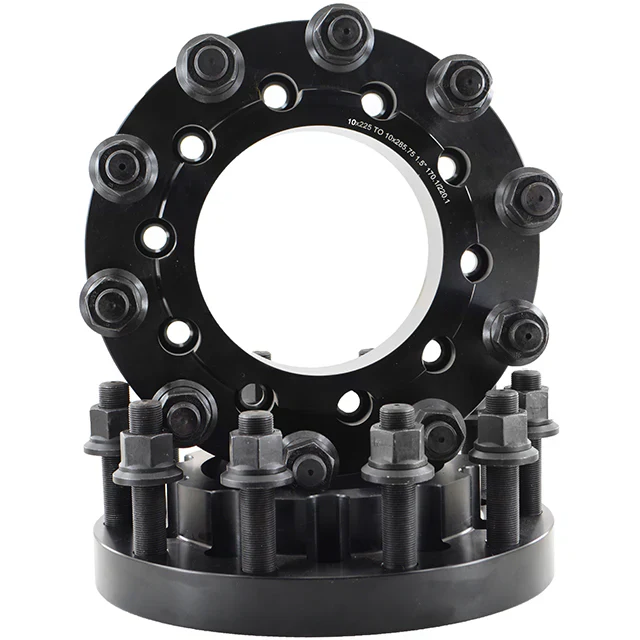

Ram 8x6.5" to 10x285.75 8 to 10 Lug Wheel Adapters Billet Aluminum

Upgrade your Ram truck to run true big rig wheels with these premium billet aluminum adapters from Venum Wheel. Precision-machined from USA-grade 6061 T-6 aluminum, these adapters are engineered for strength, durability, and reliability in demanding towing and hauling applications. The fully hub-centric design ensures proper load distribution and eliminates vibration, even at highway speeds.

Designed for compatibility with Alcoa and aftermarket wheels, these adapters allow you to safely run 22.5" and 24.5" wheel setups while enhancing both performance and appearance. Built for extreme-duty use and tested under heavy loads, they deliver the confidence needed for work or show applications.

Key Features:

• Made from USA-grade 6061 T-6 billet aluminum

• Converts 8x6.5" bolt pattern to 10x285.75mm (big rig pattern)

• Fully hub-centric design eliminates vibration at high speeds

• Compatible with Alcoa and aftermarket wheels

• Allows use of 22.5" and 24.5" wheels

• Improves vehicle handling and stability

• Enhances appearance with a more aggressive stance

• Engineered for extreme-duty use and safe towing

• Tested with towing loads up to 36,000 lbs

• Installation hardware included

Specifications:

• Vehicle Bolt Pattern: 8x6.5"

• Vehicle Hub Bore: 121.3mm

• Wheel Bolt Pattern: 10x285.75mm

• Wheel Bore: 220.1mm

• Thread Pitch: 22x1.5

• Thickness: 1.5"

• Front Wheel Lip: 0.50"

• Rear Wheel Lip: 1.5"

• Material: 6061 T-6 Billet Aluminum

• Hardware: 10.9 Steel

• Finish: Raw or Black (depending on availability)

• Torque Specs: Factory specs recommended

• Pressed-in studs and lug nuts included

Notes:

• This product is made to order and may take up to 7 business days to ship

• New wheels being installed must be 10x285.75mm

Vehicle Fitment:

• 1994–2010 Dodge Ram 2500

• 1994–2010 Dodge Ram 3500 SRW

• 1994–2010 Dodge Ram 3500 Dually

• 2011 Ram 2500

• 2011 Ram 3500 SRW

• 2011 Ram 3500 Dually

• 2012–2021 Ram 2500

• 2012–2021 Ram 3500 SRW

• 2012–2018 Ram 3500 Dually

SKU: VW-HCA-8650/1028515AL-121.3/220.1-FRT+M22+3916
