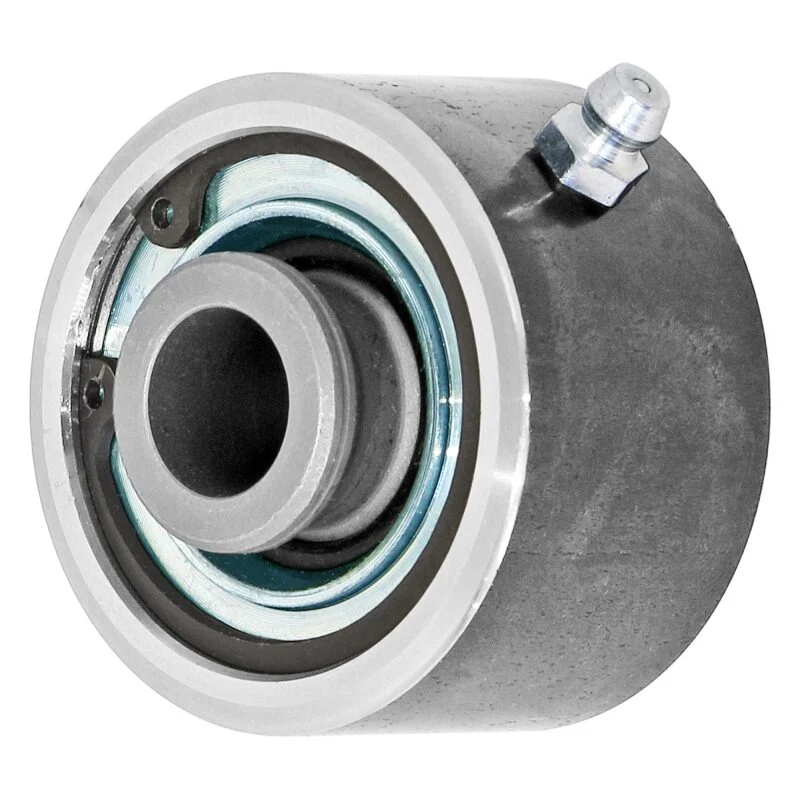

RockJock Johnny Joint 2in Narrow Rod End (1.600in x .562in w/ Safety Washer)
RockJocks narrow weld-on Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushing that encases the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. The outer shell is weldable .180 in. wall machined DOM tubing, fitted with a zerk fitting for greasing. This specific joint features a 2 in. o.d. narrow body, a safety washer installed on the snap ring side, a 1.600 in. mounting width and a .562 in. thru bolt hole.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
RockJock Johnny Joint 2in Narrow Rod End (1.600in x .562in w/ Safety Washer)
RockJock Johnny Joint 2in Narrow Rod End (1.600in x .562in w/ Safety Washer)
RockJocks narrow weld-on Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushing that encases the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. The outer shell is weldable .180 in. wall machined DOM tubing, fitted with a zerk fitting for greasing. This specific joint features a 2 in. o.d. narrow body, a safety washer installed on the snap ring side, a 1.600 in. mounting width and a .562 in. thru bolt hole.
$70.02
RockJock Johnny Joint 2in Narrow Rod End (1.600in x .562in w/ Safety Washer)ā
$70.02
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
RockJocks narrow weld-on Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushing that encases the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. The outer shell is weldable .180 in. wall machined DOM tubing, fitted with a zerk fitting for greasing. This specific joint features a 2 in. o.d. narrow body, a safety washer installed on the snap ring side, a 1.600 in. mounting width and a .562 in. thru bolt hole.
